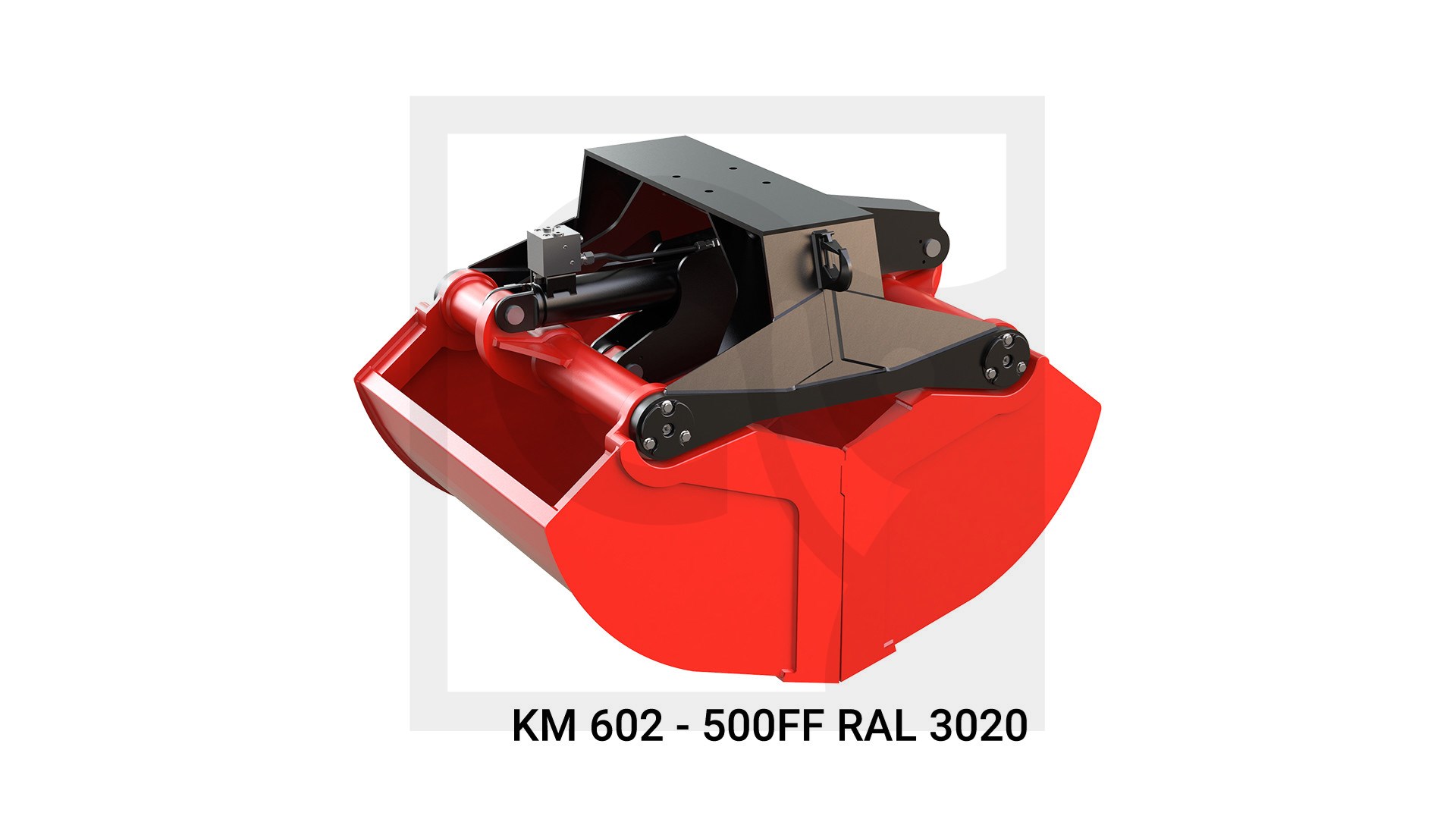

CUCHARA
- Número de material
- 3387631
- Línea de producto
- Accesorios
Descripción
Excellent filling characteristics of the rugged grapple due to the special shape of the buckets and the wide separation between their axes that enables wide opening.
Practically no “left overs“ of the material to be picked up as the working edges are vertical when the buckets are open and allow a deep plunge into a pile of material.
High stability through reinforced buckets, torsion-free frame, generously dimensioned bearing system and the use of 500 HB steel in the manufacture of cutting edges.
Combination of compensator mechanism and cylinder guard has many advantages: parallel action, longer life for piston rod and seals, significant weight savings.
Efficient handling with high closing forces (28 kN at an operating pressure of 26 MPa).
Detalles
- Ancho (mm)
- 800
- Apertura máxima
- 1830
- Fuerza de cierre
- 23
- Número de dientes
- 9
- Peso (kg)
- 425
- Volumen máximo (litros)
- 400
