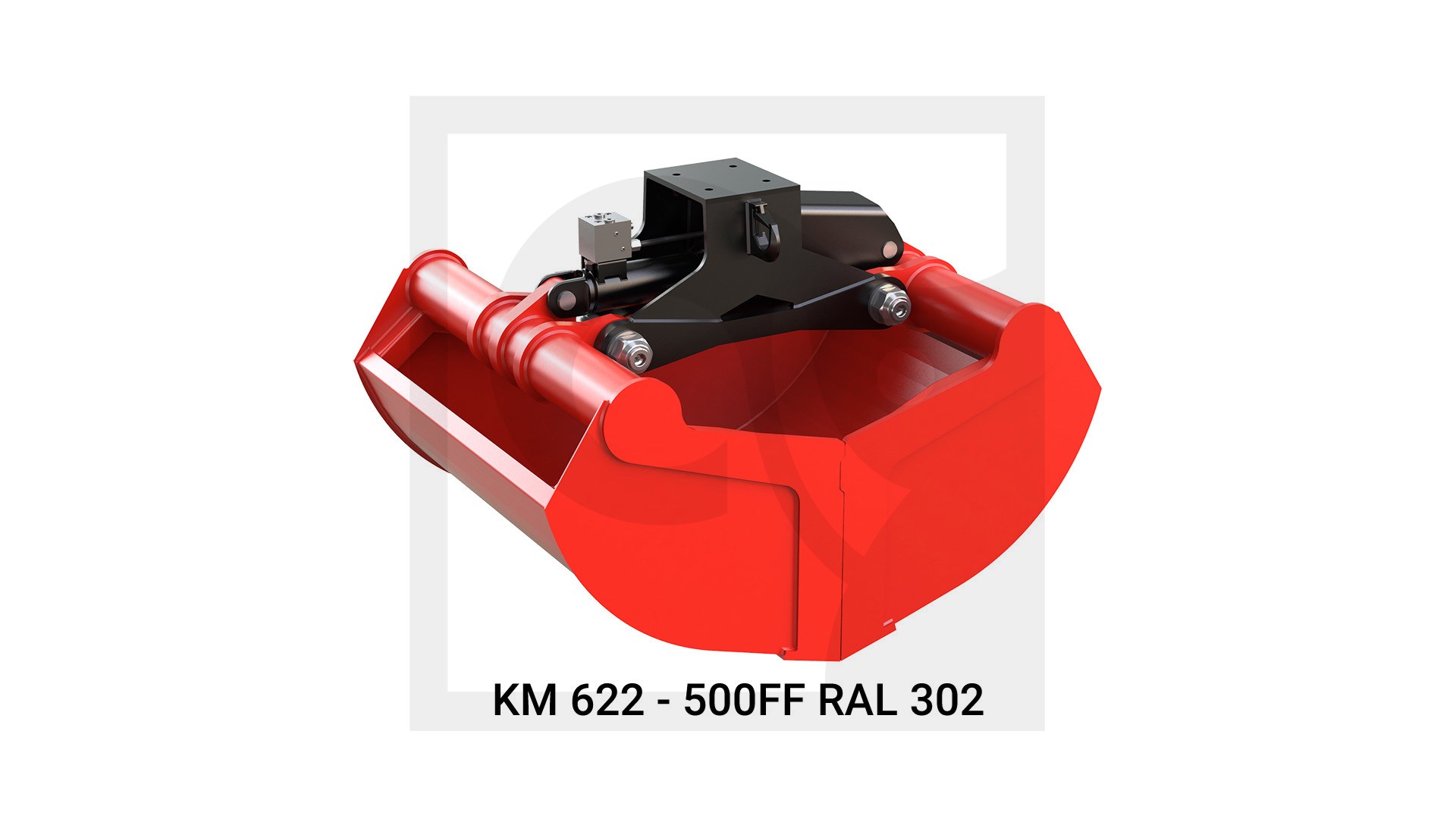

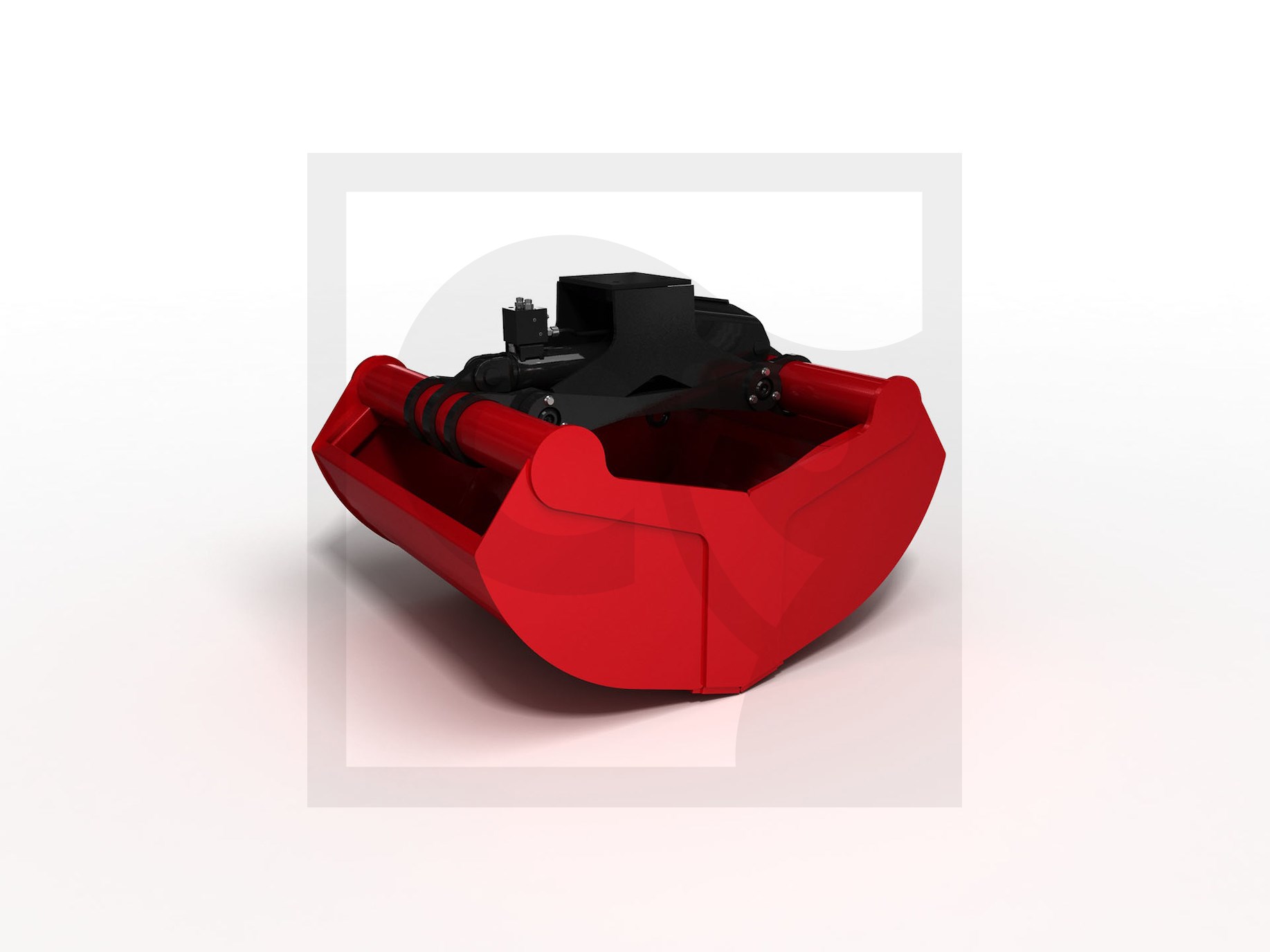

EMMER
- Artikelnummer
- 3387691
- Productlijn
- Accessoires
Omschrijving
Suitable for digging due to the narrow frame.
Compact design due to the narrow frame enables manual filling of the bucket without obstacles.
Practically no "left overs“ of the material to be picked up as the working edges are vertical when the buckets are open and allow a deep plunge into a pile of material.
High stability through reinforced buckets, torsion-free frame, generously dimensioned bearing system and the use of 500 HB steel in the manufacture of cutting edges.
Combination of compensator mechanism and cylinder guard has many advantages: parallel action, longer life for piston rod and seals, significant weight savings.
Efficient handling with high closing forces (KM 622:20 kN at 26 MPa / KM 622S: 29 kN at 24 MPa operating pressure).
Kenmerken
- Aantal tanden
- 9
- Breedte (mm)
- 1.000
- Gewicht (kg)
- 400
- Maximale opening
- 1670
- Maximale volume (liters)
- 500
- Sluitingskracht
- 20
