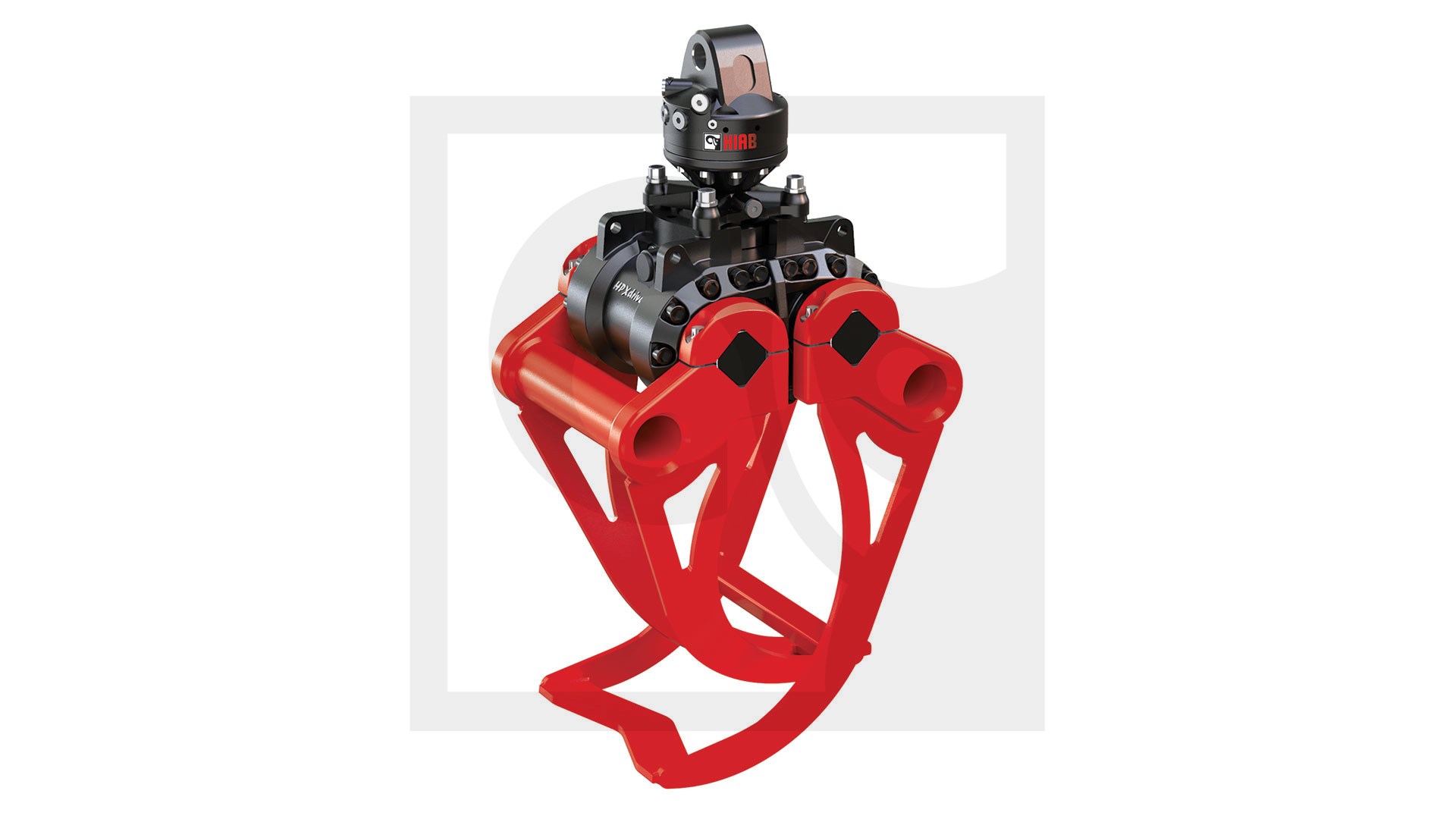

GRAPPLE KM 613 HPX-0.16 WF

Materialnummer
3382095
Produktlinje
Tilbehør

Beskrivelse

Reliability of the HPXdrive! The movement of the arms of the grapple is generated by two hollow shafts, which run opposed and have a helix thread, hydraulically driven by a single piston. No more hydraulic cylinders!

The drive unit runs in a permanent oil bath. The compact design makes the HPXdrive resistant to dirt and debris.

Versatility with different types of shells that can easily be refitted onto the driving unit.

Profitability through low maintenance costs and longer life cycle.

Precise handling with the gear-type Hiab rotator and shells synchronised by the single piston turning both shafts of the HPXdrive.

Rotator with shaft is available as an alternative, in case a quick change to a non-rotating hook is favoured.

Constant closing force (18 kN at 26 MPa operating pressure) over the entire opening and closing process.

Egenskaper

Bredde (mm)
400
Høyde (mm)
1 240
Lengde (mm)
550
Lukkekraft
18
Maks. vekt (kg)
1 000
Maks. volum (liter)
0,16
Tindespredning (mm)
1200
Vekt (kg)
210

Kjøp som pakke

  • KM 613 HPX 0.16 WF
    Varedelenr.
    3382095
    Bredde (mm)
    400
    Høyde (mm)
    1 240
    Lengde (mm)
    550
    Lukkekraft
    18
    Maks. vekt (kg)
    1 000
    Maks. volum (liter)
    0,16
    Tindespredning (mm)
    1200
    Vekt (kg)
    210
