BRICK STACK GRAPPLE KM 331 - 1100

Material number: 9854479
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Fixed plunge depth with pivot clamping arms - hydraulically operated.

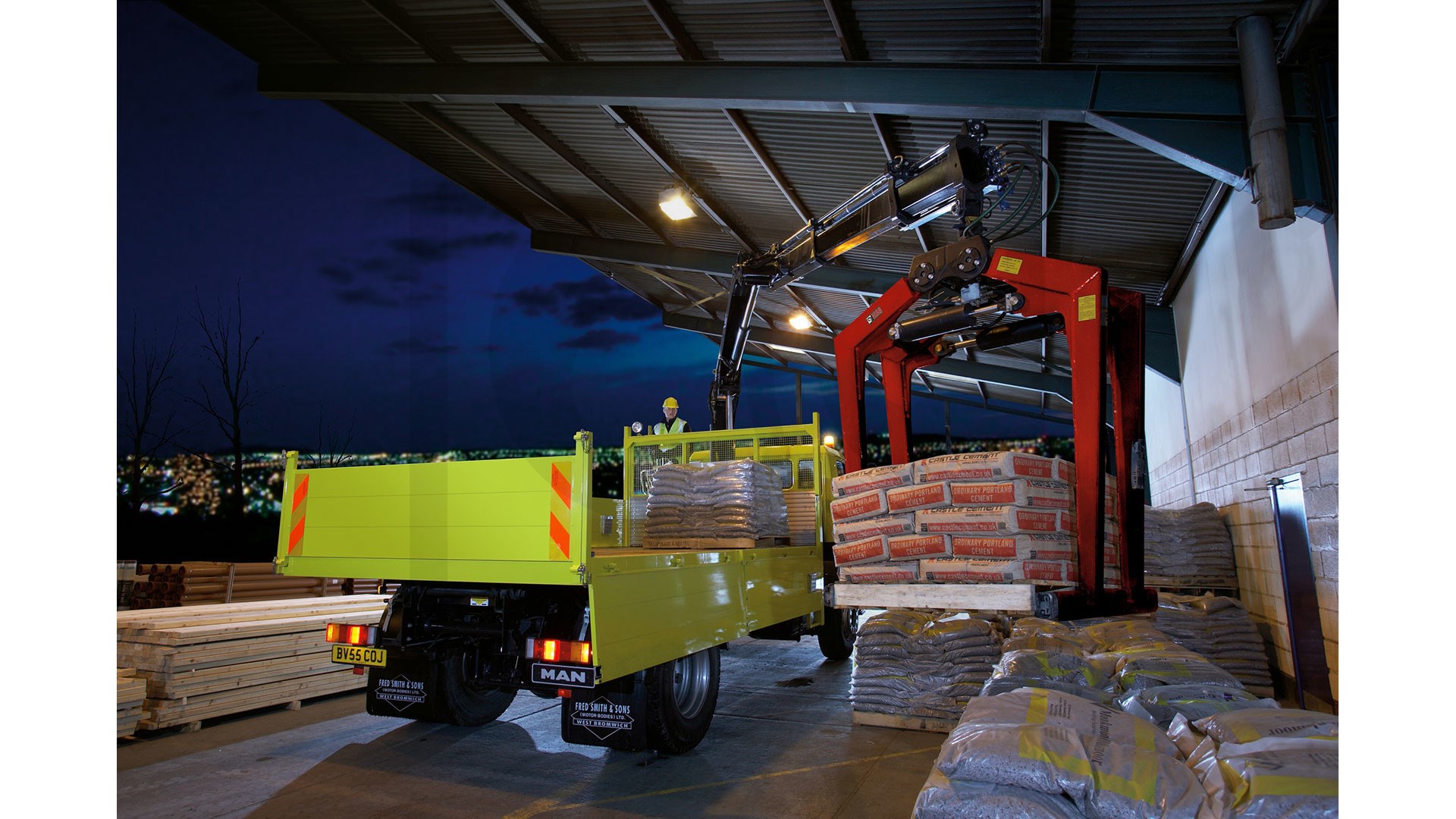

Versatile tool with opening range of 40 mm to 1500 mm i.e. for handling of single concrete products like curbstones, or handling of palletized brick packs.

Synchronised function of clamping arms due to sturdy gear-toothed quadrants.

Safety through internal pressure relief valve (independent from crane pressure) and holding valve (safe clamping force at pressure drop).

Reduced overall height in comparison to the plunge depth due to lower rotator position.

Compression rails with durable and replaceable rubber inserts.

Attributes

Height (mm): 1,555
Item Attachment Dimension: o 4 x 140 MM
Max Load (kg): 2,000
Opening Max: 160 - 1450
Plunge Depth: 1,100
Weight (kg): 260
Width (mm): 500

Downloads

KM 331 ME_MD_1.pdf

Model specifications

Brick grabs
Item Part No
Height (mm)
Item Attachment Dimension
Max Load (kg)
Opening Max
Plunge Depth
Weight (kg)
Width (mm)
Detail

Brick grabs	KM331-1000	KM331 - 1100	KM331 - 1200	KM331 - 1300
Item Part No	9854461	9854479	9854487	9854495
Height (mm)	1,455	1,555	1,655	1,755
Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM
Max Load (kg)	2,000	2,000	1,800	1,600
Opening Max	220 - 1420	160 - 1450	100 - 1475	40 - 1500
Plunge Depth	1,000	1,100	1,200	1,300
Weight (kg)	255	260	265	270
Width (mm)	500	500	500	500
Detail	Variant detail	Current variant	Variant detail	Variant detail
