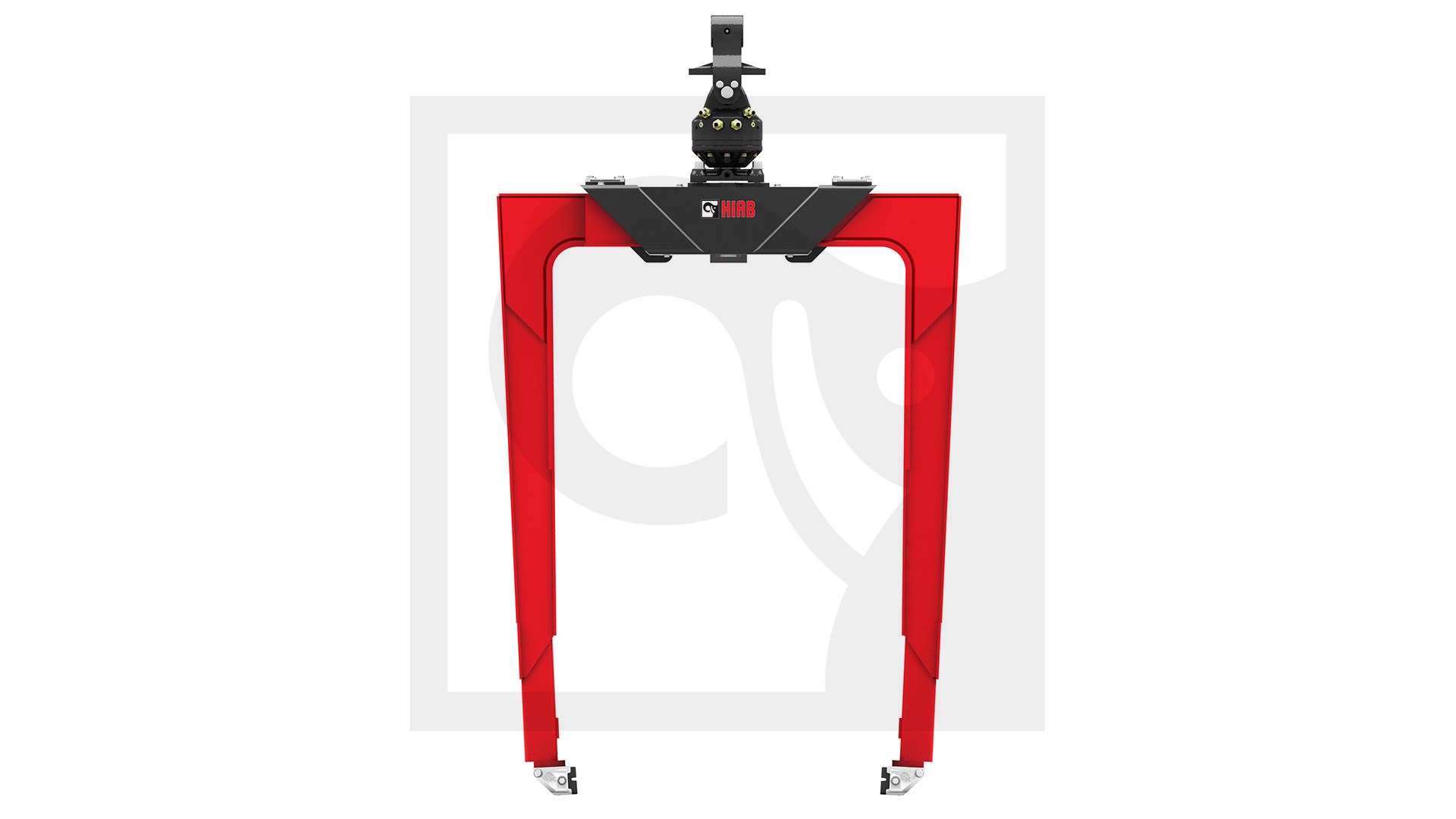

BRICK STACK GRAPPLE KM 332 - 1000

Material number: 9854517
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab accessories are designed to help you to perform your daily job faster and easier.

Attributes

Height (mm): 1,215
Max Load (kg): 2,000
Opening Max: 400 - 1400
Plunge Depth: 1,000
Weight (kg): 250

Downloads

KM332 ME_MD_1.pdf

Model specifications

Brick grabs	KM332 - 850	KM332 - 1000	KM332 - 1300	KM332V - 1100	KM332V - 1100U
Item Part No	9854509	9854517	9854525	9854533	466-5677
Height (mm)	1,065	1,215	1,515	1,865	2,400
Max Load (kg)	2,200	2,000	1,600	1,900	1,900
Opening Max	1400	400 - 1400	400-1400	400-1400	400 - 1400
Plunge Depth	850	1,000	1,300	1,650	1,650
Weight (kg)	240	250	260	295	430
Detail	Variant detail	Current variant	Variant detail	Variant detail	Variant detail
