BUCKET KM 602-1000 WS 3387666 - Loader accessories (grapples/f

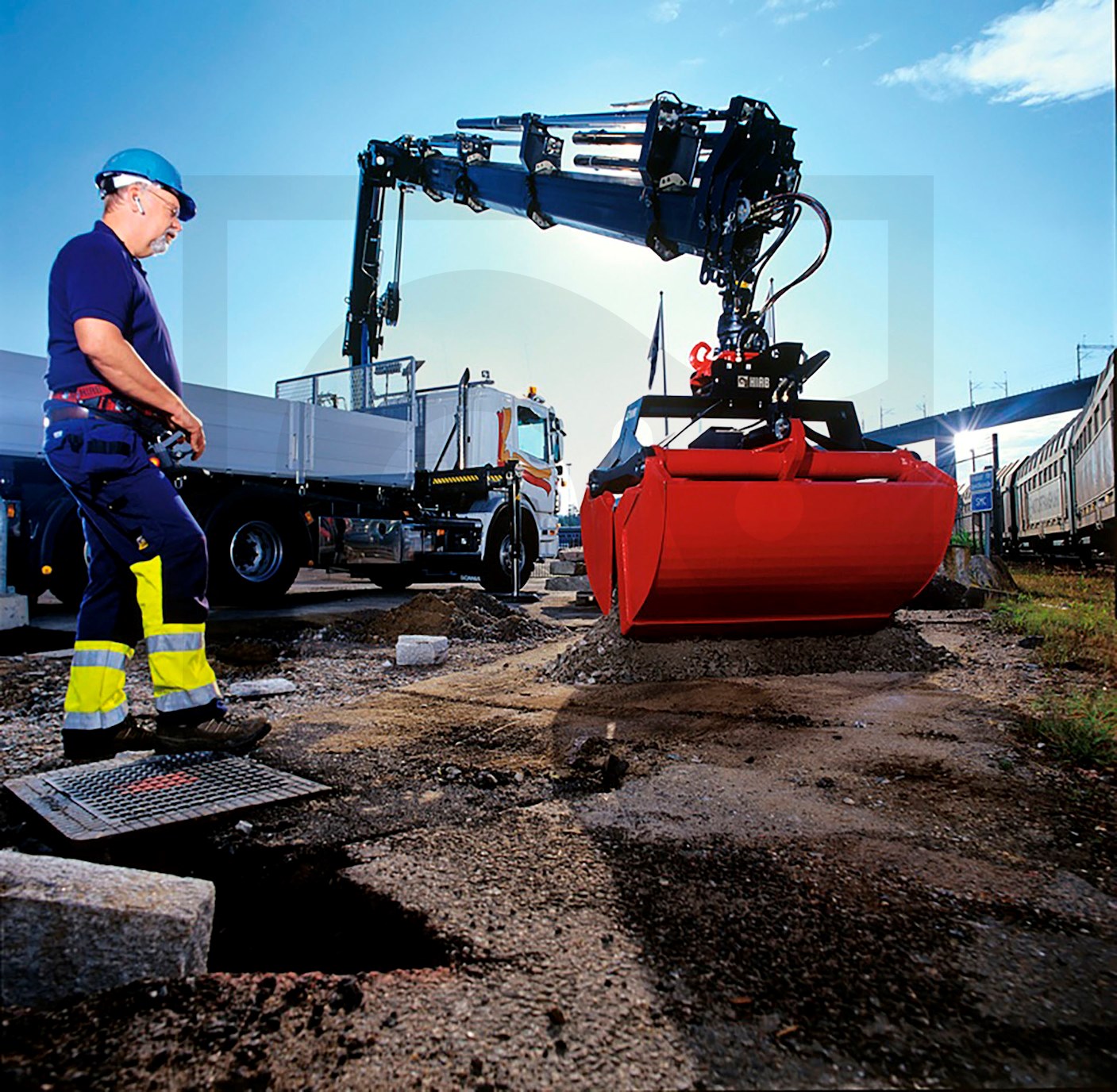

Description

Excellent filling characteristics of the rugged grapple due to the special shape of the buckets and the wide separation between their axes that enables wide opening.

Practically no “left overs“ of the material to be picked up as the working edges are vertical when the buckets are open and allow a deep plunge into a pile of material.

High stability through reinforced buckets, torsion-free frame, generously dimensioned bearing system and the use of 500 HB steel in the manufacture of cutting edges.

Combination of compensator mechanism and cylinder guard has many advantages: parallel action, longer life for piston rod and seals, significant weight savings.

Efficient handling with high closing forces (28 kN at an operating pressure of 26 MPa).

Attributes

Closing Force: 23
Number Of Teeth: 9
Opening Max: 2190
Volume Max (liters): 1,000
Weight (kg): 585
Width (mm): 1,200

Downloads

KM 602 ME_MD_1.pdf

Model specifications

Clamshell buckets
Item Part No
Closing Force
Max oil flow
Max Oil Pressure
Max Oil Pressure (MPa)
Number Of Teeth
Opening Max
Volume Max (liters)
Weight (kg)
Width (mm)
Detail

Clamshell buckets	KM602-300	KM602-400	KM602-500	KM602-650	KM602-1000
Item Part No	9854053	9854061	9854070	9854088	9854096
Closing Force	28	28	28	28	23
Max oil flow	40
Max Oil Pressure	26
Max Oil Pressure (MPa)	37
Number Of Teeth	5	9	9	9	9
Opening Max	1830	1830	1830	1830	2190
Volume Max (liters)	300	400	500	650	1,000
Weight (kg)	360	425	465	515	585
Width (mm)	500	800	1,000	1,200	1,200
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail

Buy as package


Item Part No
Closing Force
Number Of Teeth
Opening Max
Volume Max (liters)
Weight (kg)
Width (mm)
Detail

	KM602-300 WF	KM602-300 WS	KM602-400 WF	KM602-400 WS	KM602-500 WF	KM602-500WS	KM602-650 WF	KM602-650 WS	KM602-1000 WF	KM602-1000 WS
Item Part No	3380050	3387623	3380068	3387631	3380076	3387640	3380084	3387658	3380092	3387666
Closing Force	23	23	28	23	28	23	28	23	28	23
Number Of Teeth	9	9	9	9	9	9	9	9	9	9
Opening Max	1830	1830	1830	1830	1830	1830	1830	1830	1830	2190
Volume Max (liters)	300	300	400	400	500	500	650	650	1,000	1,000
Weight (kg)	455	360	490	425	535	465	595	515	725	585
Width (mm)	500	500	800	800	1,000	1,000	1,200	1,200	1,200	1,200
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Current variant


Item Part No
Closing Force
Drive Type
Load Height Max
Max Load (kg)
Number Of Teeth
Opening Max
Volume Max (liters)
Weight (kg)
Width (mm)
Detail

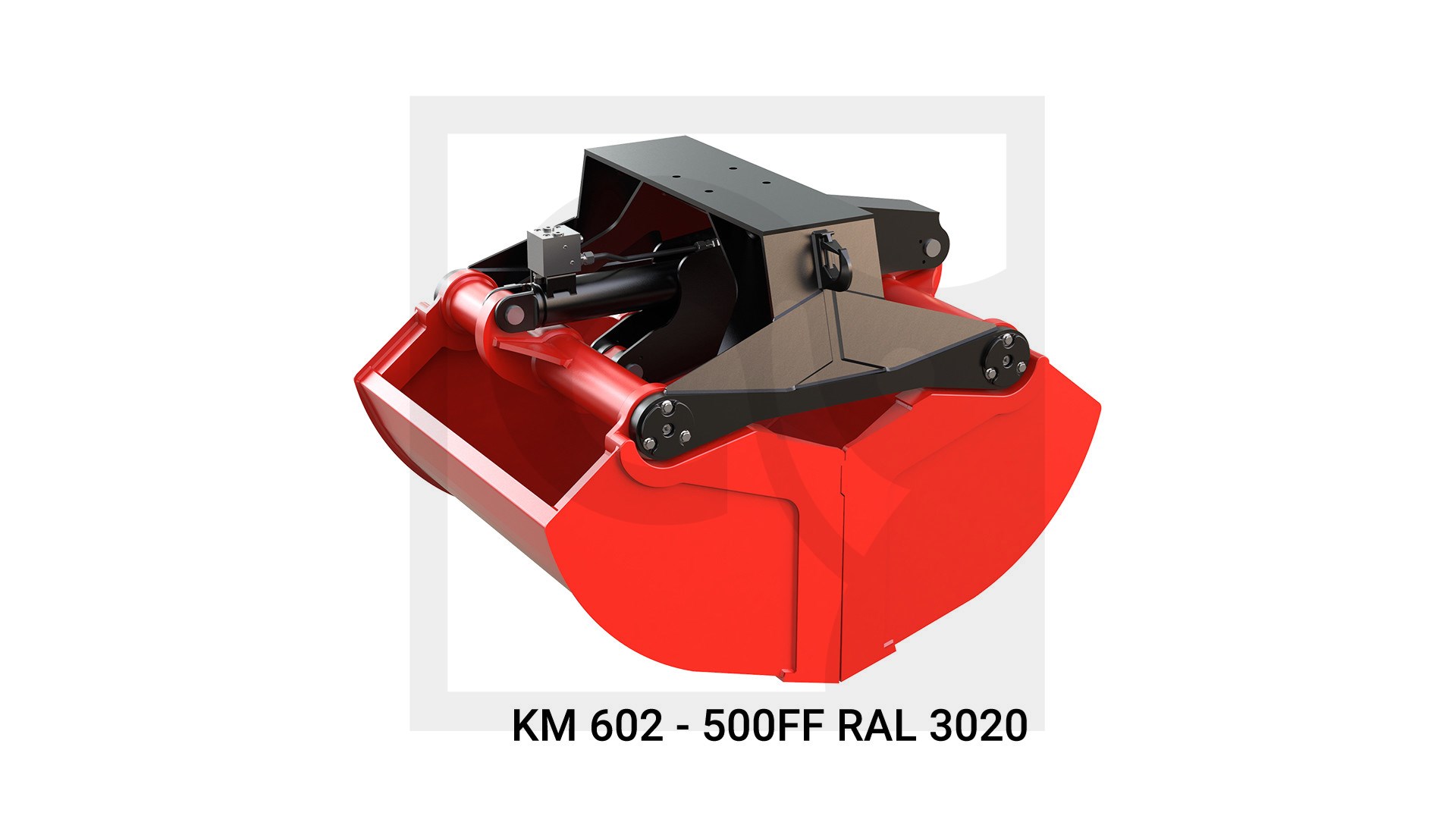

	KM 602 - 500 FF - RAL3020
Item Part No	462-1047
Closing Force	20
Drive Type	cylinder
Load Height Max	970
Max Load (kg)	3,000
Number Of Teeth	9
Opening Max	1830
Volume Max (liters)	500
Weight (kg)	465
Width (mm)	1,000
Detail	Variant detail
