BUCKET
- Material number
- 3381838
- Product line
- Accessories
Description

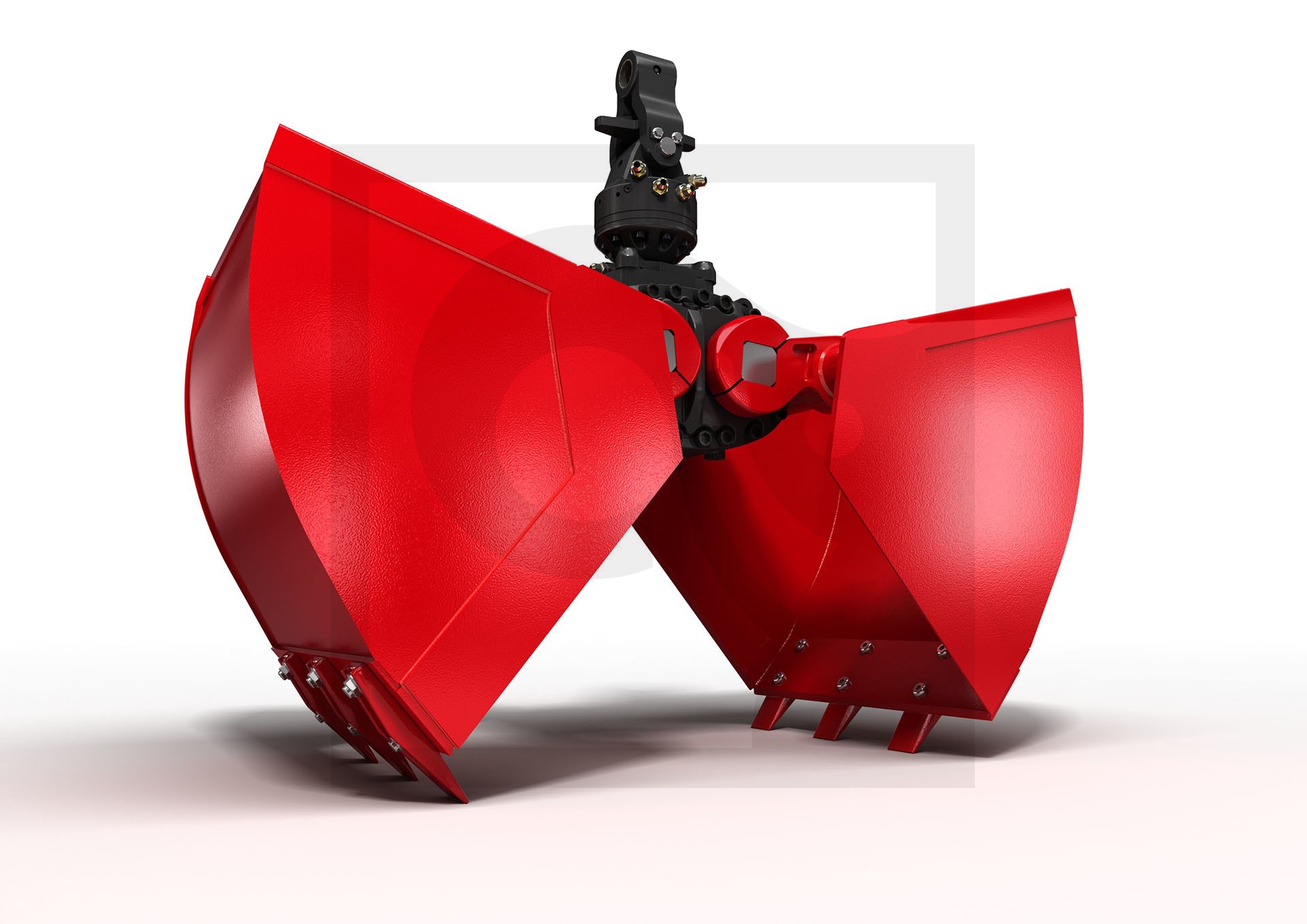

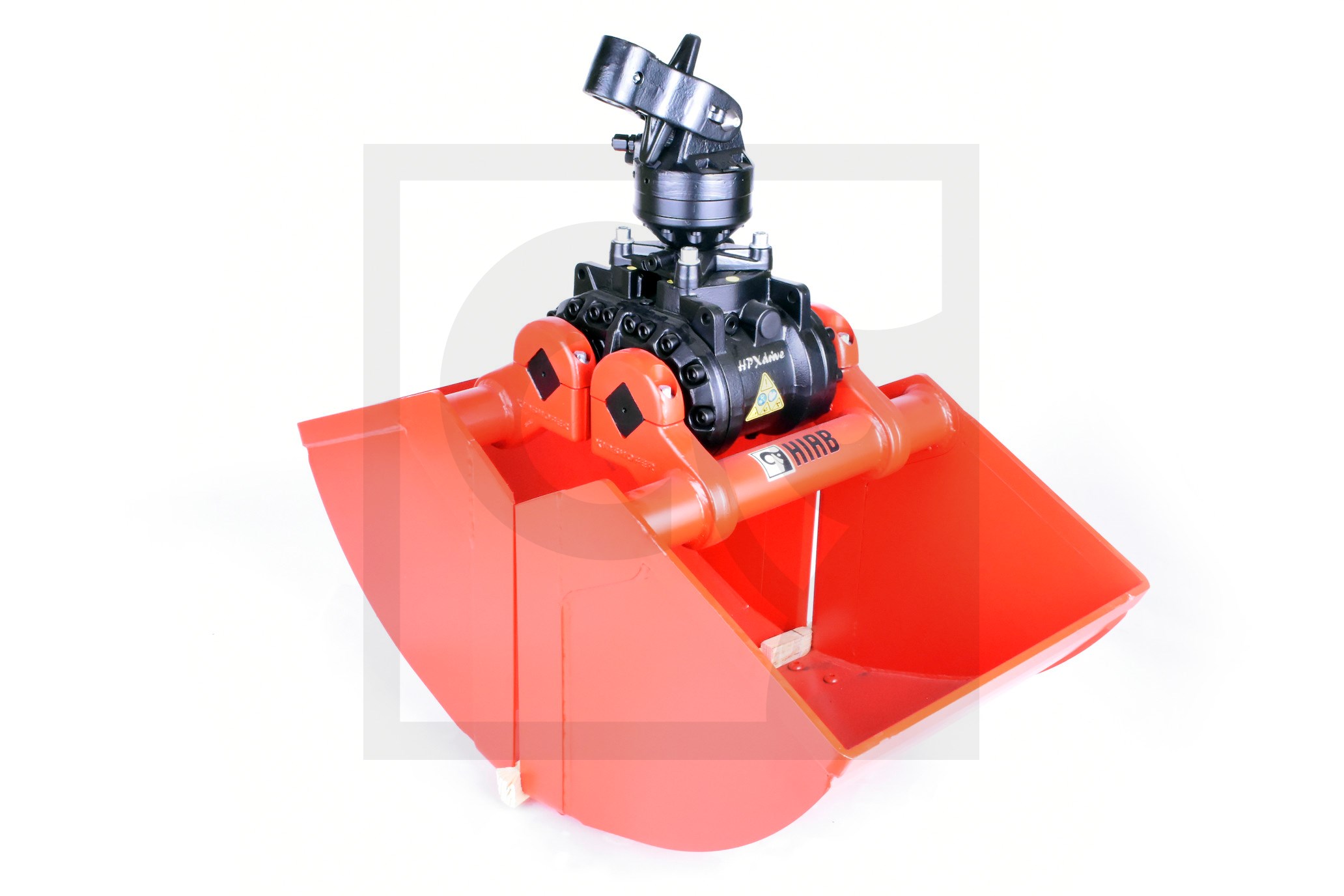

Reliability of the HPXdrive! The movement of the arms of the grapple is generated by two hollow shafts, which run opposed and have a helix thread, hydraulically driven by a single piston. No more hydraulic cylinders!
Longer life cycle up to 50%! Self-lubrication: The drive unit runs in a permanent oil bath. The compact design makes the HPXdrive resistant to dirt and debris.
Versatility by different types of shells that can easily be refitted onto the unit.
Profitability through low maintenance costs and longer life cycle.
Precise handling with the gear-type Hiab rotator and shells synchronised by the single piston turning both shafts of the HPXdrive.
Rotator with shaft is available as an alternative, in case a quick change to a non-rotating hook is favoured.
Constant closing force (19 kN at 26 MPa operating pressure) over the entire opening and closing process.
Attributes
- Closing Force
- 19
- Height (mm)
- 1,020
- Number Of Teeth
- 6
- Opening Max
- 1390
- Volume Max (liters)
- 350
- Weight (kg)
- 325
- Width (mm)
- 650
