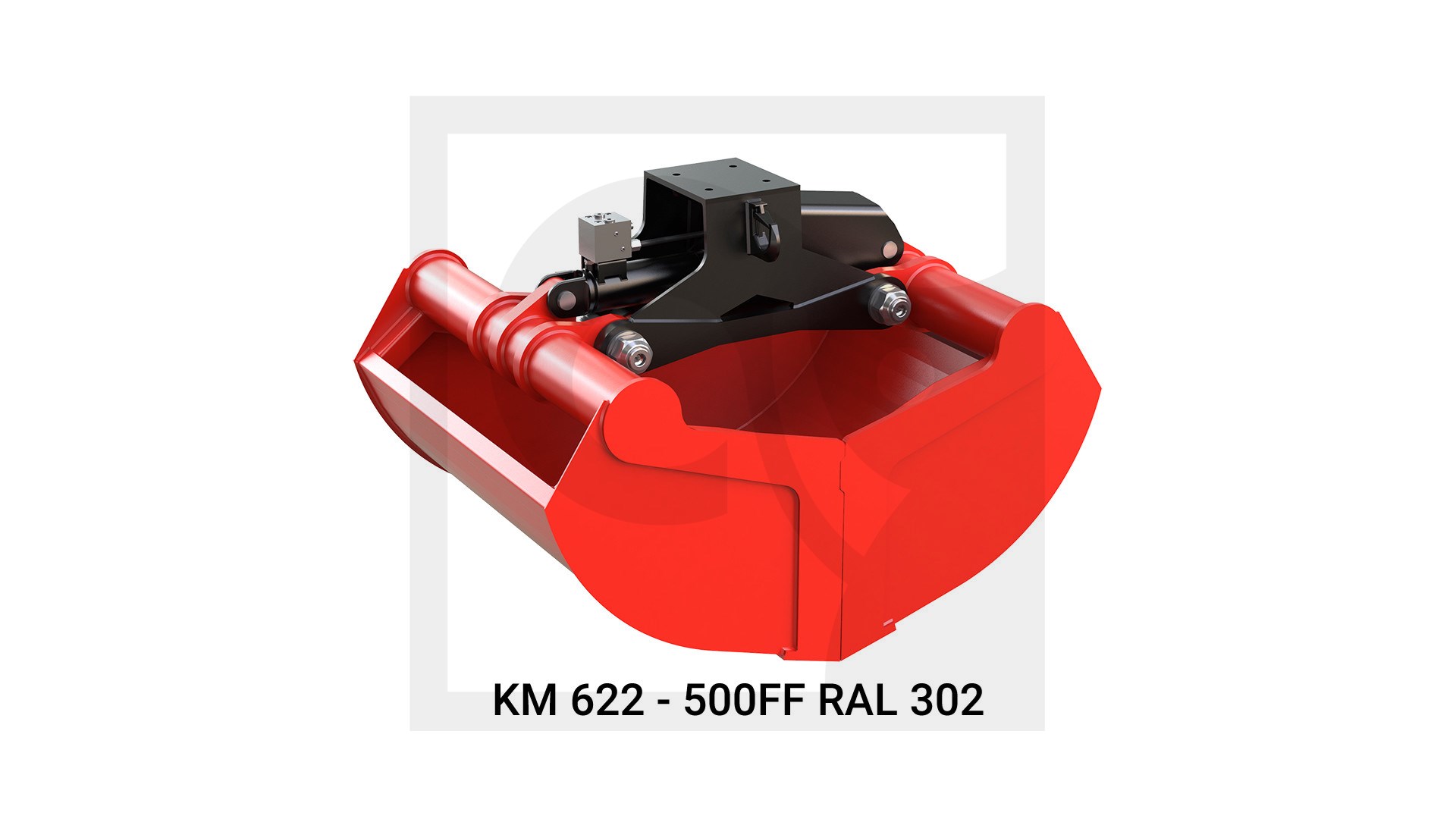

CLAMSHELL BUCKET RAL3020

Material number: 462-1046
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Suitable for digging due to the narrow frame.

Compact design due to the narrow frame enables manual filling of the bucket without obstacles.

Practically no "left overs“ of the material to be picked up as the working edges are vertical when the buckets are open and allow a deep plunge into a pile of material.

High stability through reinforced buckets, torsion-free frame, generously dimensioned bearing system and the use of 500 HB steel in the manufacture of cutting edges.

Combination of compensator mechanism and cylinder guard has many advantages: parallel action, longer life for piston rod and seals, significant weight savings.

Efficient handling with high closing forces (KM 622:20 kN at 26 MPa / KM 622S: 29 kN at 24 MPa operating pressure).

Additional information

RAL3020 - HIAB red

Attributes

Closing Force: 20
Drive Type: cylinder
Load Height Max: 925
Max Load (kg): 3,000
Number Of Teeth: 9
Opening Max: 1670
Volume Max (liters): 500
Weight (kg): 360
Width (mm): 1,000

Downloads

KM 622 ME_MD_1.pdf

Model specifications

Clamshell buckets
Item Part No
Closing Force
Number Of Teeth
Opening Max
Volume Max (liters)
Weight (kg)
Width (mm)
Detail

Clamshell buckets	KM622-300	KM622-400	KM622-500
Item Part No	9854134	9854142	9854151
Closing Force	20	20	20
Number Of Teeth	5	9	9
Opening Max	1670	1670	1670
Volume Max (liters)	300	400	500
Weight (kg)	315	345	370
Width (mm)	640	800	1,000
Detail	Variant detail	Variant detail	Variant detail

Buy as package


Item Part No
Closing Force
Number Of Teeth
Opening Max
Volume Max (liters)
Weight (kg)
Width (mm)
Detail

	KM622-300 WF	KM622-300 WS	KM622-400 WF	KM622-400 WS	KM622-500 WF	KM622-500 WS
Item Part No	3380106	3387674	3380114	3387682	3380122	3387691
Closing Force	20	20	20	20	20	20
Number Of Teeth	9	9	9	9	9	9
Opening Max	1670	1670	1670	1670	1670	1670
Volume Max (liters)	300	300	400	400	500	500
Weight (kg)	360	375	390	385	415	400
Width (mm)	640	640	800	800	1,000	1,000
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail


Item Part No
Closing Force
Drive Type
Load Height Max
Max Load (kg)
Number Of Teeth
Opening Max
Volume Max (liters)
Weight (kg)
Width (mm)
Detail

	KM622 - 500 FF - RAL3020
Item Part No	462-1046
Closing Force	20
Drive Type	cylinder
Load Height Max	925
Max Load (kg)	3,000
Number Of Teeth	9
Opening Max	1670
Volume Max (liters)	500
Weight (kg)	360
Width (mm)	1,000
Detail	Current variant
