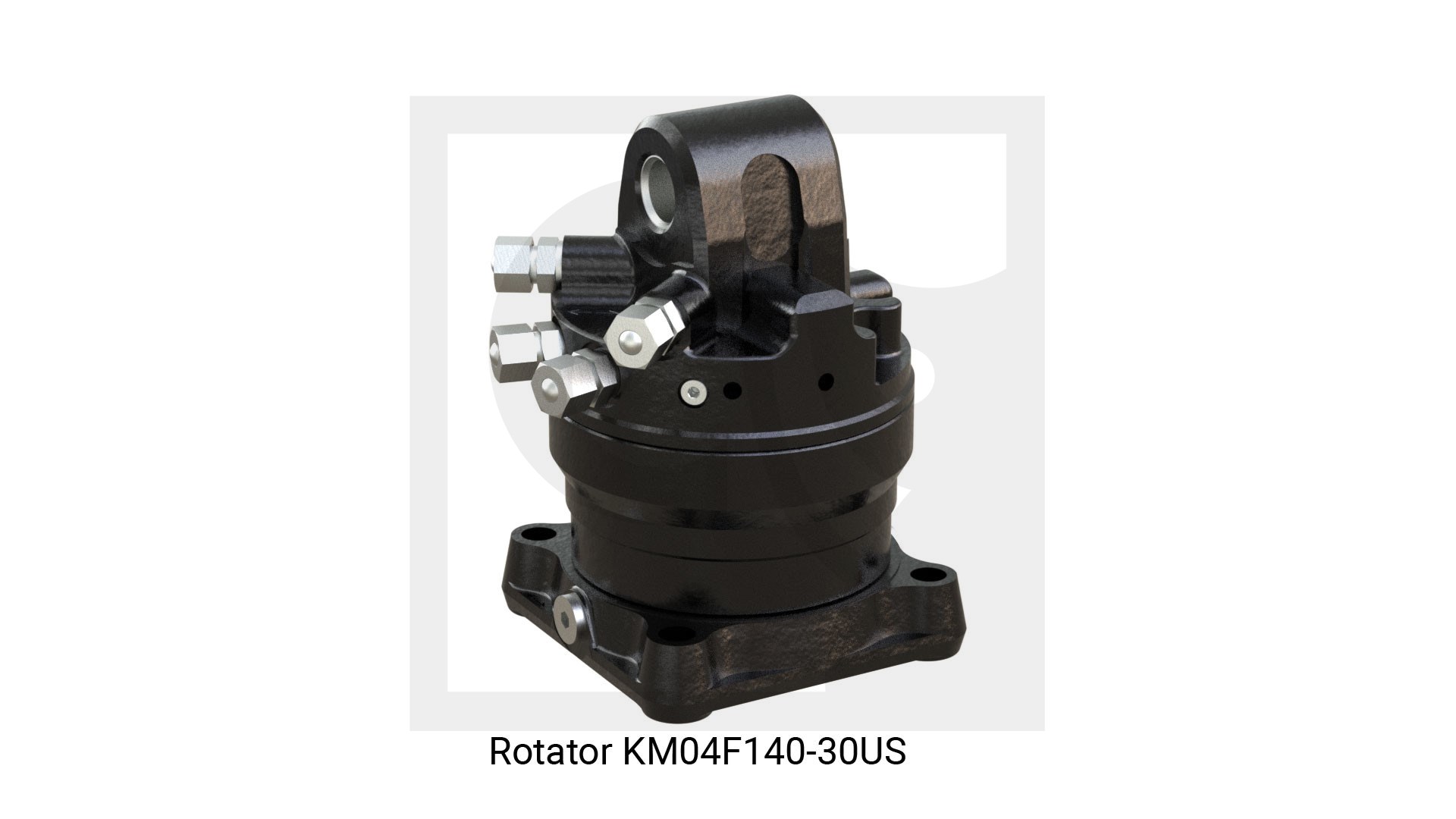

GEAR ROTATOR KM 04 F140-30US

Model specifications

Buy as package

• Package 1

  Package include rotator and short link KM 501S-4t with up to 4500kg load capacity.

  Item Part No
  Drive Type
  Height (mm)
  Item Attachment Dimension
  Item Attachment Type
  Max Load (kg)
  Torque
  Weight (kg)
  Width (mm)
  Detail

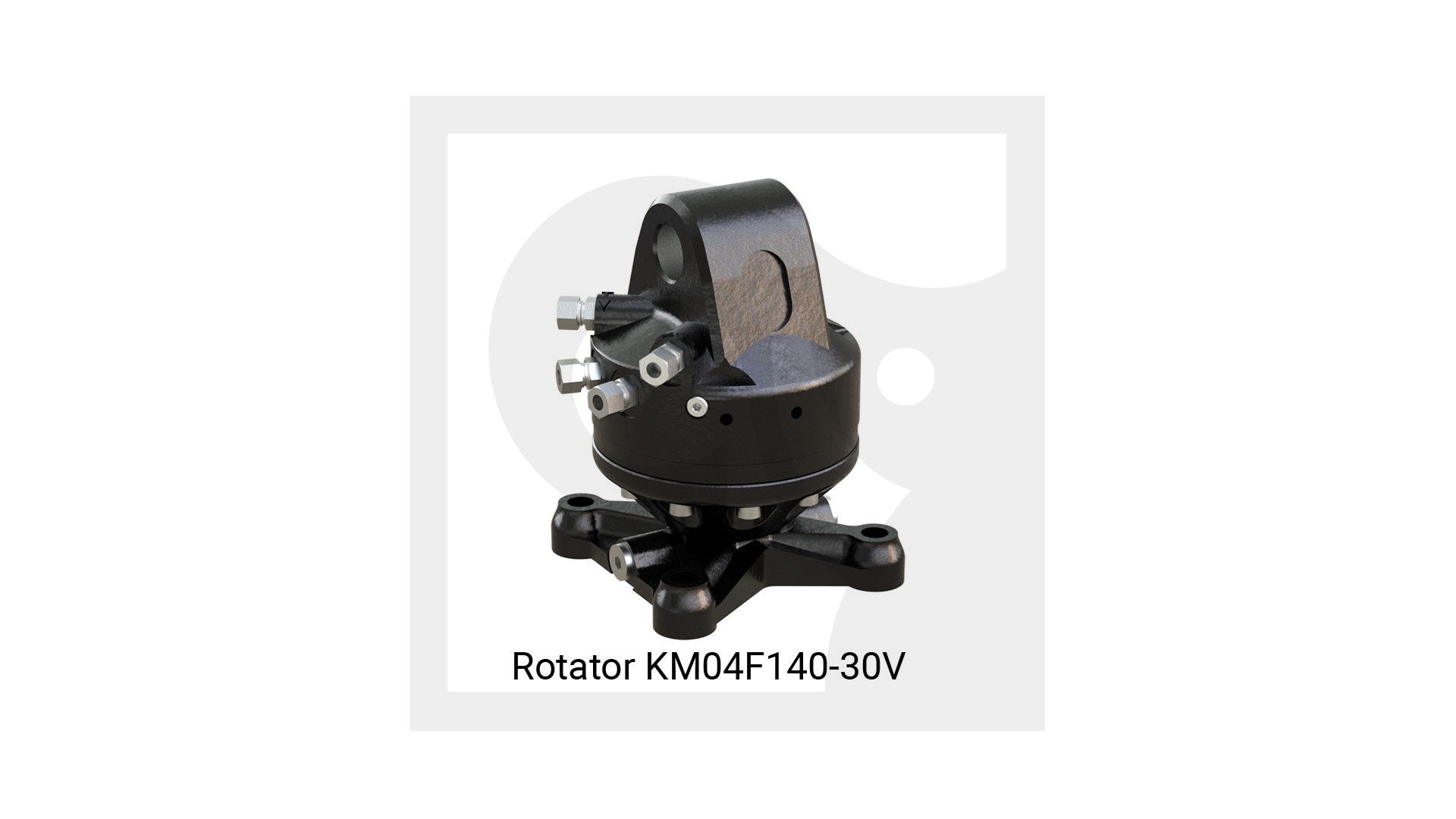

  	KM 04 - F140-30US WITH SHORT LINK	KM 04 - F140-30V WITH SHORT LINK	KM 04 - F WITH SHORT LINK	KM 04 - S59 WITH SHORT LINK	KM 04 - S62 WITH SHORT LINK	KM 04 - S63 WITH SHORT LINK	KM 04 - S68 WITH SHORT LINK	KM 04 - S69 WITH SHORT LINK
  Item Part No	3380327	3383539	3380033	3397271	3399621	3399622	3380041	3380602
  Drive Type	gear	gear	gear	gear	gear	gear	gear	gear

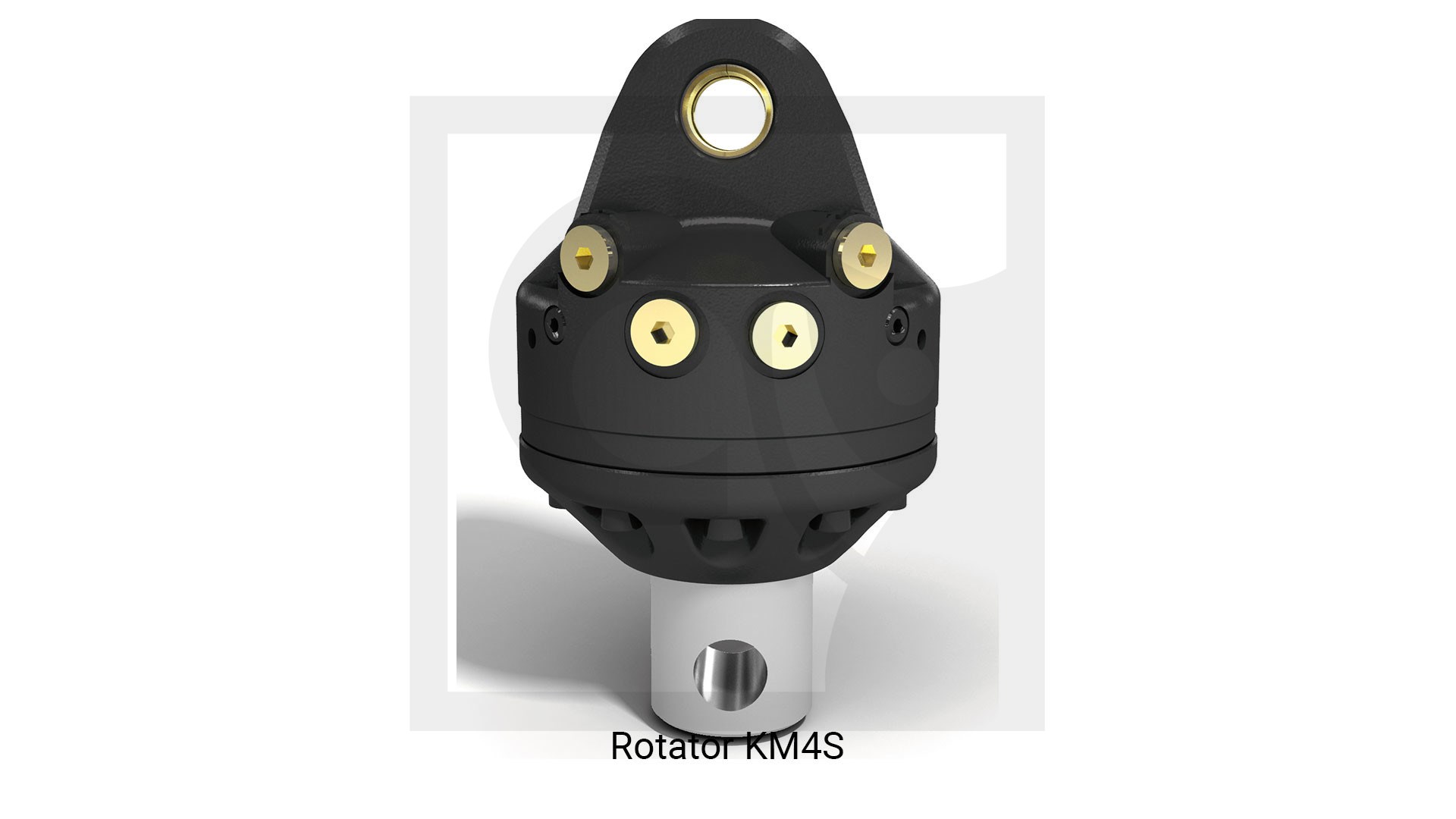

  Height (mm)	406	406	406	473	473	473	473	473
  Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM	Ø 59 MM	Ø 62 MM	Ø 63 MM	Ø 68 MM	Ø 69 MM
  Item Attachment Type	flange	flange	flange	shaft	shaft	shaft	shaft	shaft
  Max Load (kg)	4,500	4,500	4,500	4,500	4,500	4,500	4,500	4,500
  Torque	1,000	850	850	450	850	850	850	850
  Weight (kg)	27	36	27	27	27	27	27	27
  Width (mm)	173	173	173	173	173	173	173	173
  Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail
• Package 2

  Package include rotator and long link KM 501L-4t with up to 4500kg load capacity.

  Item Part No
  Drive Type
  Height (mm)
  Item Attachment Dimension
  Item Attachment Type
  Max Load (kg)
  Torque
  Weight (kg)
  Width (mm)
  Detail

  	F140-30V WITH LONG LINK	KM 04 - F140-30US WITH LONG LINK	KM 04 - F WITH LONG LINK	KM 04 - S68 WITH LONG LINK	KM 04 - S69 WITH LONG LINK
  Item Part No	3383547	3382338	3382320	3382346	3382354
  Drive Type	gear	gear	gear	gear	gear
  Height (mm)	496	496	496	563	563
  Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM	Ø 68 MM	Ø 69 MM
  Item Attachment Type	flange	flange	flange	shaft	shaft
  Max Load (kg)	4,500	4,500	4,500	4,500	4,500
  Torque	850	1,000	850	850	850
  Weight (kg)	38	27	27	27	27
  Width (mm)	173	173	173	173	173
  Detail	Variant detail	Current variant	Variant detail	Variant detail	Variant detail
• Package 3

  Package include rotator and short pendulum damper KM 511 S.

  Item Part No
  Drive Type
  Height (mm)
  Item Attachment Dimension
  Item Attachment Type
  Max Load (kg)
  Torque
  Weight (kg)
  Width (mm)
  Detail

  	KM 04 - F140-30US SHORT LINK W. DAMPER	KM 04 - F140-30V SHORT LINK W. DAMPER	KM 04 - S68 SHORT LINK W. DAMPER	KM 04 - S69 SHORT LINK W. DAMPER	KM 04 -F SHORT LINK W. DAMPER
  Item Part No	3393429	3393445	3393461	3393488	3393402
  Drive Type	gear	gear	gear	gear	gear
  Height (mm)	406	406	473	473	406
  Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	Ø 68 MM	Ø 69 MM	o 4 x 140 MM
  Item Attachment Type	flange	flange	shaft	shaft	flange
  Max Load (kg)	4,500	4,500	4,500	4,500	4,500
  Torque	1,000	850	450	850	850
  Weight (kg)	46	41	41	41	41
  Width (mm)	173	173	173	173	173
  Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail
• Package 4

  Package include rotator and long pendulum damper KM 511 L

  Item Part No
  Drive Type
  Height (mm)
  Item Attachment Dimension
  Item Attachment Type
  Max Load (kg)
  Torque
  Weight (kg)
  Width (mm)
  Detail

  	KM 04 - F140-30US LONG LINK W. DAMPER	KM 04 - F140-30V LONG LINK W. DAMPER	KM 04 - F LONG LINK W. DAMPER	KM 04 - S68 LONG LINK W. DAMPER	KM 04 - S69 LONG LINK W. DAMPER
  Item Part No	3393437	3393453	3393411	3393470	3393496
  Drive Type	gear	gear	gear	gear	gear
  Height (mm)	496	496	496	563	563
  Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM	Ø 68 MM	Ø 69 MM
  Item Attachment Type	flange	flange	flange	shaft	shaft
  Max Load (kg)	4,500	4,500	4,500	4,500	4,500
  Torque	1,000	850	850	850	850
  Weight (kg)	46	41	41	41	41
  Width (mm)	173	173	173	173	173
  Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail
