GEAR ROTATOR KM 04 S69 SHORT LINK W.DAMP

Material number: 3393488
Product line: Accessories

Accedi o registrati per acquistare questo prodotto

potrai accedere alle informazioni su prezzo e disponibilità. Inoltre, puoi verificare se il pezzo è compatibile con la tua macchina.

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab rotators are designed to ensure your Hiab product has the precision and performance you demand. They are optimised to ensure efficient hydraulic oil flow to power your equipment in all conditions.

Attributes

Drive Type: gear
Height (mm): 473
Item Attachment Dimension: Ø 69 MM
Item Attachment Type: shaft
Max Load (kg): 4,500
Torque: 850
Weight (kg): 41
Width (mm): 173

Model specifications

Rotators
Item Part No
Drive Type
Height (mm)
Item Attachment Dimension
Item Attachment Type
Max Load (kg)
Torque
Weight (kg)
Width (mm)
Detail

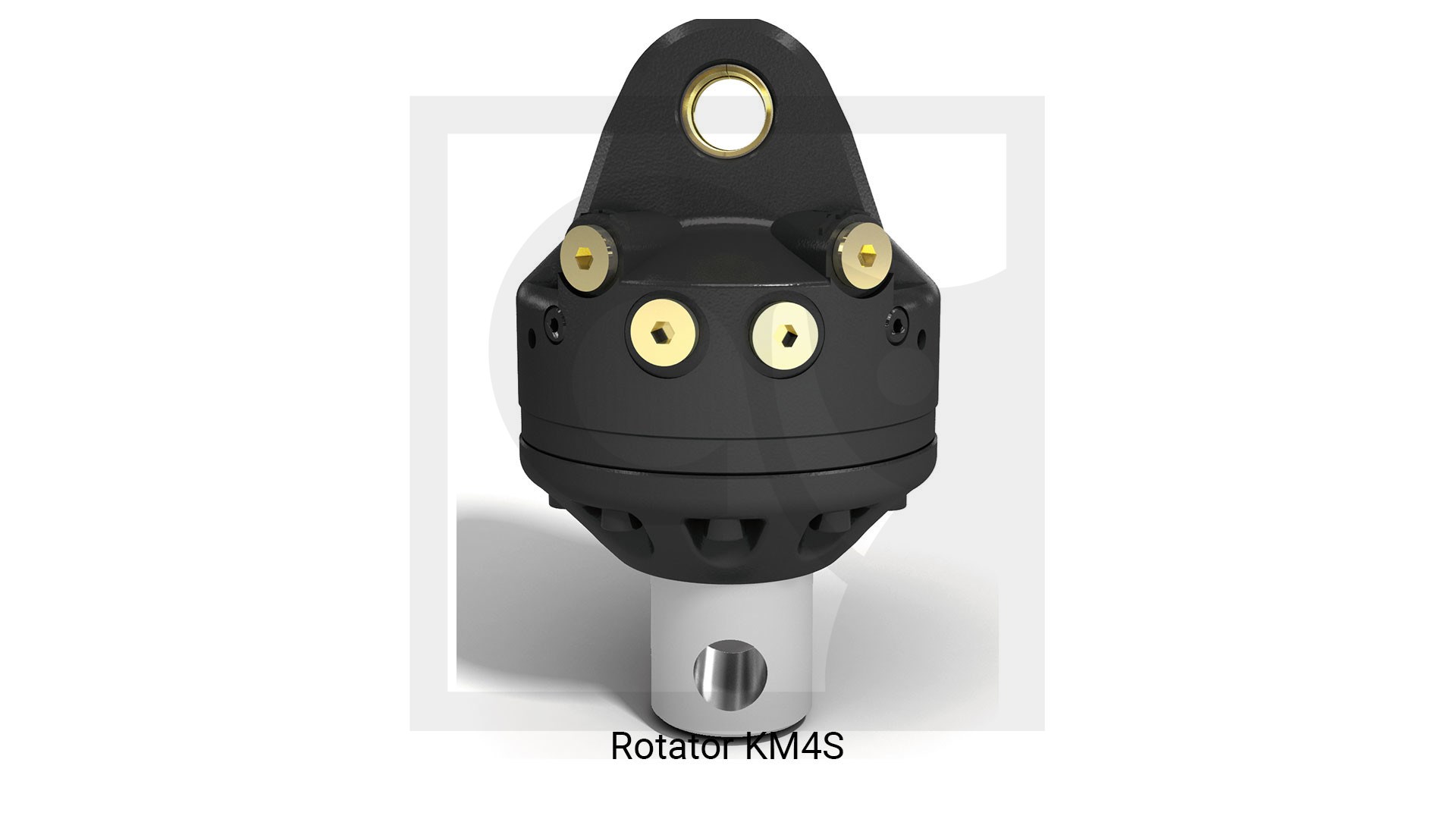

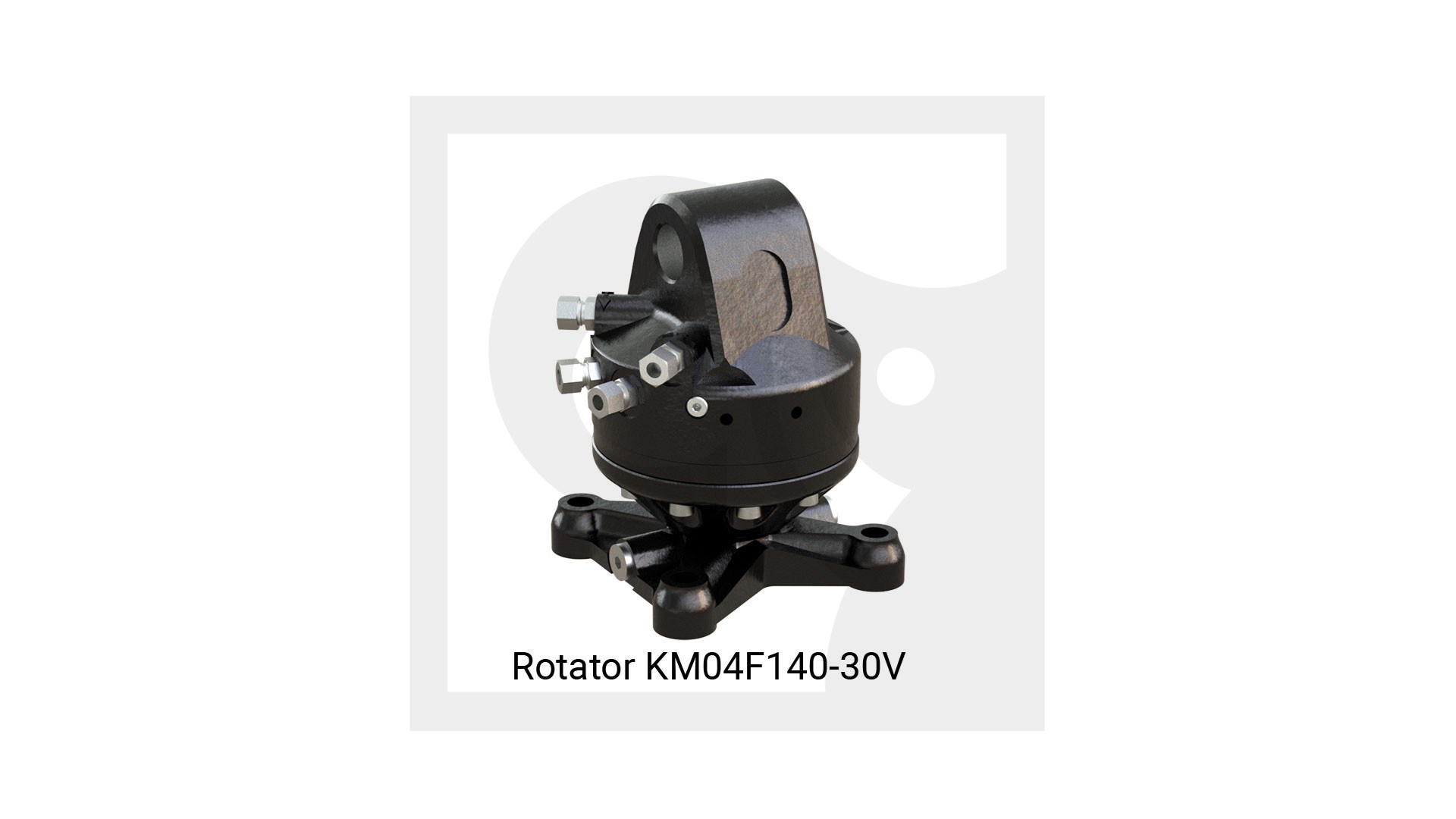

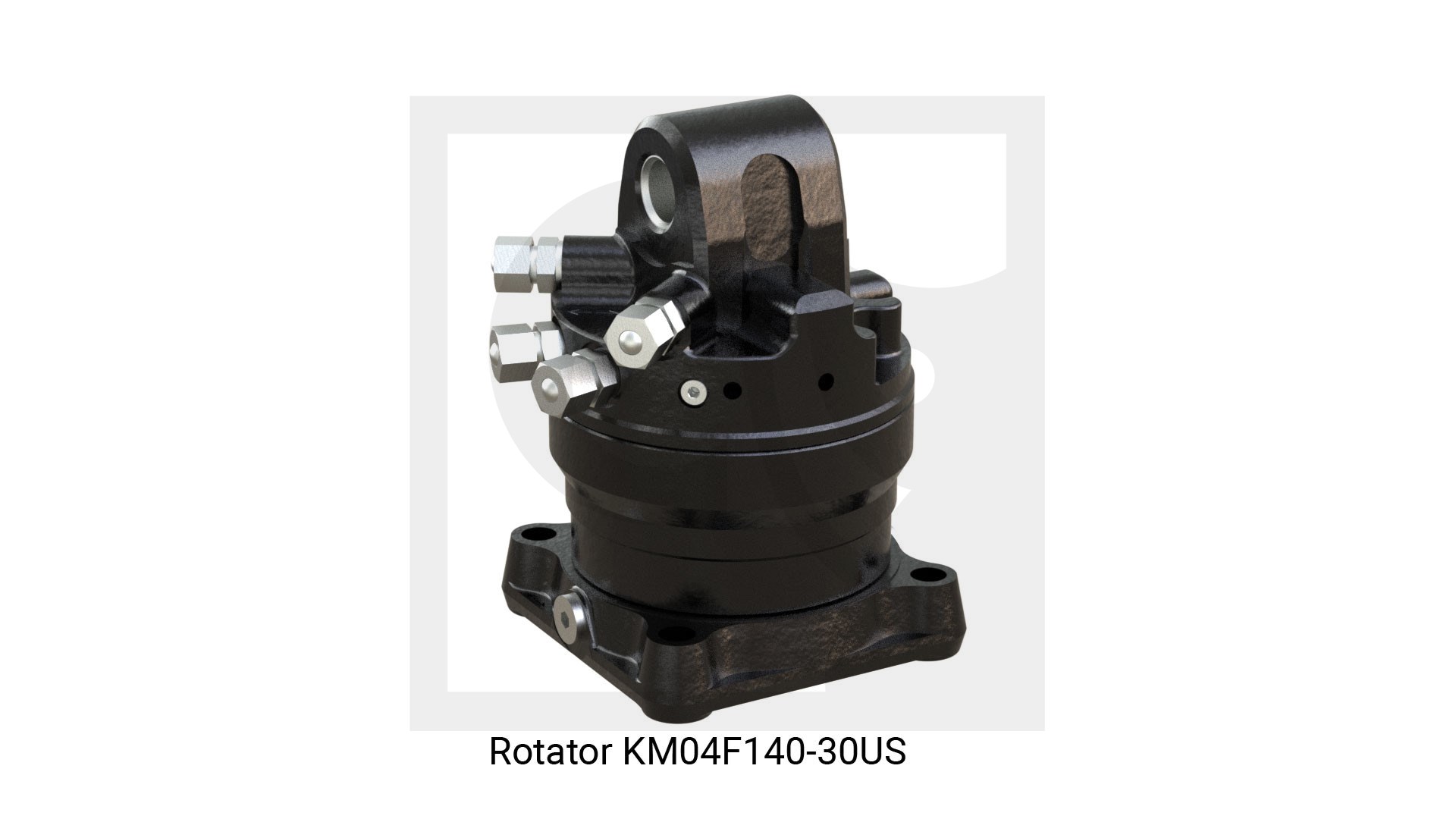

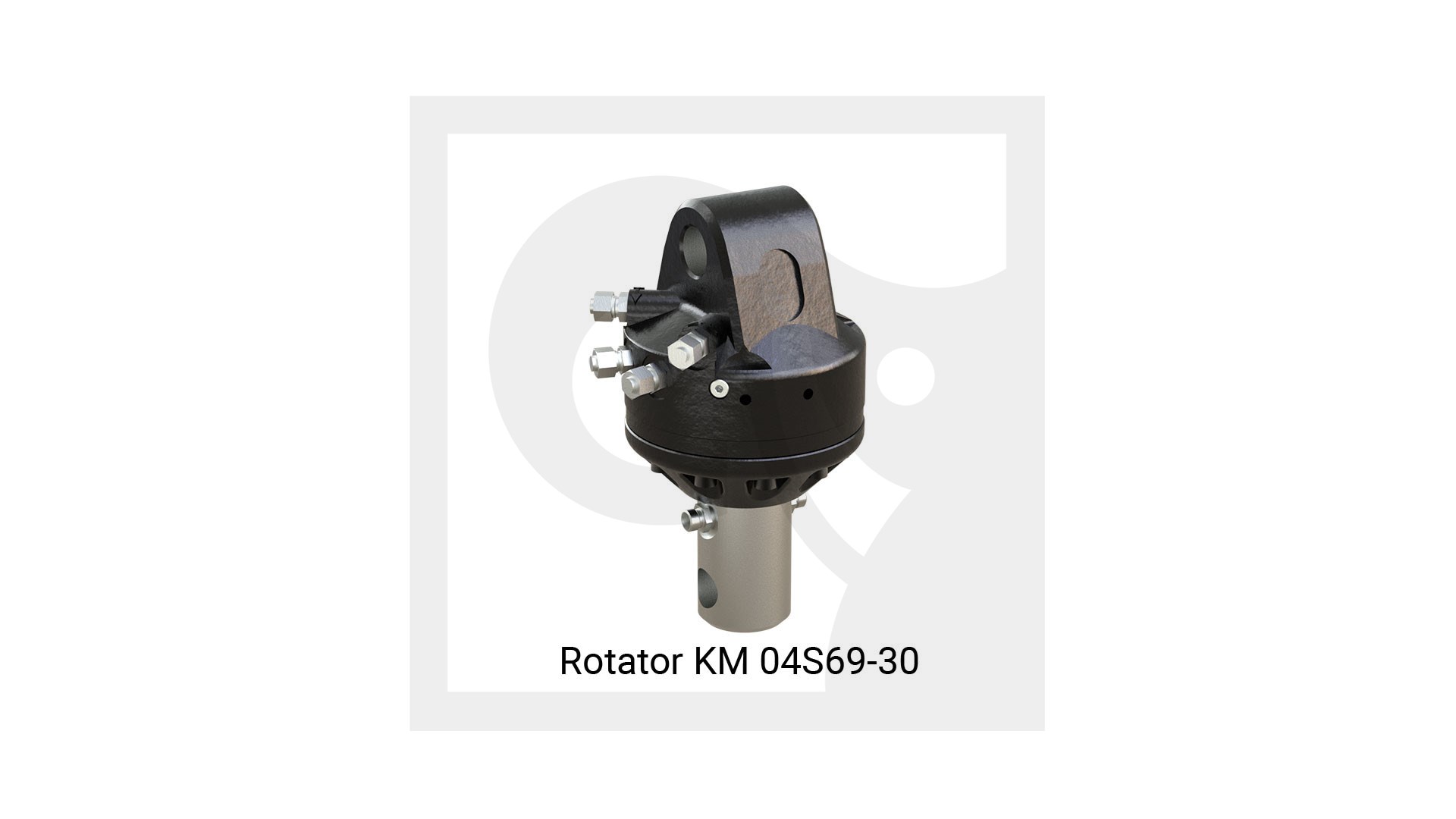

Rotators	KM04 - F	KM04 - F140-30US	KM04 - F140-30V	KM04 - S59	KM04 - S62	KM04 - S63	KM04 - S68	KM04 - S69
Item Part No	9854002	9855785	9874356	3399618	3399619	3399620	9855777	9854011
Drive Type	gear	gear	gear	gear	gear	gear	gear	gear
Height (mm)	256	256	256	323	323	323	323	323
Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM	Ø 59 MM	Ø 62 MM	Ø 63 MM	Ø 68 MM	Ø 69 MM
Item Attachment Type	flange	flange	flange	shaft	shaft	shaft	shaft	shaft
Max Load (kg)	4,500	4,500	4,500	4,500	4,500	4,500	4,500	4,500
Torque	850	1,000	850	850	850	850	850	850
Weight (kg)	26	31	26	26	26	26	26	26
Width (mm)	173	173	173	173	173	173	173	173
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail

Buy as package


Item Part No
Drive Type
Height (mm)
Item Attachment Dimension
Item Attachment Type
Max Load (kg)
Torque
Weight (kg)
Width (mm)
Detail

	KM 04 - F140-30US WITH SHORT LINK	KM 04 - F140-30V WITH SHORT LINK	KM 04 - F WITH SHORT LINK	KM 04 - S59 WITH SHORT LINK	KM 04 - S62 WITH SHORT LINK	KM 04 - S63 WITH SHORT LINK	KM 04 - S68 WITH SHORT LINK	KM 04 - S69 WITH SHORT LINK
Item Part No	3380327	3383539	3380033	3397271	3399621	3399622	3380041	3380602
Drive Type	gear	gear	gear	gear	gear	gear	gear	gear
Height (mm)	406	406	406	473	473	473	473	473
Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM	Ø 59 MM	Ø 62 MM	Ø 63 MM	Ø 68 MM	Ø 69 MM
Item Attachment Type	flange	flange	flange	shaft	shaft	shaft	shaft	shaft
Max Load (kg)	4,500	4,500	4,500	4,500	4,500	4,500	4,500	4,500
Torque	1,000	850	850	450	850	850	850	850
Weight (kg)	27	36	27	27	27	27	27	27
Width (mm)	173	173	173	173	173	173	173	173
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail


Item Part No
Drive Type
Height (mm)
Item Attachment Dimension
Item Attachment Type
Max Load (kg)
Torque
Weight (kg)
Width (mm)
Detail

	F140-30V WITH LONG LINK	KM 04 - F140-30US WITH LONG LINK	KM 04 - F WITH LONG LINK	KM 04 - S68 WITH LONG LINK	KM 04 - S69 WITH LONG LINK
Item Part No	3383547	3382338	3382320	3382346	3382354
Drive Type	gear	gear	gear	gear	gear
Height (mm)	496	496	496	563	563
Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM	Ø 68 MM	Ø 69 MM
Item Attachment Type	flange	flange	flange	shaft	shaft
Max Load (kg)	4,500	4,500	4,500	4,500	4,500
Torque	850	1,000	850	850	850
Weight (kg)	38	27	27	27	27
Width (mm)	173	173	173	173	173
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail


Item Part No
Drive Type
Height (mm)
Item Attachment Dimension
Item Attachment Type
Max Load (kg)
Torque
Weight (kg)
Width (mm)
Detail

	KM 04 - F140-30US SHORT LINK W. DAMPER	KM 04 - F140-30V SHORT LINK W. DAMPER	KM 04 - S68 SHORT LINK W. DAMPER	KM 04 - S69 SHORT LINK W. DAMPER	KM 04 -F SHORT LINK W. DAMPER
Item Part No	3393429	3393445	3393461	3393488	3393402
Drive Type	gear	gear	gear	gear	gear
Height (mm)	406	406	473	473	406
Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	Ø 68 MM	Ø 69 MM	o 4 x 140 MM
Item Attachment Type	flange	flange	shaft	shaft	flange
Max Load (kg)	4,500	4,500	4,500	4,500	4,500
Torque	1,000	850	450	850	850
Weight (kg)	46	41	41	41	41
Width (mm)	173	173	173	173	173
Detail	Variant detail	Variant detail	Variant detail	Current variant	Variant detail

	KM 04 - F140-30US LONG LINK W. DAMPER	KM 04 - F140-30V LONG LINK W. DAMPER	KM 04 - F LONG LINK W. DAMPER	KM 04 - S68 LONG LINK W. DAMPER	KM 04 - S69 LONG LINK W. DAMPER
Item Part No	3393437	3393453	3393411	3393470	3393496
Drive Type	gear	gear	gear	gear	gear
Height (mm)	496	496	496	563	563
Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM	Ø 68 MM	Ø 69 MM
Item Attachment Type	flange	flange	flange	shaft	shaft
Max Load (kg)	4,500	4,500	4,500	4,500	4,500
Torque	1,000	850	850	850	850
Weight (kg)	46	41	41	41	41
Width (mm)	173	173	173	173	173
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail
