GEAR ROTATOR

Material number: 3380629
Product line: Accessories

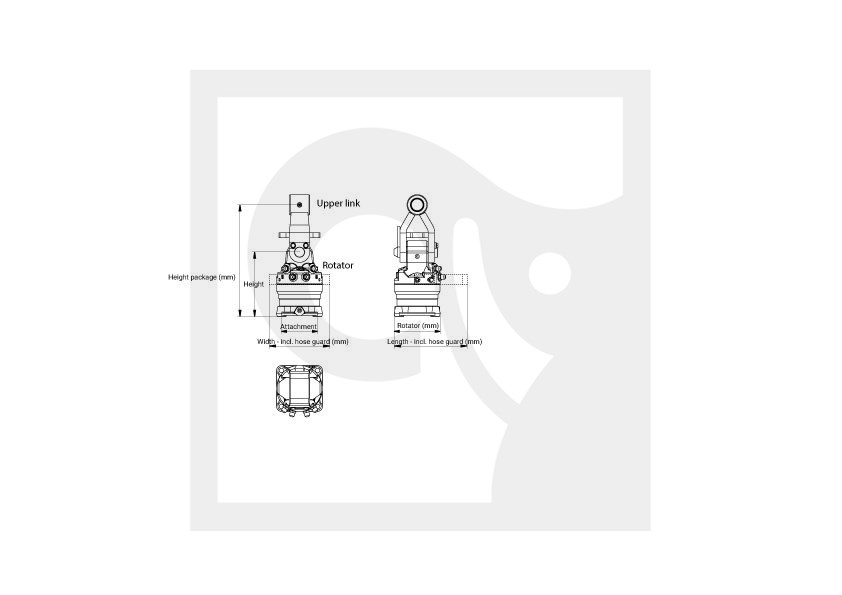

Product images shown are for illustration purpose only. The actual product may vary.

Description

Rotators with shaft up to 6000 kg load capacity (incl. fittings)

Attributes

Drive Type: gear
Height (mm): 447
Item Attachment Dimension: o 4 x 140 MM
Item Attachment Type: flange
Max Load (kg): 6,000
Torque: 1,000
Weight (kg): 32
Width (mm): 180

Downloads


Model specifications

Rotators	KM 06 - F140-40	KM 06 - S68	KM 06 - S69
Item Part No	9855793	3397377	3397610
Drive Type	gear	gear	gear
Height (mm)	297	364	364
Item Attachment Dimension	o 4 x 140 MM	Ø 68 MM	Ø 69 MM
Item Attachment Type	flange	shaft	shaft
Max Load (kg)	6,000	6,000	6,000
Torque	1,000	1,000	1,000
Weight (kg)	34	32	32
Width (mm)	180	180	180
Detail	Variant detail	Variant detail	Variant detail

Buy as package

	KM 06 - F WITH SHORT LINK
Item Part No	3380629
Drive Type	gear
Height (mm)	447
Item Attachment Dimension	o 4 x 140 MM
Item Attachment Type	flange
Max Load (kg)	6,000
Torque	1,000
Weight (kg)	32
Width (mm)	180
Detail	Current variant

	KM 06 - F WITH LONG LINK
Item Part No	3382281
Drive Type	gear
Height (mm)	537
Item Attachment Dimension	o 4 x 140 MM
Item Attachment Type	flange
Max Load (kg)	6,000
Torque	1,000
Weight (kg)	27
Width (mm)	180
Detail	Variant detail
