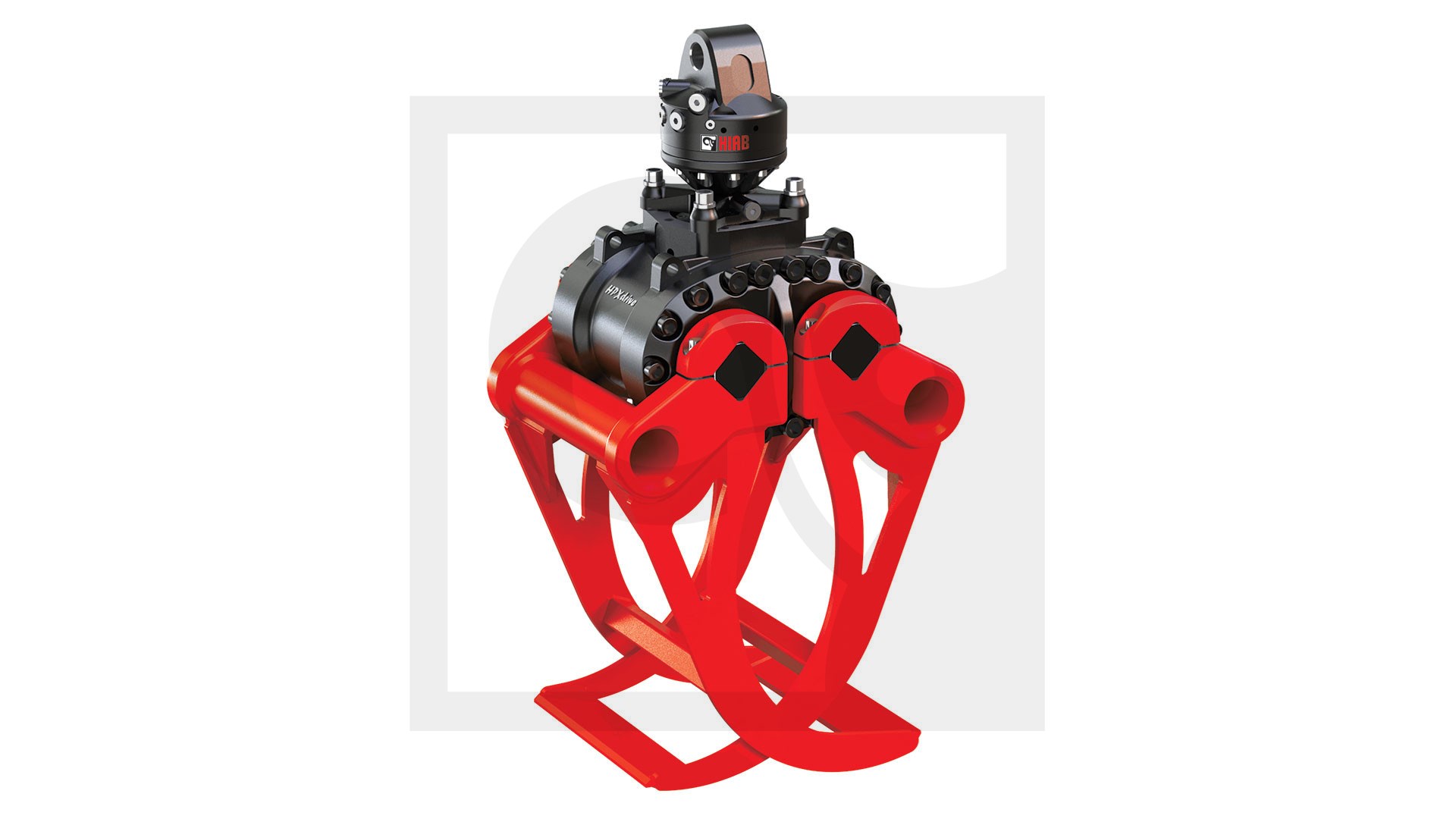

GRAPPLE KM 632 HPX-0.16 WF

Buy as package

• Package 1

  Package include grapple, rotator KM 04 F140-30V, upper suspension KM 501 (4500), pressure relief valve, non-return valve

  Item Part No
  Closing Force
  Height (mm)
  Length (mm)
  Max Load (kg)
  Tine Spread (mm)
  Volume Max (liters)
  Weight (kg)
  Width (mm)
  Detail

  	KM 632 HPX 0.16 WF
  Item Part No	3382117
  Closing Force	18
  Height (mm)	1,250
  Length (mm)	550
  Max Load (kg)	1,000
  Tine Spread (mm)	1220
  Volume Max (liters)	0.16
  Weight (kg)	210
  Width (mm)	400
  Detail	Current variant
• Package 2

  Package include grapple, rotator KM 04 S, reduction link KM 502 (4500), short connecting hoses KM 203 01, upper suspension KM 501 (4500), pressure relief valve, non-return valve

  Item Part No
  Closing Force
  Height (mm)
  Length (mm)
  Max Load (kg)
  Tine Spread (mm)
  Volume Max (liters)
  Weight (kg)
  Width (mm)
  Detail

  	KM 632 HPX 0.16 WS
  Item Part No	3382125
  Closing Force	18
  Height (mm)	1,340
  Length (mm)	550
  Max Load (kg)	1,000
  Tine Spread (mm)	1220
  Volume Max (liters)	0.16
  Weight (kg)	215
  Width (mm)	400
  Detail	Variant detail
