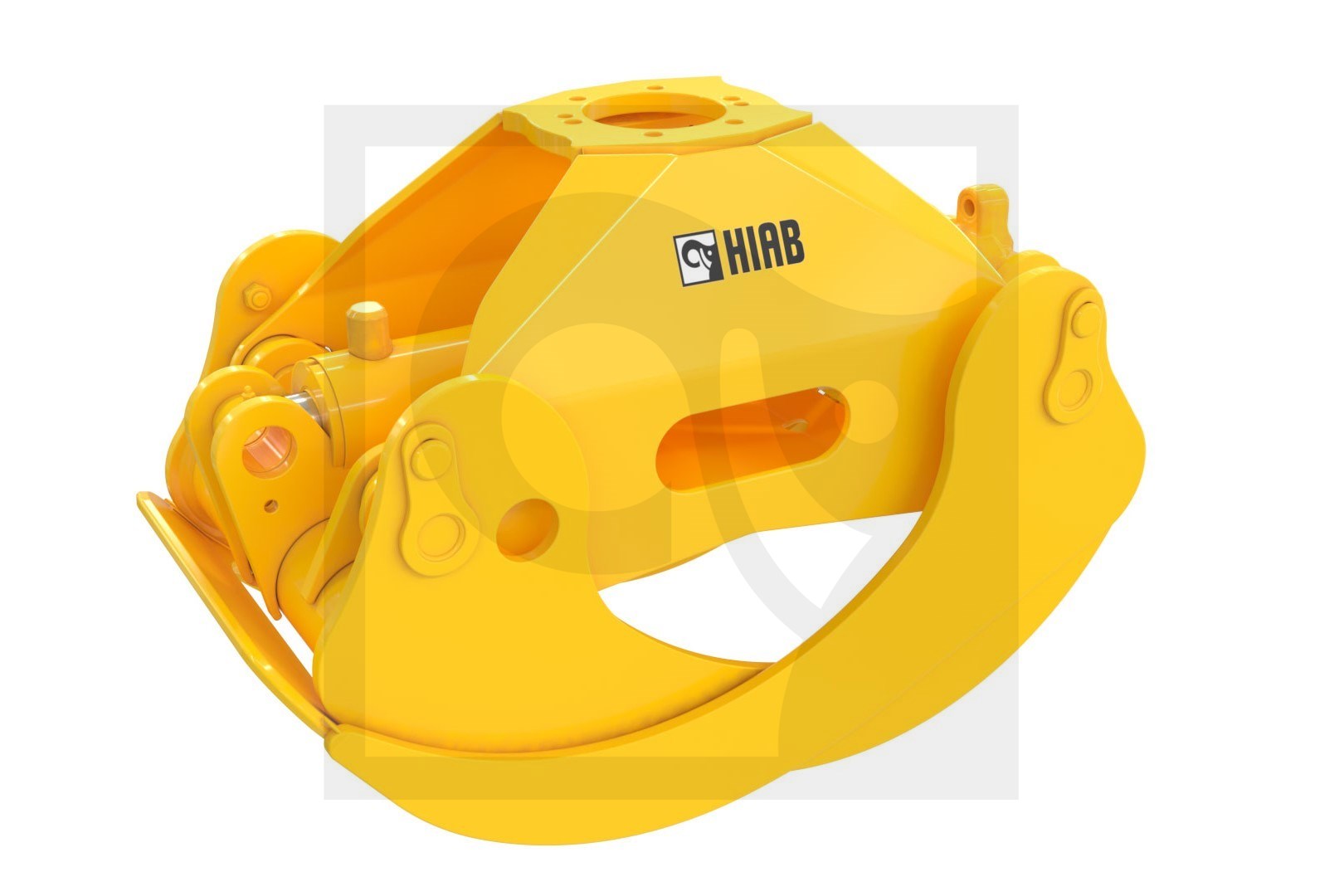

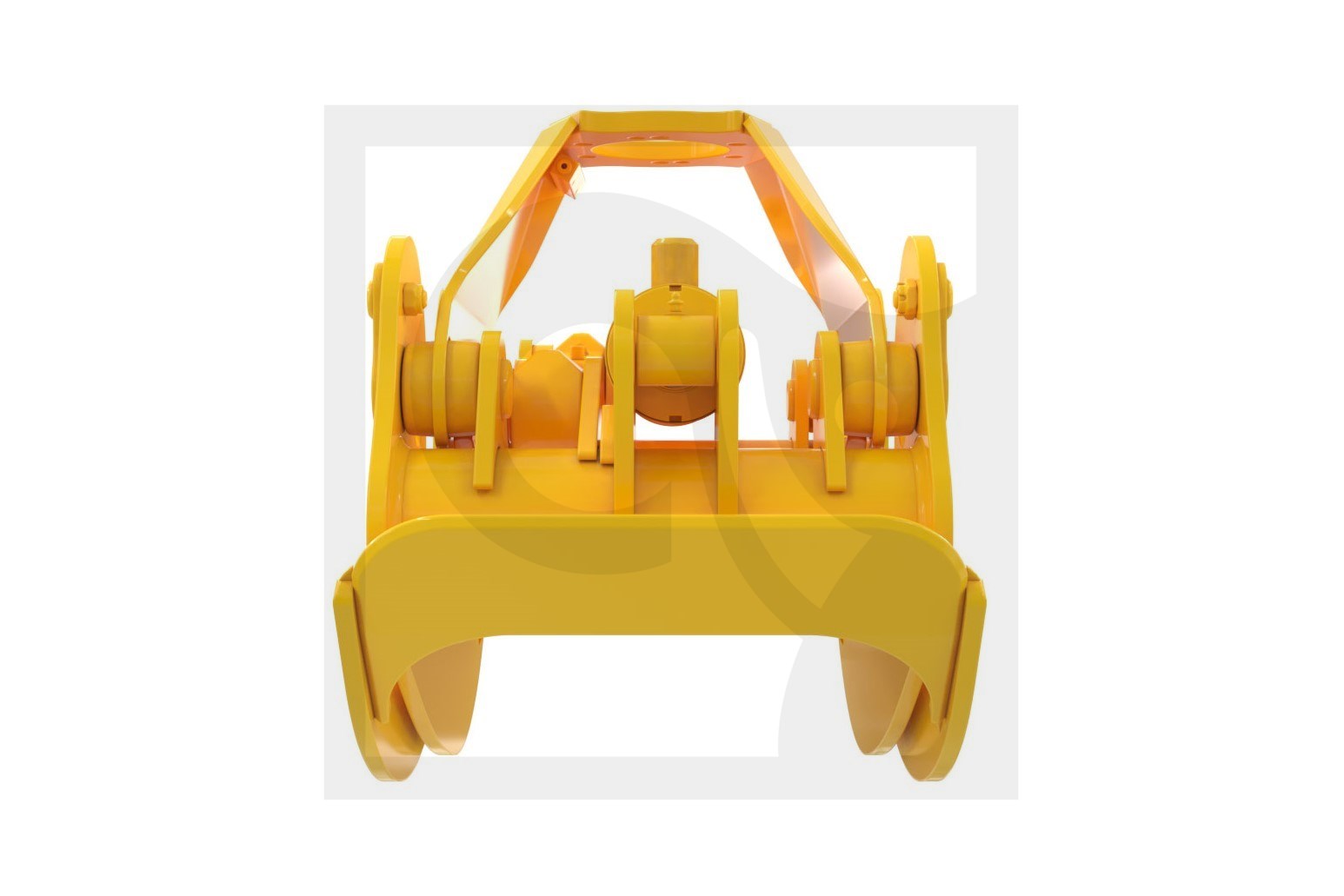

GRAPPLE X43 CV

Material number: 94290721
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab accessories are designed to help you to perform your daily job faster and easier.

Attributes

Closing Force: 18
Max Load (kg): 5,000
Tine Spread (mm): 1825
Volume Max (liters): 0.4
Weight (kg): 220
Width (mm): 528

Model specifications

Log handling grapples	X 43	X 43 CV (with lock valve)	X 53	X 53 (with lock valve)
Item Part No	94290720	94290721	94290724	94290141
Closing Force	18	18	17	17
Max Load (kg)	5,000	5,000	5,000	5,000
Tine Spread (mm)	1825	1825	1985	1985
Volume Max (liters)	0.4	0.4	0.5	0.5
Weight (kg)	220	220	225	225
Width (mm)	528	528	528	528
Detail	Variant detail	Current variant	Variant detail	Variant detail
