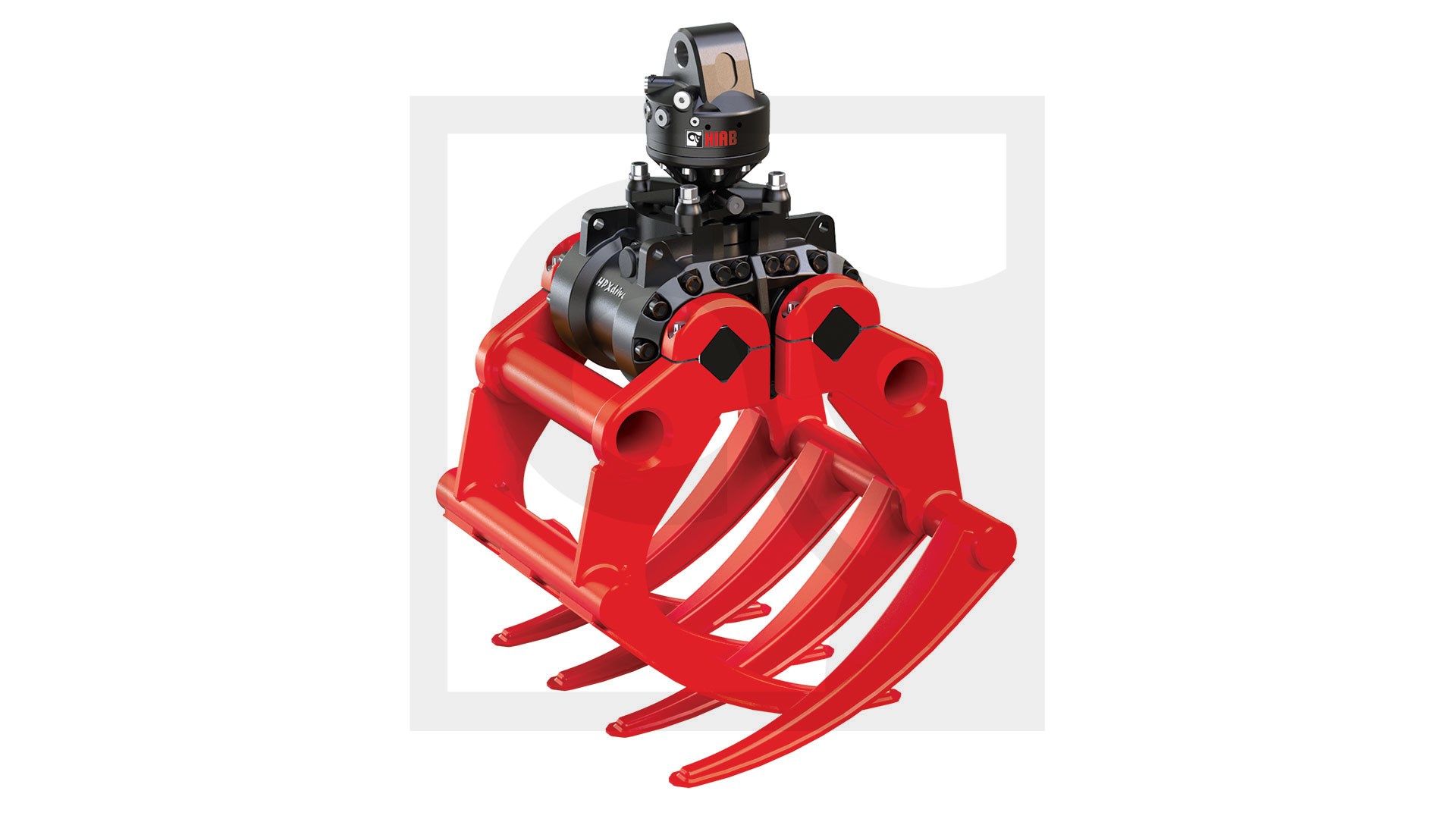

GRAPPLE
- Material number
- 3383628
- Product line
- Accessories
Description
Reliability of the HPXdrive! The movement of the arms of the grapple is generated by two hollow shafts, which run opposed and have a helix thread, hydraulically driven by a single piston. No more hydraulic cylinders!
Longer life cycle up to 50%! Self-lubrication: The drive unit runs in a permanent oil bath. The compact design makes the HPXdrive resistant to dirt and debris.
Versatility with different types of shells that can easily be refitted onto the driving unit. ? Profitability through low maintenance costs and longer life cycle.
Precise handling with the gear-type Hiab rotator and shells synchronised by the single piston turning both shafts of the HPXdrive.
Rotator with shaft is available as an alternative, in case a quick change to a non-rotating hook is favoured.
Constant closing force (18 kN/14 kN at 26 MPa operating pressure) over the entire opening and closing process.
Attributes
- Closing Force
- 14
- Height (mm)
- 1,515
- Length (mm)
- 740
- Max Load (kg)
- 2,000
- Tine Spread (mm)
- 1630
- Volume Max (liters)
- 0.4
- Weight (kg)
- 300
- Width (mm)
- 940
