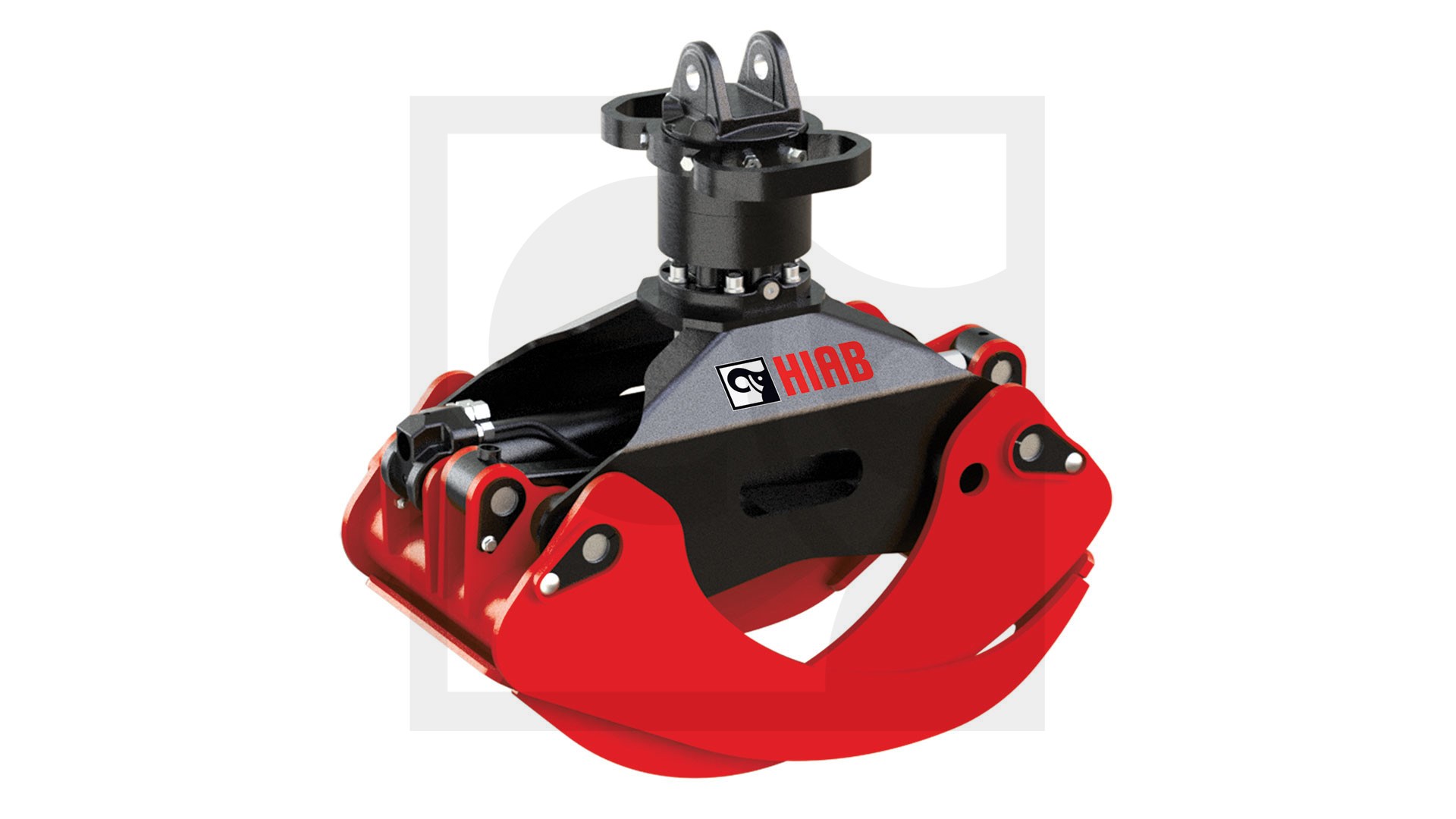

GRAPPLE

Material number: 3391281
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab accessories are designed to help you to perform your daily job faster and easier.

Attributes

Closing Force: 13
Height (mm): 510
Item Attachment Dimension: o 4 x 140 MM
Length (mm): 850
Max Load (kg): 4,000
Tine Spread (mm): 90/1470
Volume Max (liters): 0.25
Weight (kg): 170
Width (mm): 420

Downloads

KM 634 ME-MD.pdf

Model specifications

Log handling grapples	KM 634 0.5	KM 634 0.25	KM 634 0.35
Item Part No	3391302	3391281	3391299
Closing Force	15	13	16
Height (mm)	660	510	635
Item Attachment Dimension	o 4 x 140 MM	o 4 x 140 MM	o 4 x 140 MM
Length (mm)	980	850	980
Max Load (kg)	5,000	4,000	5,000
Tine Spread (mm)	170/1985	90/1470	135/1950
Volume Max (liters)	0.5	0.25	0.35
Weight (kg)	250	170	225
Width (mm)	500	420	500
Detail	Variant detail	Current variant	Variant detail

Buy as package

	KM 634 WF - 0.25	KM 634 WF - 0.35	KM 634 WF - 0.50
Item Part No	3391256	3391264	3391272
Closing Force	13	16	15
Height (mm)	947	1,072	1,097
Length (mm)	850	980	980
Max Load (kg)	4,000	5,000	5,000
Tine Spread (mm)	90/1470	135/1950	170/1985
Volume Max (liters)	0.25	0.35	0.5
Weight (kg)	215	300	325
Width (mm)	420	500	500
Detail	Variant detail	Variant detail	Variant detail
