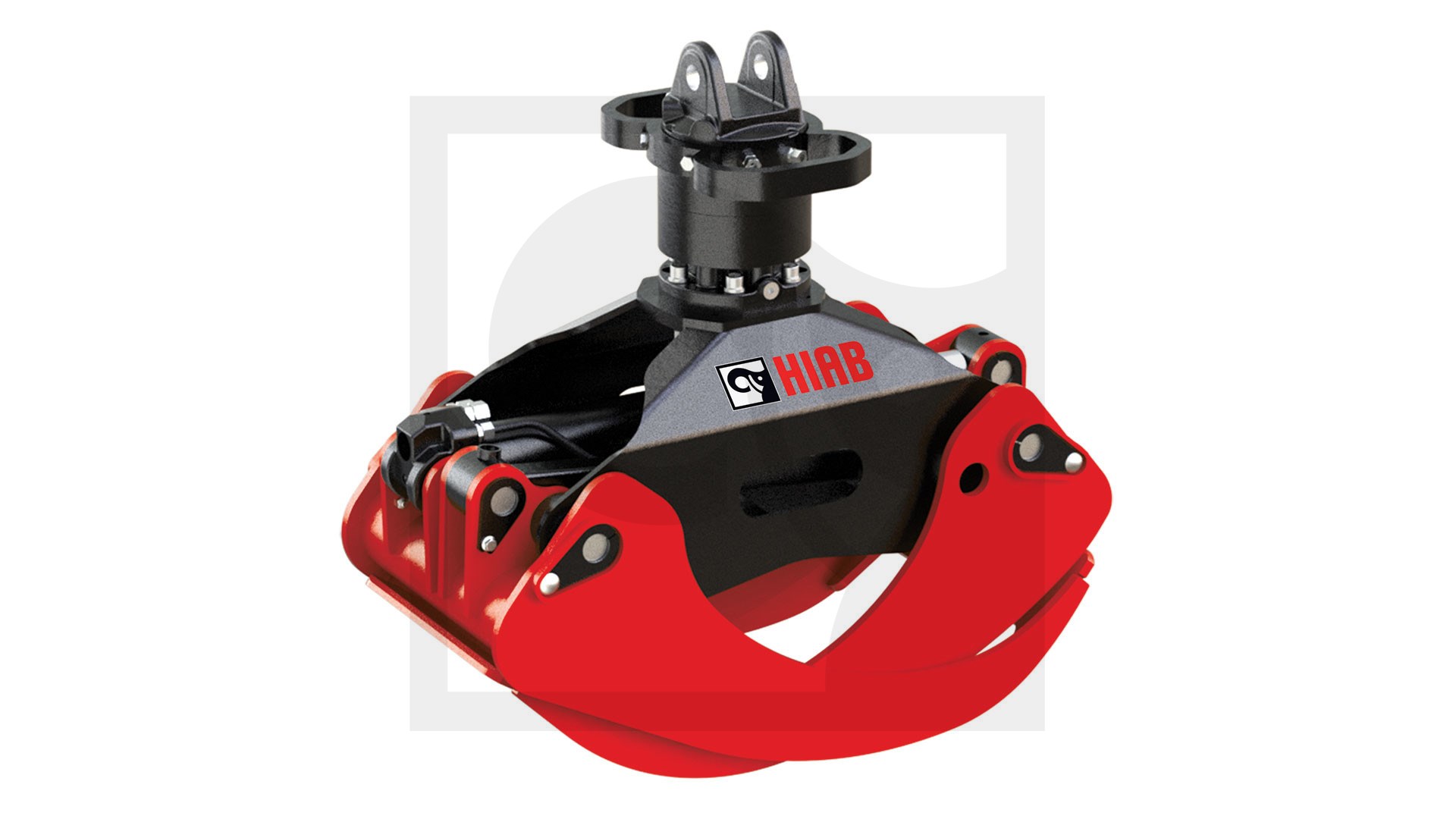

GRAPPLE

Material number: 3397866
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

A sturdy construction, high quality components and a generously dimensioned bearing system contribute to the grapple’s long service life.

Depending on the size of the logging grapple, it will be equipped with a suitable rotator.

Hiab grapple KM 634S (reinforced version) available in capacities 0.40, 0.50 and 0.70 m² / 0.27, 0.33 and 0.47 cords.

Additional information

Please note that in Metz, France this part is stored in an off-site warehouse and requires special handling. Due to COVID-19 situation, when in stock, same-day shipping available for express orders placed before 10 AM CET.

Attributes

Closing Force: 15
Max Load (kg): 8,000
Tine Spread (mm): 110/2570
Volume Max (liters): 0.7
Weight (kg): 530
Width (mm): 590

Downloads

KM 634 ME-MD.pdf

Model specifications

Log handling grapples
Item Part No
Closing Force
Max Load (kg)
Tine Spread (mm)
Volume Max (liters)
Weight (kg)
Width (mm)
Detail

Log handling grapples	KM 634S 0.4	KM 634S 0.5	KM 634S 0.7
Item Part No	3397840	3397858	3397866
Closing Force	16	16	15
Max Load (kg)	6,000	7,000	8,000
Tine Spread (mm)	135/1950	170/1985	110/2570
Volume Max (liters)	0.4	0.5	0.7
Weight (kg)	270	275	530
Width (mm)	510	510	590
Detail	Variant detail	Variant detail	Current variant
