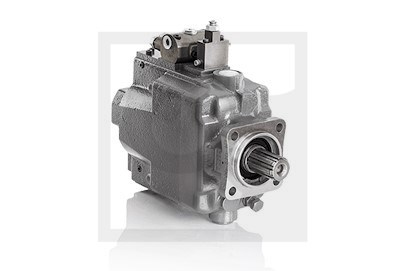

OIL PUMP

Material number: 3394695
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab pumps & ancillaries are designed to ensure your Hiab product has the precision and performance you demand. They are optimised to ensure efficient hydraulic oil flow to power your equipment in all conditions.

Attributes

Displacement 1: 62.4
Height (mm): 222.1
Item Attachment Dimension: DIN 5462/ISO14
Length (mm): 254
Max Oil Pressure (MPa): 40
Torque: 30
Weight (kg): 24
Width (mm): 115

Model specifications

Hydraulic pumps
Item Part No
Displacement 1
Height (mm)
Item Attachment Dimension
Length (mm)
Max Oil Pressure (MPa)
Torque
Weight (kg)
Width (mm)
Detail

Hydraulic pumps	062-L, DIN	062-R, DIN	092-L, DIN	092-R, DIN	112-L, DIN	112-L, DIN 10 DEGREE TILT	112-R, DIN	112-R, DIN 10 DEGREE TILT	130-L, DIN	130-L, DIN 10 DEGREE TILT	130-R, DIN	130-R, DIN 10 DEGREE TILT
Item Part No	3394694	3394695	3389731	3389723	3389758	3394690	3389740	3394691	3398056	3394692	3398064	3394693
Displacement 1	62.4	62.4	92	92	112	112	112	112	130	130	130	130
Height (mm)	222.1	222.1	228.6	228.6	239	239	239	239	255	255	255	255
Item Attachment Dimension		DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14
Length (mm)	254	254	277	277	280	280	280	280	270	270	270	270
Max Oil Pressure (MPa)	40	40	40	40	40	40	40	40	45	45	45	45
Torque		30	35	35	40	40	40	40	40	40	40	40
Weight (kg)	24	24	27	27	30	30	30	30	30.8	30.8	30.8	30.8
Width (mm)	115	115	120	120	127	127	127	127	130	130	130	130
Detail	Variant detail	Current variant	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail
