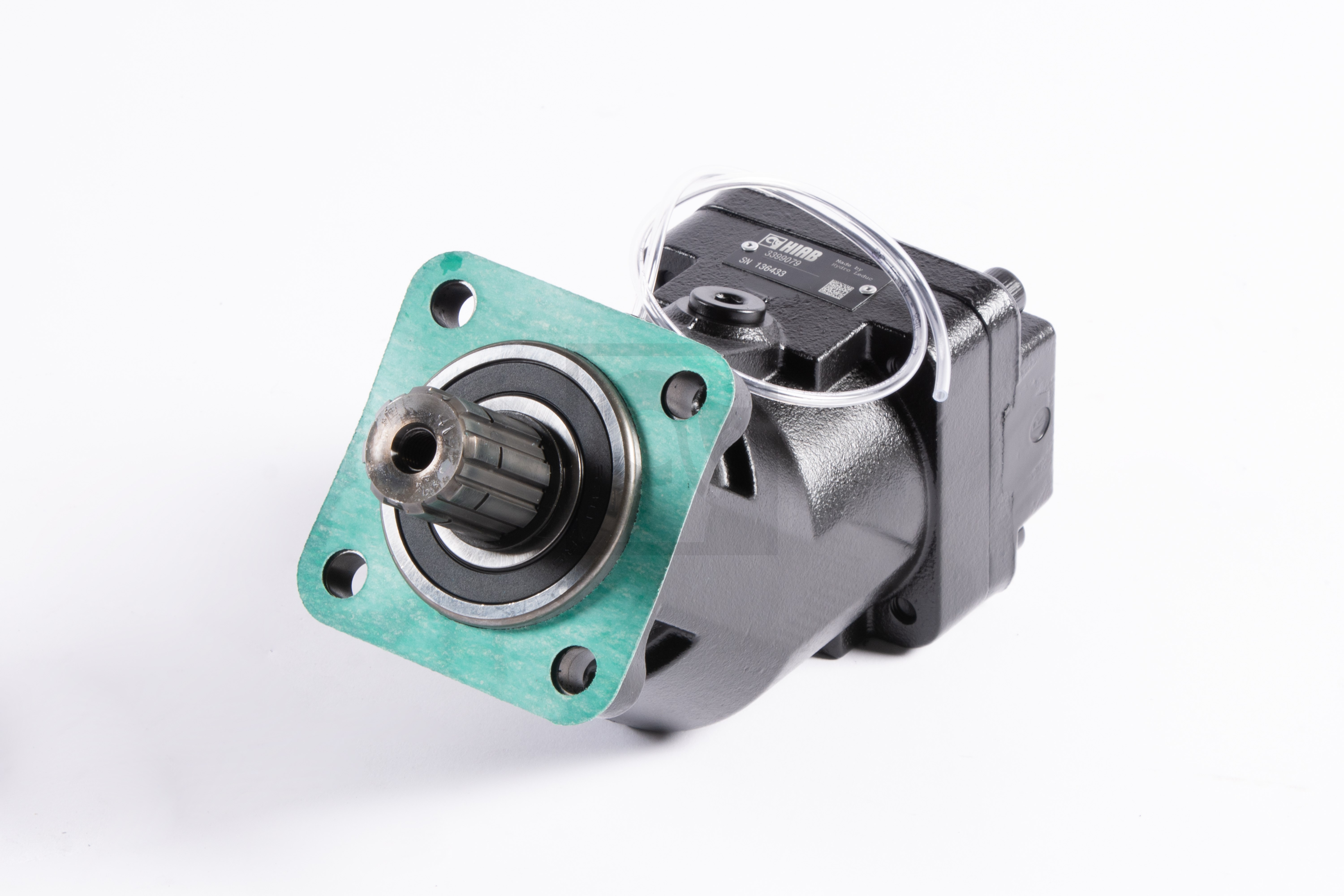

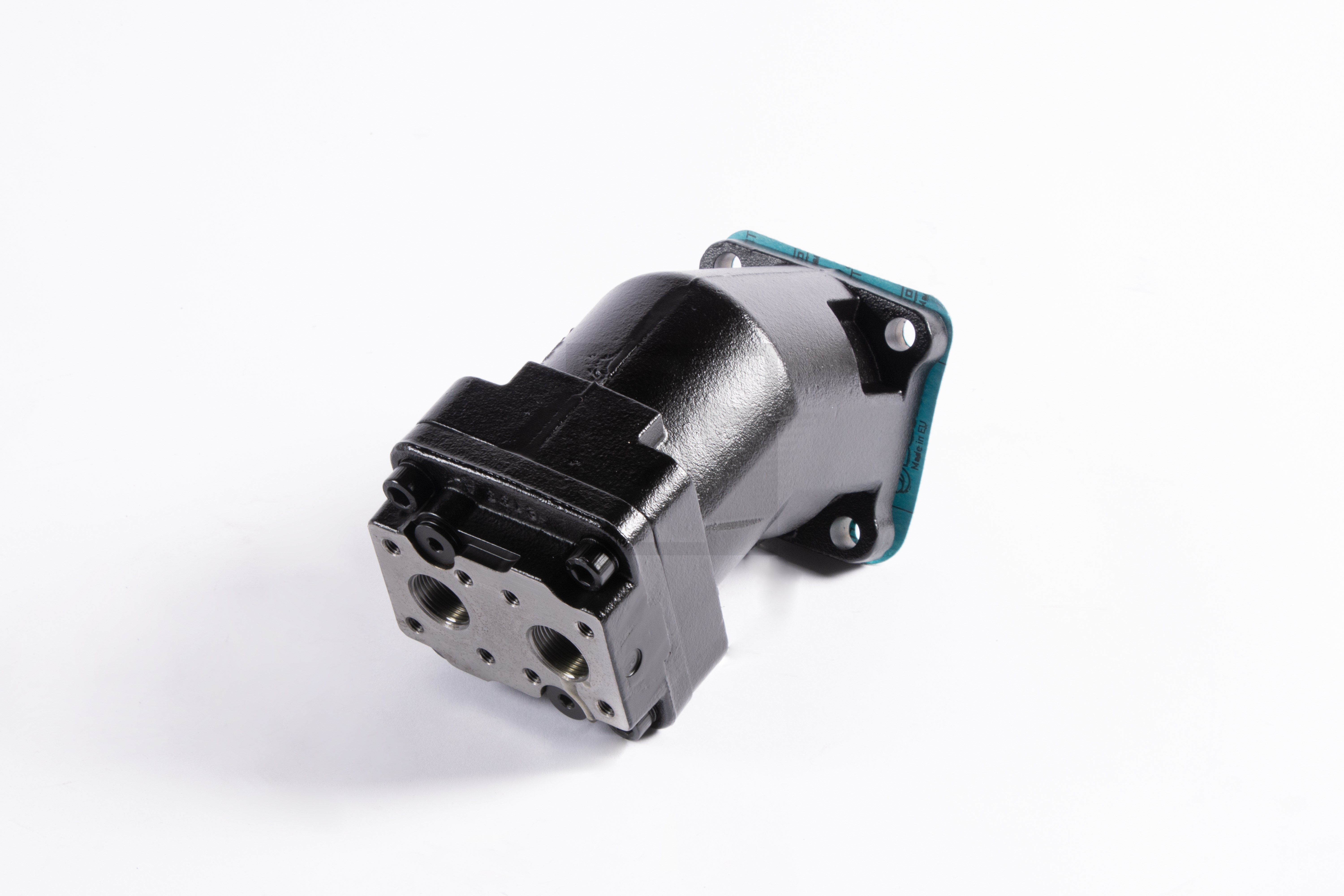

OIL PUMP

Material number: 3399079
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab pumps & ancillaries are designed to ensure your Hiab product has the precision and performance you demand. They are optimised to ensure efficient hydraulic oil flow to power your equipment in all conditions.

Additional information

Please note that this part is stored in an off-site warehouse and requires special handling. Same-day shipping is available for express orders placed before 1 PM CET.

Attributes

Displacement 1: 41
Height (mm): 109
Length (mm): 203
Max Oil Pressure (MPa): 38
Weight (kg): 11
Width (mm): 108

Model specifications

Hydraulic pumps
Item Part No
Displacement 1
Height (mm)
Item Attachment Dimension
Length (mm)
Max Oil Pressure (MPa)
Torque
Weight (kg)
Width (mm)
Detail

Hydraulic pumps	108	130	XPi- 18	XPi - 12	XPi - 25	XPi - 32	XPi - 41	XPi - 50	XPi - 63	XPi - 80
Item Part No	3399117	3399125	3399044	3399036	3399052	3399061	3399079	3399087	3399095	3399109
Displacement 1	108.3	129.8	18	12	25	32	41	50.3	63	80.4
Height (mm)	133	135	104	104	104	109	109	119	119	133
Item Attachment Dimension	DIN 5462/ISO14	DIN 5462/ISO14
Length (mm)	242	244	197	197	197	203	203	214	214	242
Max Oil Pressure (MPa)	38	38	38	38	38	38	38	38	38	38
Torque	17.9	18.7
Weight (kg)	15	15	9	9	9	11	11	11	11	15
Width (mm)	123	123	108	108	108	108	108	108	108	123
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Current variant	Variant detail	Variant detail	Variant detail
