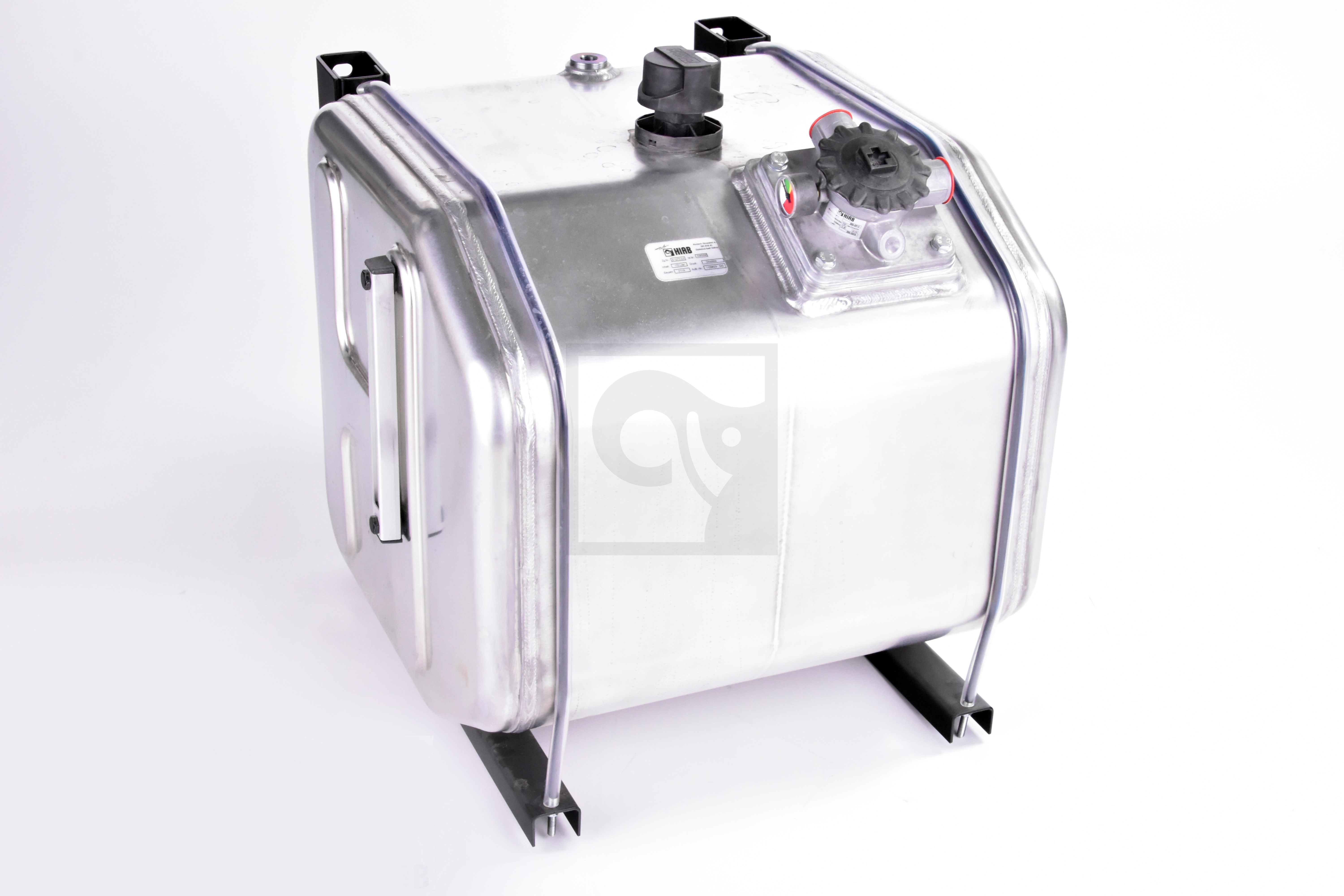

OIL TANK,ALUMINIUM,SMALL FILTER 150L

Material number: 3395090
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Tanks are the origin of the hydraulic oil your machine is using to run. Hiab original tanks are designed to perform with the crane.

Attributes

Height (mm): 674
Length (mm): 708
Return Filter Capacity: 150
Suction Outlet Rear: 1
Suction Outlet Underneath: 1
Volume Max (liters): 150
Weight (kg): 33
Width (mm): 657

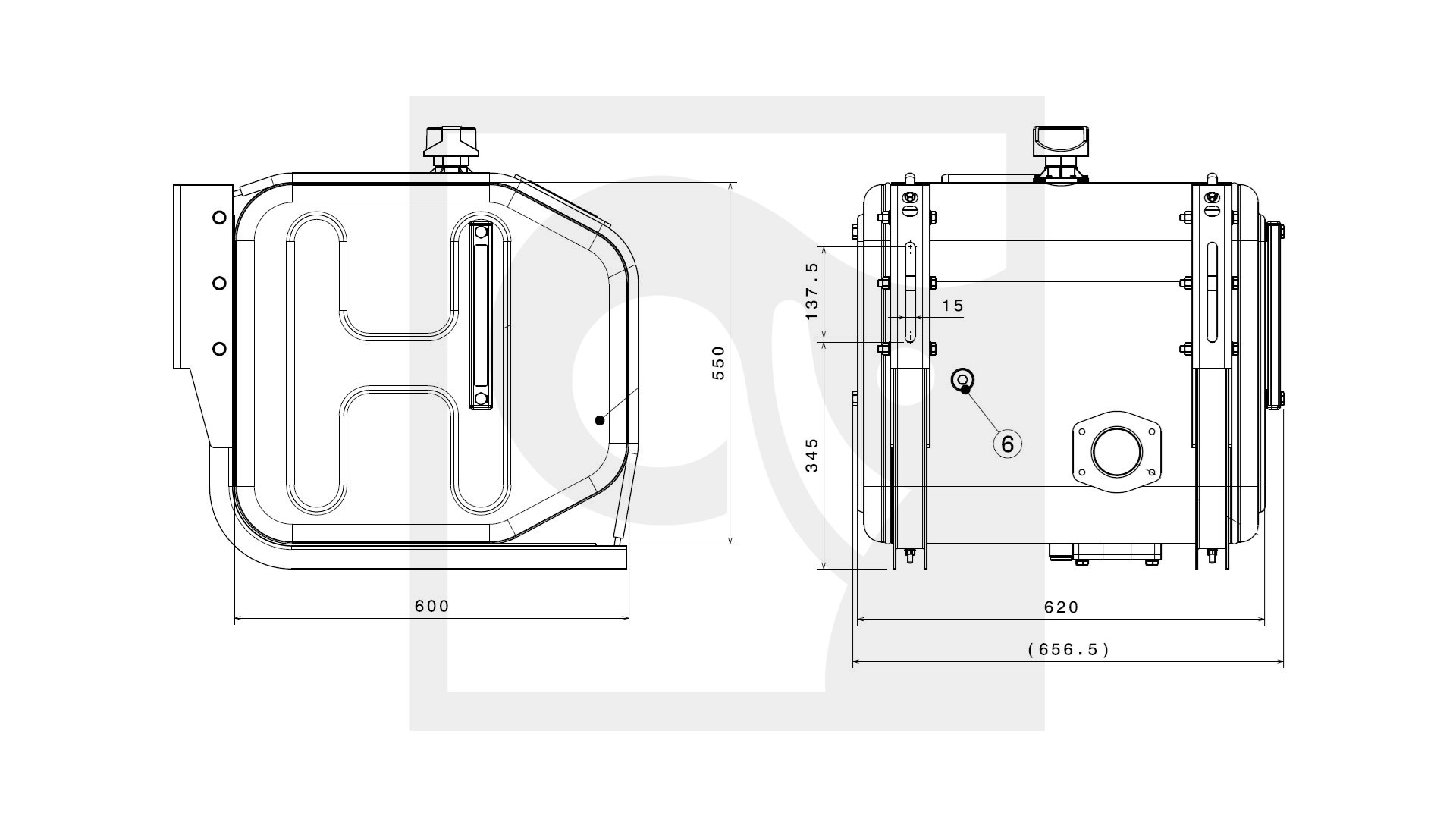

Model specifications

Oil tanks	LARGE FILTER (ALUMINIUM)	SMALL FILTER (ALUMINIUM)
Item Part No	3395103	3395090
Height (mm)	674	674
Length (mm)	708	708
Return Filter Capacity	150	150
Suction Outlet Rear	1	1
Suction Outlet Underneath	1	1
Volume Max (liters)	150	150
Weight (kg)	33	33
Width (mm)	657	657
Detail	Variant detail	Current variant
