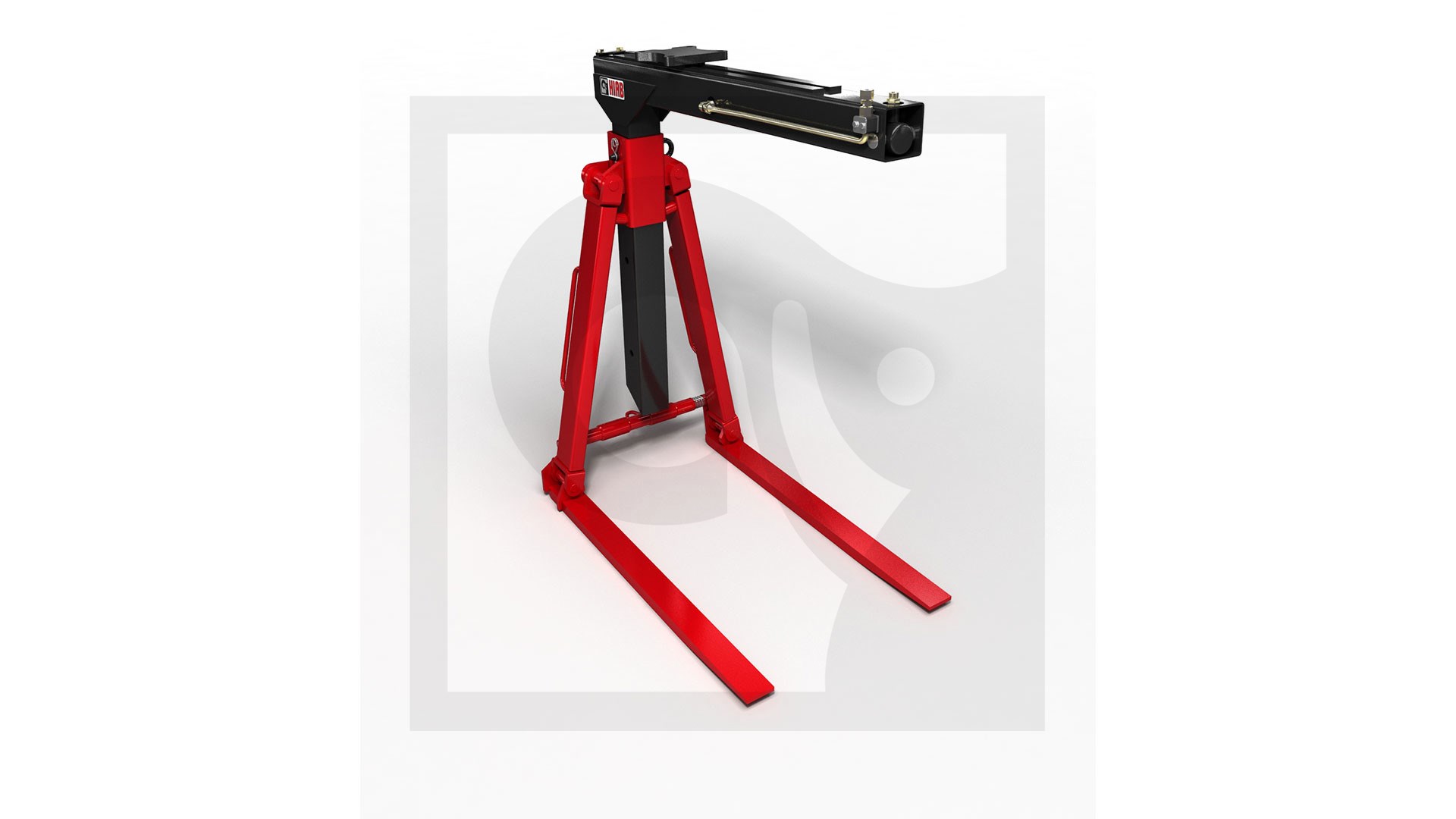

PALLET FORK KM 401H-2000-600 FS

Material number: 3382630
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Efficient handling of many different kinds of loads like stone or brick stack, protection trellis or other general cargo is possible due to the hydraulic shifting.

Precise positioning of the loads is no problem in combination with the Hiab rotator – continuous rotation, precise start and braking ability.

Versatile height from 1050 mm to 1650 mm adjustable in three steps with a lock pin.

Versatile width of tines from 475 mm to max. 835 mm adjustable with a smooth running, stainless spindle.

Easy to use due to the dimensions of the pallet fork. Since no part of the pallet fork is wider than a standard pallet, a second row can be loaded and loads close to walls can also be handled without problems.

Attributes

Gravity Center: 600
Item Attachment Type: shaft
Max Load (kg): 2,000
Tine Dimension: 100x50
Tine Length: 1,150
Tine Spread (mm): 500-840
Weight (kg): 230

Downloads

KM 401H ME_MD_1.pdf

Model specifications

Pallet forks
Item Part No
Max Load (kg)
Tine Dimension
Tine Length
Tine Spread (mm)
Weight (kg)
Detail

Pallet forks	KM 401H - 2000-500	KM 401H - 2000-600
Item Part No	9854410	9855726
Max Load (kg)	2,000	2,000
Tine Dimension	100x35	100x50
Tine Length	980	1,150
Tine Spread (mm)	495-835	500-840
Weight (kg)	135	170
Detail	Variant detail	Variant detail

Buy as package


Item Part No
Gravity Center
Item Attachment Type
Max Load (kg)
Tine Dimension
Tine Length
Tine Spread (mm)
Weight (kg)
Detail

	KM 401H - 2000-500 B FS	KM 401H - 2000-500 B WS	KM 401H - 2000-500 C FF	KM 401H - 2000-500 C WF	KM 401H - 2000-600 B FS	KM 401H - 2000-600 B WS	KM 401H - 2000-600 C FF	KM 401H - 2000-600 C WF
Item Part No	3382621	3385761	3383865	3385728	3382630	3385779	3383873	3385736
Gravity Center	500	500	500	500	600	600	600	600
Item Attachment Type	shaft		flange		shaft		flange
Max Load (kg)	2,000	2,000	2,000	2,000	2,000	2,000	2,000	2,000
Tine Dimension	100x35	100x35	100x35	100x35	100x50	100x50	100x50	100x50
Tine Length	980	980	980	980	1,150	1,150	1,150	1,150
Tine Spread (mm)	495-835	495-835	495-835	495-835	500-840	500-840	500-840	500-840
Weight (kg)	175	175	175	175	230	230	230	230
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Current variant	Variant detail	Variant detail	Variant detail
