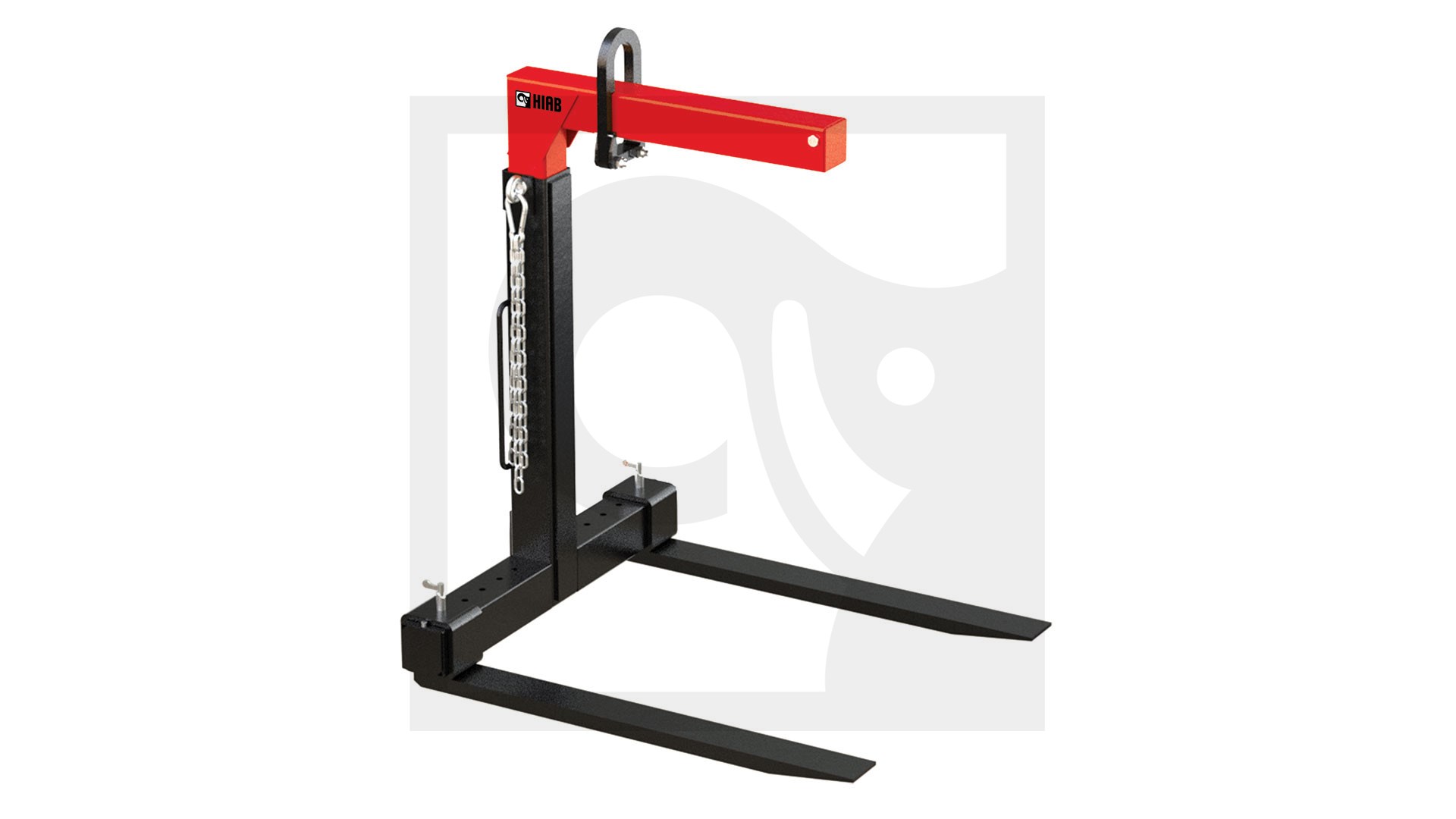

PALLET FORK KM 414-2000-600 FF

Material number: 3382478
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Manual change of position of shifting collar by the operator.

Suspension Ring for Hiab flange or shaft rotator, or for a crane hook is included in the package.

Throat height adjustable in steps from 1050 mm to 1650 mm with a lock pin.

Tine spread adjustable in steps from 325 mm to max. 975 mm with a lock pin.

Attributes

Item Attachment Dimension: o 4 x 140 MM
Item Attachment Type: flange
Max Load (kg): 2,000
Tine Length: 1,150
Tine Spread (mm): ___- 940
Weight (kg): 195

Downloads

KM414 ME_MD.pdf

Model specifications

Pallet forks	KM 414 - 2000-500	KM 414 - 2000-600	KM 414F - 2000-500 A69	KM 414F - 2000-500 H
Item Part No	9854452	9855769	3391779	3391809
Item Attachment Dimension			Ø 69 MM
Item Attachment Type	hook	hook	shaft
Max Load (kg)	2,000	2,000	2,000	2,000
Tine Length	980	1,150	980	980
Tine Spread (mm)	___- 940	__- 940	940	940
Weight (kg)	130	180	150	150
Detail	Variant detail	Variant detail	Variant detail	Variant detail

Buy as package

2000-600 FF
Item Part No
3382478
Item Attachment Dimension
o 4 x 140 MM
Item Attachment Type
flange
Max Load (kg)
2,000
Tine Length
1,150
Tine Spread (mm)
___- 940
Weight (kg)
195
Detail
Current variant
