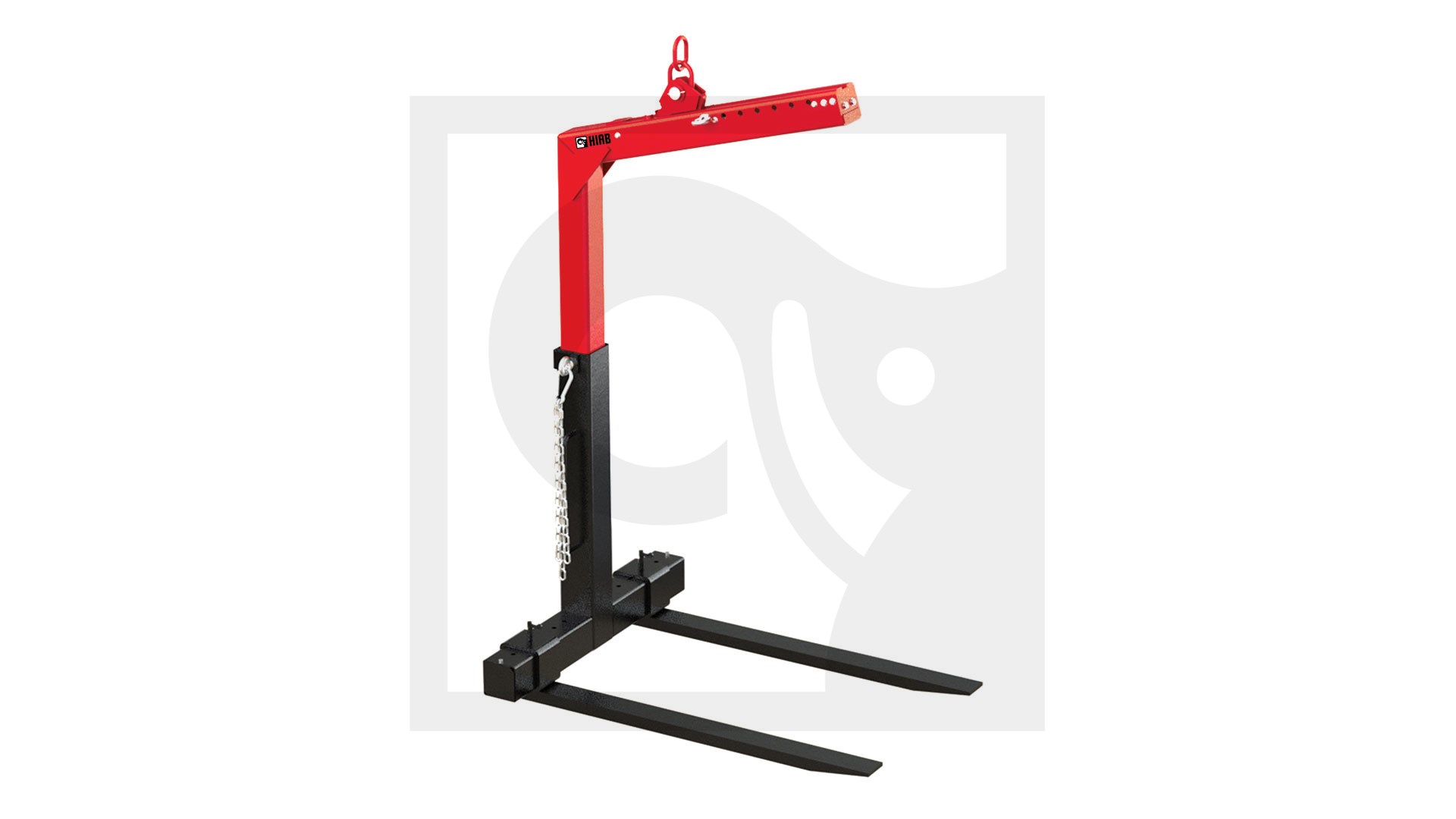

PALLET FORK

Material number: 3382761
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Efficient handling of many different kinds of loads in an economic, one-man operation is possible due to the automatic shifting of the KM 415 to a preset position. Compression springs return slide to initial position.

Throat height adjustable in steps from 1050 mm to 1650 mm with a lock pin.

Tine spread adjustable in steps from 325 mm to max. 975 mm with a lock pin.

Attributes

Item Attachment Dimension: Ø 69 MM
Item Attachment Type: shaft
Max Load (kg): 2,000
Tine Length: 980
Tine Spread (mm): ___- 940
Weight (kg): 150

Downloads

KM 415 ME_MD.pdf

Model specifications

Pallet forks
Item Part No
Item Attachment Type
Max Load (kg)
Tine Length
Tine Spread (mm)
Weight (kg)
Detail

Pallet forks	KM 415 - 2000-500	KM 415 - 2000-600
Item Part No	9854436	9855742
Item Attachment Type	hook	hook
Max Load (kg)	2,000	2,000
Tine Length	980	1,150
Tine Spread (mm)	___- 940	___- 940
Weight (kg)	150	180
Detail	Variant detail	Variant detail

Buy as package

KM 415 - 2000-500 FS
Item Part No
3382761
Item Attachment Dimension
Ø 69 MM
Item Attachment Type
shaft
Max Load (kg)
2,000
Tine Length
980
Tine Spread (mm)
___- 940
Weight (kg)
150
Detail
Current variant

	KM 415 - 2000-500(PREP.F HOOK)
Item Part No	3382753
Item Attachment Type	hook
Max Load (kg)	2,000
Tine Length	980
Tine Spread (mm)	___- 940
Weight (kg)	150
Detail	Variant detail

	KM 415 - 2000-500 FS
Item Part No	3382761
Item Attachment Dimension	Ø 69 MM
Item Attachment Type	shaft
Max Load (kg)	2,000
Tine Length	980
Tine Spread (mm)	___- 940
Weight (kg)	150
Detail	Current variant

	KM 415- 2000-500 FF
Item Part No	3382770
Item Attachment Dimension	o 4 x 140 MM
Item Attachment Type	flange
Max Load (kg)	2,000
Tine Length	980
Tine Spread (mm)	___- 940
Weight (kg)	150
Detail	Variant detail

	KM 415 - 2000-600(PREP.F HOOK)
Item Part No	3382788
Item Attachment Type	hook
Max Load (kg)	2,000
Tine Length	1,150
Tine Spread (mm)	___- 940
Weight (kg)	180
Detail	Variant detail

	KM 415 - 2000-600 FS
Item Part No	3382796
Item Attachment Dimension	Ø 69 MM
Item Attachment Type	shaft
Max Load (kg)	2,000
Tine Length	1,150
Tine Spread (mm)	___- 940
Weight (kg)	180
Detail	Variant detail

	KM 415 - 2000-600 FF
Item Part No	3382800
Item Attachment Dimension	o 4 x 140 MM
Item Attachment Type	flange
Max Load (kg)	2,000
Tine Length	1,150
Tine Spread (mm)	___- 940
Weight (kg)	180
Detail	Variant detail
