PUMP TXV 75-L

Material number: 3394705
Product line: Accessories

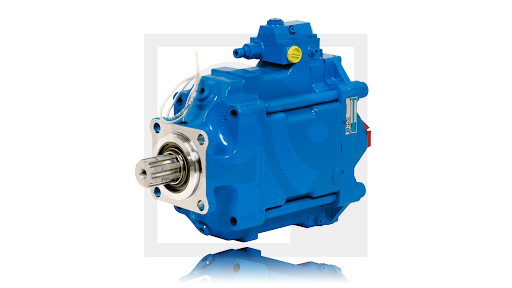

Product images shown are for illustration purpose only. The actual product may vary.

Description

Specifically designed to meet the needs of truck hydraulics, the TXV variable displacement pumps with LS (Load Sensing) control allow flow regulation to suit the application requirements. The pump regulates to only supply the

Additional information

Please note that this part is stored in an off-site warehouse and requires special handling. Same-day shipping is available for express orders placed before 1 PM CET.

Attributes

Displacement 1: 75
Height (mm): 247.8
Item Attachment Dimension: DIN 5462/ISO14
Length (mm): 276
Max Oil Pressure (MPa): 40
Torque: 42
Weight (kg): 26.8
Width (mm): 125

Model specifications

Hydraulic pumps
Item Part No
Displacement 1
Height (mm)
Item Attachment Dimension
Length (mm)
Max Oil Pressure (MPa)
Torque
Weight (kg)
Width (mm)
Detail

Hydraulic pumps	40-R	40-R	60-L	60-R	75-L	75-R	92-L	92-R	120-L	120-R	130 Indexable	130-L	130-L FE	130-L Through Shaft	130-L Through Shaft Down Stroked	130-R	130-R FE	130-R Through Shaft	130-R Through Shaft Down Stroked	150 Indexable	150-L	150-L FE	150-R	150-R FE
Item Part No	4643446	4643447	3394703	3394702	3394705	3394704	3394707	3394706	3394709	3394708	3394710	4643435	4643441	4643437	4643439	4643434	4643440	4643436	4643438	3394711	4643443	4643445	4643442	4643444
Displacement 1	40	40	60	60	75	75	92	92	120	120	130	130	130	130	130	130	130	130	130	150	150	150	150	150
Height (mm)	247.8	247.8	247.8	247.8	247.8	247.8	247.8	247.8	247.8	247.8	219	277	277	277	277	277	277	277	277	219	277	277	277	277
Item Attachment Dimension	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14
Length (mm)	276	276	276	276	276	276	276	276	276	276	266	266	266	266	266	266	266	266	266	266	266	266	266	266
Max Oil Pressure (MPa)	40	40	40	40	40	40	40	40	38	38	36	36	36	36	36	36	36	36	36	31	31	31	31	31
Torque	22.5	22.5	33.5	33.5	42	42	51.5	51.5	67.5	67.5	36	73	73	73	73	73	73	73	73	31	84	84	84	84
Weight (kg)	26.8	26.8	26.8	26.8	26.8	26.8	26.8	26.8	26.8	26.8	27.2	27.2	27.2	27.2	27.2	27.2	27.2	27.2	27.2	27.2	27.2	27.2	27.2	27.2
Width (mm)	125	125	125	125	125	125	125	125	125	125	127	127	127	127	127	127	127	127	127	127	127	127	127	127
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Current variant	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail
