PUMP

Product images shown are for illustration purpose only. The actual product may vary.

Description

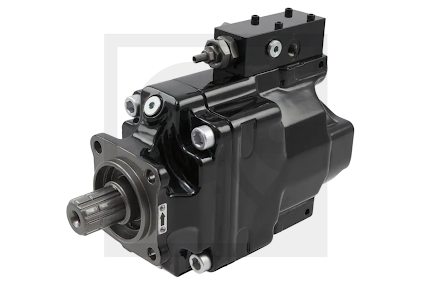

The Hiab VP1 pump is a robust design that provides circuit reliability for the most demanding truck applications. Sizes from 45-130cc.

Hydraulic pumps	045-L, DIN	045-L, DIN with electric regulator eVFO	045-R, DIN	045-R, DIN with electric regulator eVFO	075-L, DIN	075-L, DIN with electric regulator eVFO	075-R, DIN	075-R, DIN with electric regulator eVFO	095-L, DIN	095-R, DIN	110-L, DIN	110-R, DIN	130-L, DIN	130-R, DIN
Item Part No	3394600	3395001	3394599	3395000	3389677	3395003	3389669	3395002	3389693	3389685	3398780	3398779	3398790	3398781
Displacement 1	45	45	45	45	75	75	75	75	95	95	110	110	128	128
Height (mm)	242	242	242	242	242	242	242	242	244	244	244	244	244	244
Item Attachment Dimension	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14	DIN 5462/ISO14
Length (mm)	257	257	257	257	257	257	257	257	269	269	269	269	269	269
Max Oil Pressure (MPa)	40	40	40	40	40	40	40	40	42	42	42	42	42	42
Torque	30.2	32.4	30.2	32.4	30.2	32.4	30.2	32.4	35.8	35.8	35.8	35.8	35.8	35.8
Weight (kg)	27	29	27	29	27	29	27	29	27	27	27	27	27	27
Width (mm)	132	132	132	132	132	132	132	132	130	130	130	130	130	130
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Current variant	Variant detail	Variant detail
