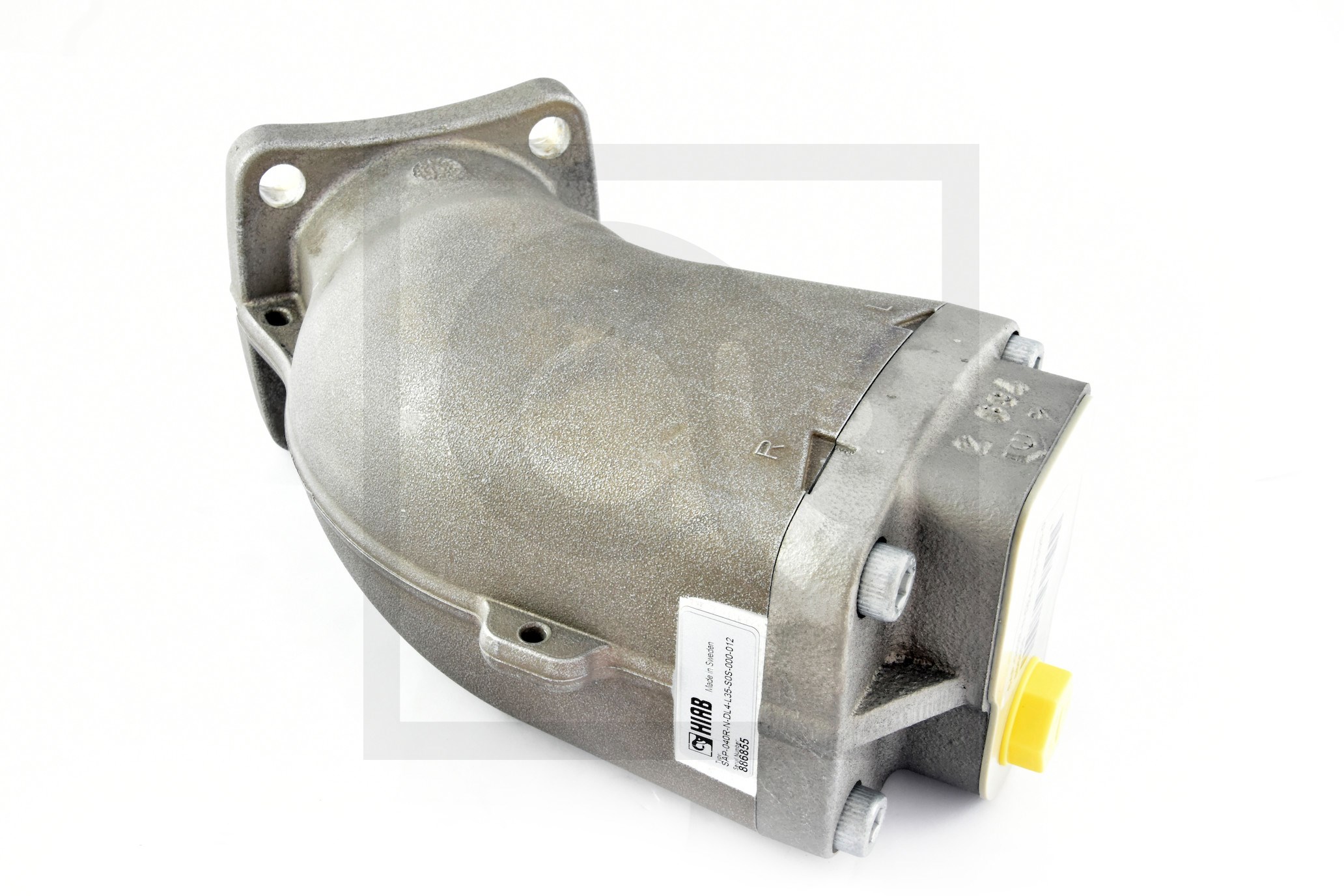

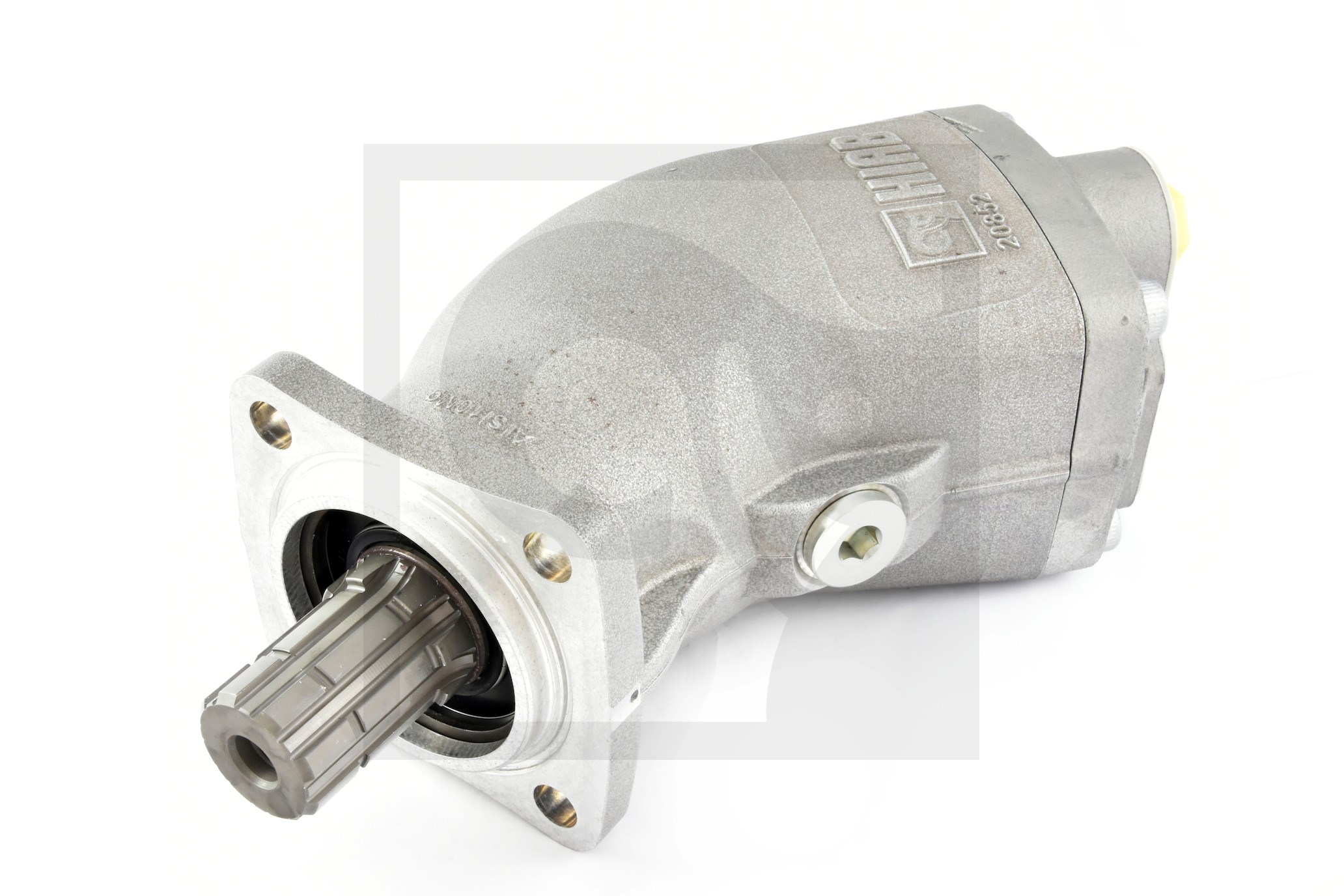

PUMP

Material number: 3399249
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab pumps & ancillaries are designed to ensure your Hiab product has the precision and performance you demand. They are optimised to ensure efficient hydraulic oil flow to power your equipment in all conditions.

Attributes

Displacement 1: 41.2
Height (mm): 115
Item Attachment Dimension: DIN 5462/ISO14 o4x80 MM
Length (mm): 235
Max Oil Pressure (MPa): 40
Torque: 11.5
Weight (kg): 9.8
Width (mm): 111

Model specifications

Hydraulic pumps
Item Part No
Displacement 1
Height (mm)
Item Attachment Dimension
Length (mm)
Max Oil Pressure (MPa)
Torque
Weight (kg)
Width (mm)
Detail

Hydraulic pumps	040-L, DIN	040-R, DIN	047-L, DIN	047-R, DIN	056-L, DIN	056-R, DIN	064-L, DIN	064-R, DIN	084-L, DIN	084-L, DIN OPTIMIZED	084-R, DIN	084-R, DIN OPTIMIZED	108-L, DIN	108-L, DIN OPTIMIZED	108-R, DIN	108-R, DIN OPTIMIZED	SAP - 012-L, DIN	SAP - 012-R, DIN	SAP - 017-L, DIN	SAP - 017-R, DIN	SAP - 025-L, DIN	SAP - 025-R, DIN	SAP - 034-L, DIN	SAP - 034-R, DIN
Item Part No	3398013	3399249	3398021	3399257	3398030	3399265	3398048	3399273	3394435	3394612	3394436	3394613	3394437	3394614	3394438	3394615	3394426	3394427	3394428	3394429	3394430	3394431	3394432	3394434
Displacement 1	41.2	41.2	47.1	47.1	56	56	63.6	63.6	83.6	83.6	83.6	83.6	108	108	108	108	12.6	12.6	17	17	25.4	25.4	32.2	32.2
Height (mm)	115	115	115	115	115	115	115	115	133	133	133	133	133	133	133	133	102	102	102	102	102	102	102	102
Item Attachment Dimension	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM	DIN 5462/ISO14 o4x80 MM
Length (mm)	235	235	235	235	235	235	235	235	264	264	264	264	264	264	264	264	206	206	206	206	206	206	206	206
Max Oil Pressure (MPa)	40	40	40	40	40	40	40	40	40	40	40	40	40	40	40	40	40	40	40	40	40	40	40	40
Torque	11.5	11.5	11.5	11.5	11.5	11.5	11.5	11.5	18	18	18	18	18	18	18	18
Weight (kg)	9.8	9.8	9.8	9.8	9.8	9.8	9.8	9.8	13.9	13.9	13.9	13.9	13.9	13.9	13.9	13.9	6.9	6.9	6.9	6.9	7.1	7.1	7.1	7.1
Width (mm)	111	111	111	111	111	111	111	111	118	118	118	118	118	118	118	118	97	97	97	97	97	97	97	97
Detail	Variant detail	Current variant	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail
