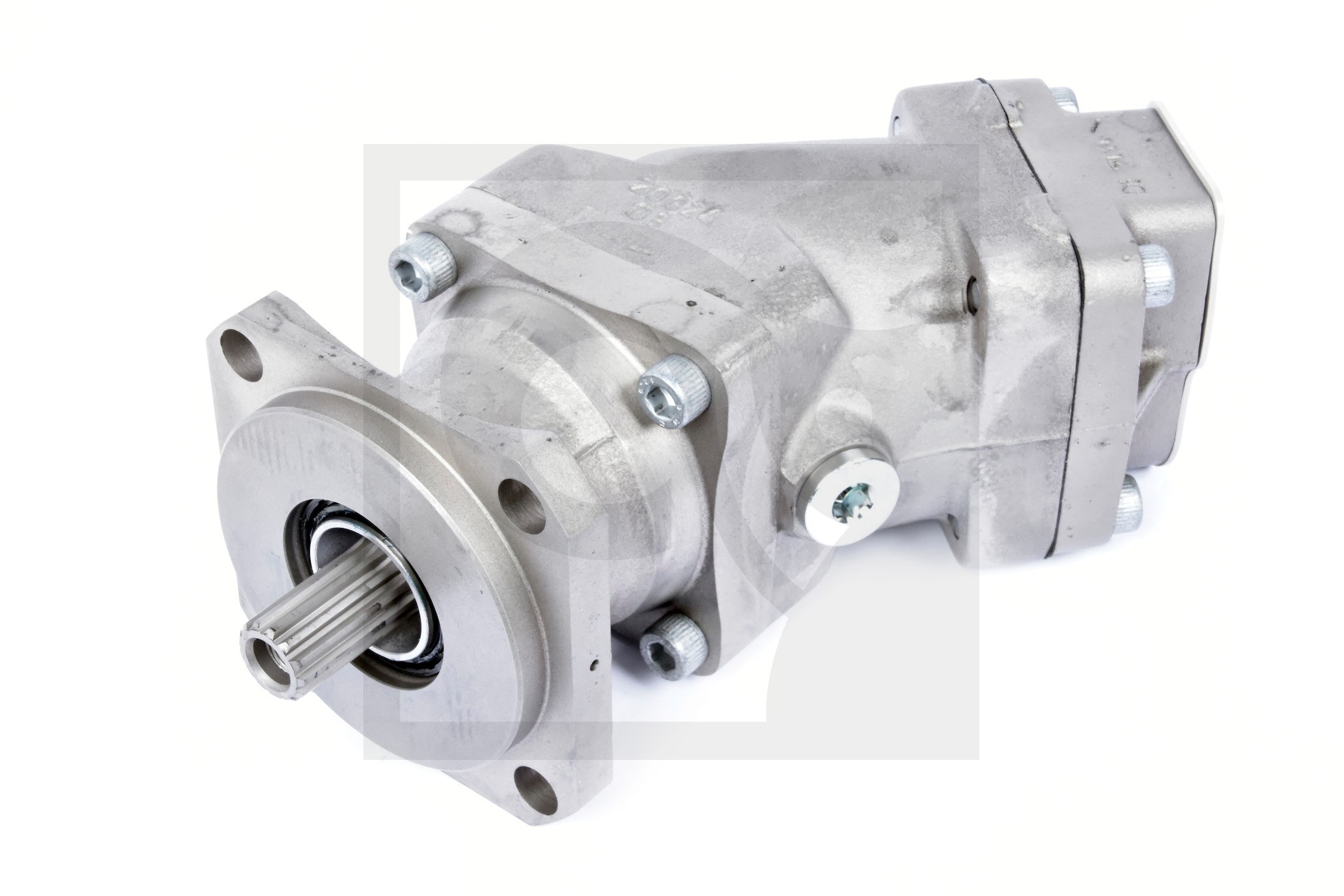

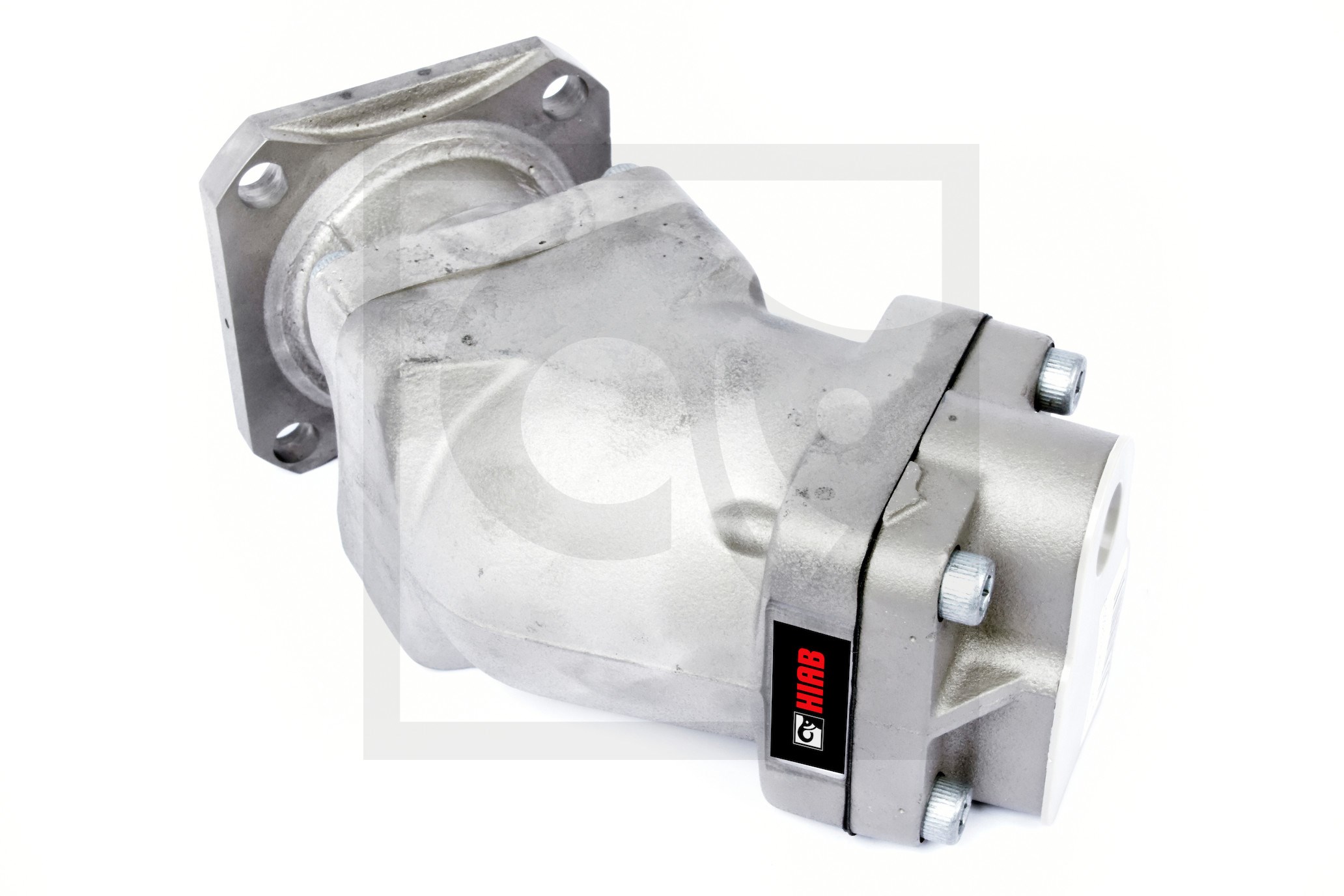

PUMP

Material number: 9858253
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab pumps & ancillaries are designed to ensure your Hiab product has the precision and performance you demand. They are optimised to ensure efficient hydraulic oil flow to power your equipment in all conditions.

Attributes

Displacement 1: 63.6
Height (mm): 112
Length (mm): 235
Max Oil Pressure (MPa): 40
Weight (kg): 11.7
Width (mm): 106

Model specifications

Hydraulic pumps
Item Part No
Displacement 1
Height (mm)
Height (mm)
Item Attachment Dimension
Length (mm)
Torque
Weight (kg)
Width (mm)
Detail

Hydraulic pumps	084, SAE C	108, SAE C	SCP - 025, SAE B	SCP - 034, SAE B	SCP - 047, SAE B	SCP - 047, SAE C	SCP - 56/26-L, DIN	SCP - 56/26-R, DIN	SCP - 064, SAE B	SCP - 064, SAE C
Item Part No	9858270	9858288	9858199	9858229	9858237	9858245	9882090	9882103	9858253	9858261
Displacement 1	83.6	108			63.6	47.1	56	56	63.6	63.6
Height (mm)	40	40	97	97	112	40	40	40	40	40
Height (mm)	126	126	209	209		112	134	134	112	112
Item Attachment Dimension	SAE C 14T-12/24DP o4x127MM	SAE C 14T-12/24DP o4x127MM
Length (mm)	262	262	97	97	235	237	270	270	235	237
Torque	21	21
Weight (kg)	17	17	25.4	34.2	13.6	13.6	21	21	11.7	14.3
Width (mm)	123	123	9	8.1	106	106	160	160	106	106
Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Current variant	Variant detail
