ROTATOR GV 6 RF

Material number: 9847596
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

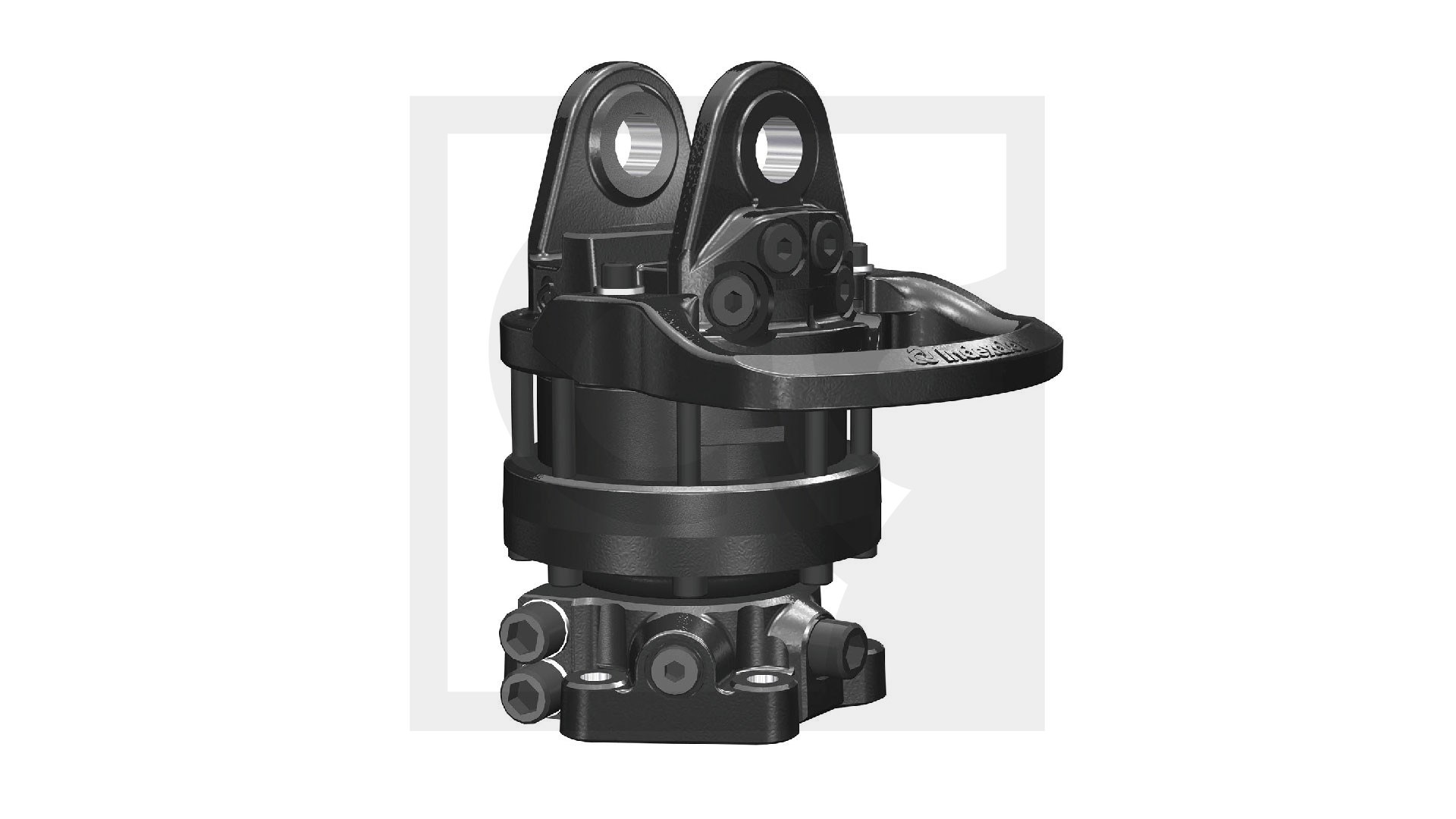

Hiab rotator GV6 is a light and compact rotator with high performance. It has a lifting capacity of
60 kN

Attributes

Drive Type: wing
Height (mm): 346
Item Attachment Dimension: Ø 6 x 173 MM
Item Attachment Type: flange
Max Load (kg): 6,000
Torque: 1,400
Weight (kg): 44
Width (mm): 209

Model specifications

Rotators	GV6 - 68/30	GV6 - 69/30	GV6 - A
Item Part No	3399648	3399656	9847596
Drive Type	wing	wing	wing
Height (mm)	311	311	346
Item Attachment Dimension	Ø 68 MM	Ø 69 MM	Ø 6 x 173 MM
Item Attachment Type	shaft	shaft	flange
Max Load (kg)	6,000	6,000	6,000
Torque	1,400	1,400	1,400
Weight (kg)	39	39	44
Width (mm)	209	209	209
Detail	Variant detail	Variant detail	Current variant
