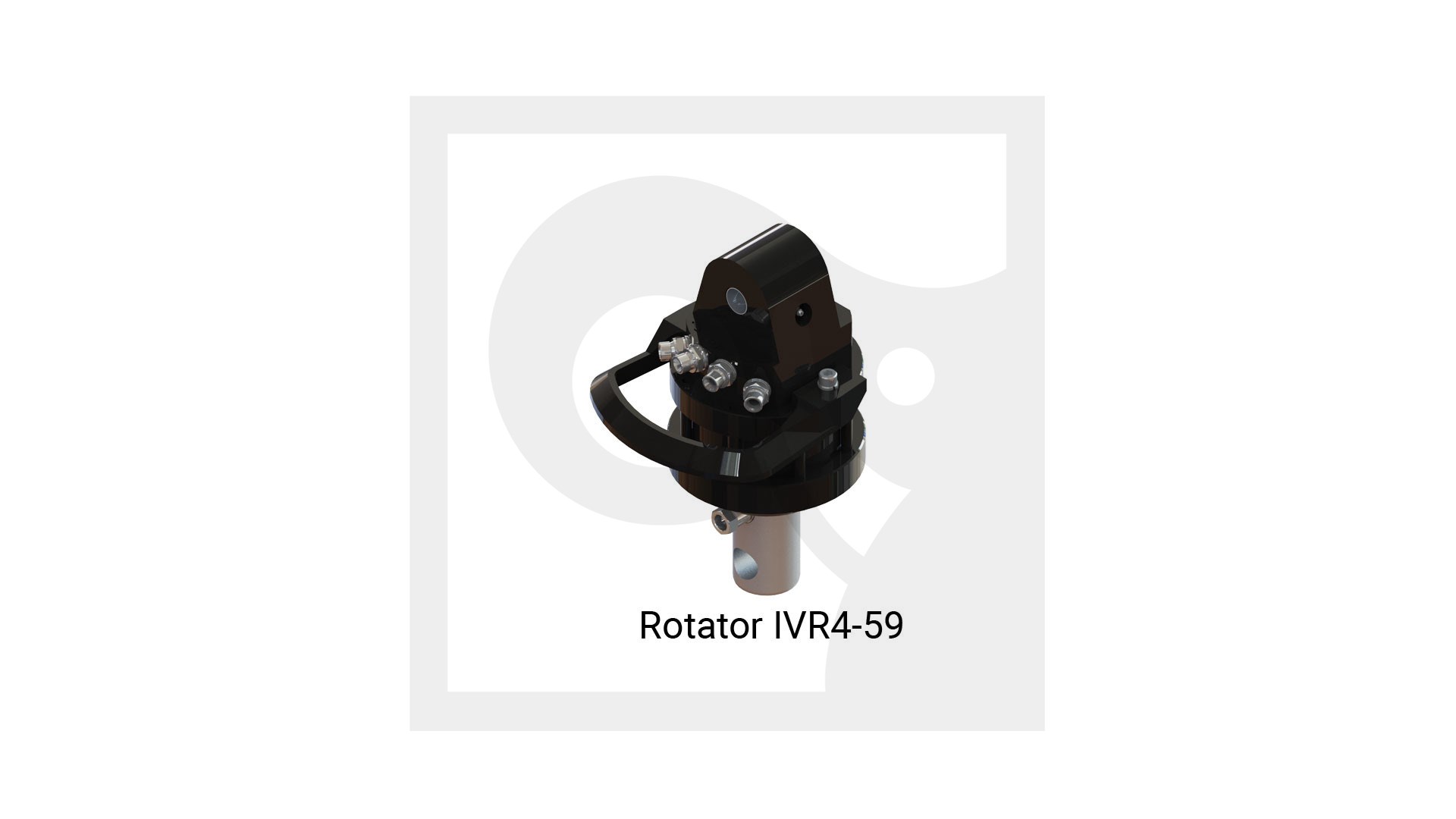

ROTATOR WITH LINK

Material number: 3394562
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

- Endless rotation
- High torque
- Optimised positioning performance
- Hose protection included
- Steel flange for increased durability

Attributes

Drive Type: wing
Height (mm): 489
Item Attachment Dimension: Ø 59 MM
Item Attachment Type: shaft
Max Load (kg): 4,500
Torque: 1,100
Weight (kg): 25
Width (mm): 172

Model specifications

Rotators	IVR4 - 59	IVR4 - FS
Item Part No	3394655	9874186
Drive Type	wing	wing
Height (mm)	350	307
Item Attachment Dimension	Ø 59 MM	o 4 x 140 MM
Item Attachment Type	shaft	flange
Max Load (kg)	4,500	4,500
Torque	1,100	1,100
Weight (kg)	23.5	28
Width (mm)	172	172
Detail	Variant detail	Variant detail

Buy as package

	IVR4 - 59 WITH LINK 45/80	IVR4 - FS WITH LINK 45/80
Item Part No	3394562	3382265
Drive Type	wing	wing
Height (mm)	489	446
Item Attachment Dimension	Ø 59 MM	o 4 x 140 MM
Item Attachment Type	shaft	flange
Max Load (kg)	4,500	4,500
Torque	1,100	1,100
Weight (kg)	25	25
Width (mm)	172	172
Detail	Current variant	Variant detail
