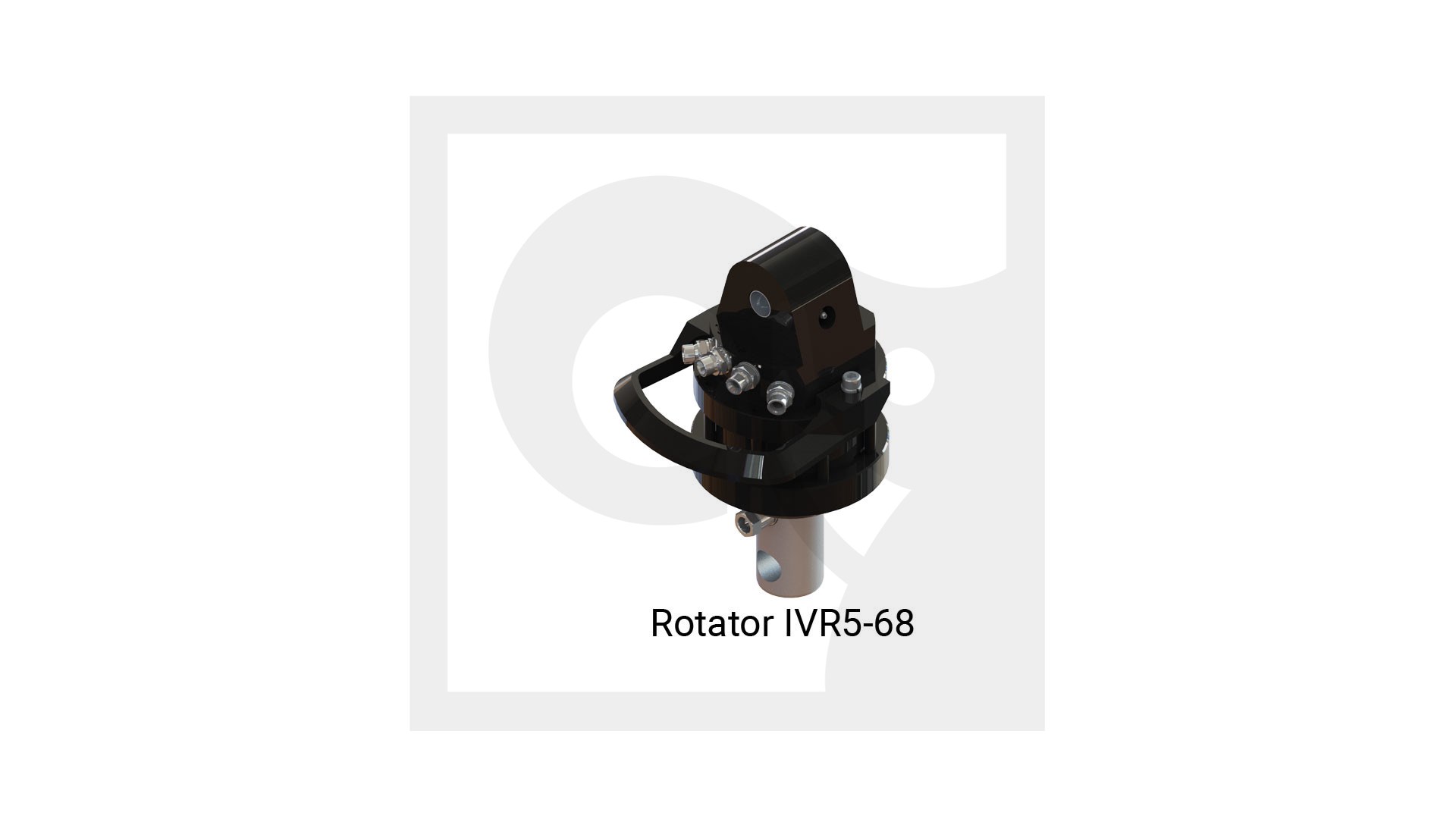

ROTATOR

Material number: 3394563
Product line: Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

- Endless rotation
- High torque
- Optimised positioning performance
- Hose protection included

Attributes

Drive Type: wing
Height (mm): 490
Item Attachment Dimension: Ø 68 MM
Item Attachment Type: shaft
Max Load (kg): 5,500
Torque: 1,100
Weight (kg): 25
Width (mm): 172

Model specifications

Rotators	IVR5 - 68	IVR5 - 69	IVR5 - F
Item Part No	3394656	3394657	9874178
Drive Type	wing	wing	wing
Height (mm)	351	351	312
Item Attachment Dimension	Ø 68 MM	Ø 69 MM	o 4 x 140 MM
Item Attachment Type	shaft	shaft	flange
Max Load (kg)	5,500	5,500	5,500
Torque	1,100	1,100	1,100
Weight (kg)	24	24	29
Width (mm)	172	172	172
Detail	Variant detail	Variant detail	Variant detail

Buy as package

	IVR5 - 68 WITH LINK 45/80	IVR5 - 69 WITH LINK 45/80	IVR5 - F WITH LINK 45/80
Item Part No	3394563	3394564	3382273
Drive Type	wing	wing	wing
Height (mm)	490	490	451
Item Attachment Dimension	Ø 68 MM	Ø 69 MM	o 4 x 140 MM
Item Attachment Type	shaft	shaft	flange
Max Load (kg)	5,500	5,500	5,500
Torque	1,100	1,100	1,100
Weight (kg)	25	25	25
Width (mm)	172	172	172
Detail	Current variant	Variant detail	Variant detail
