TINE GRAPPLE KM 652-4-250

Material number: 9849688
Product line: Accessories

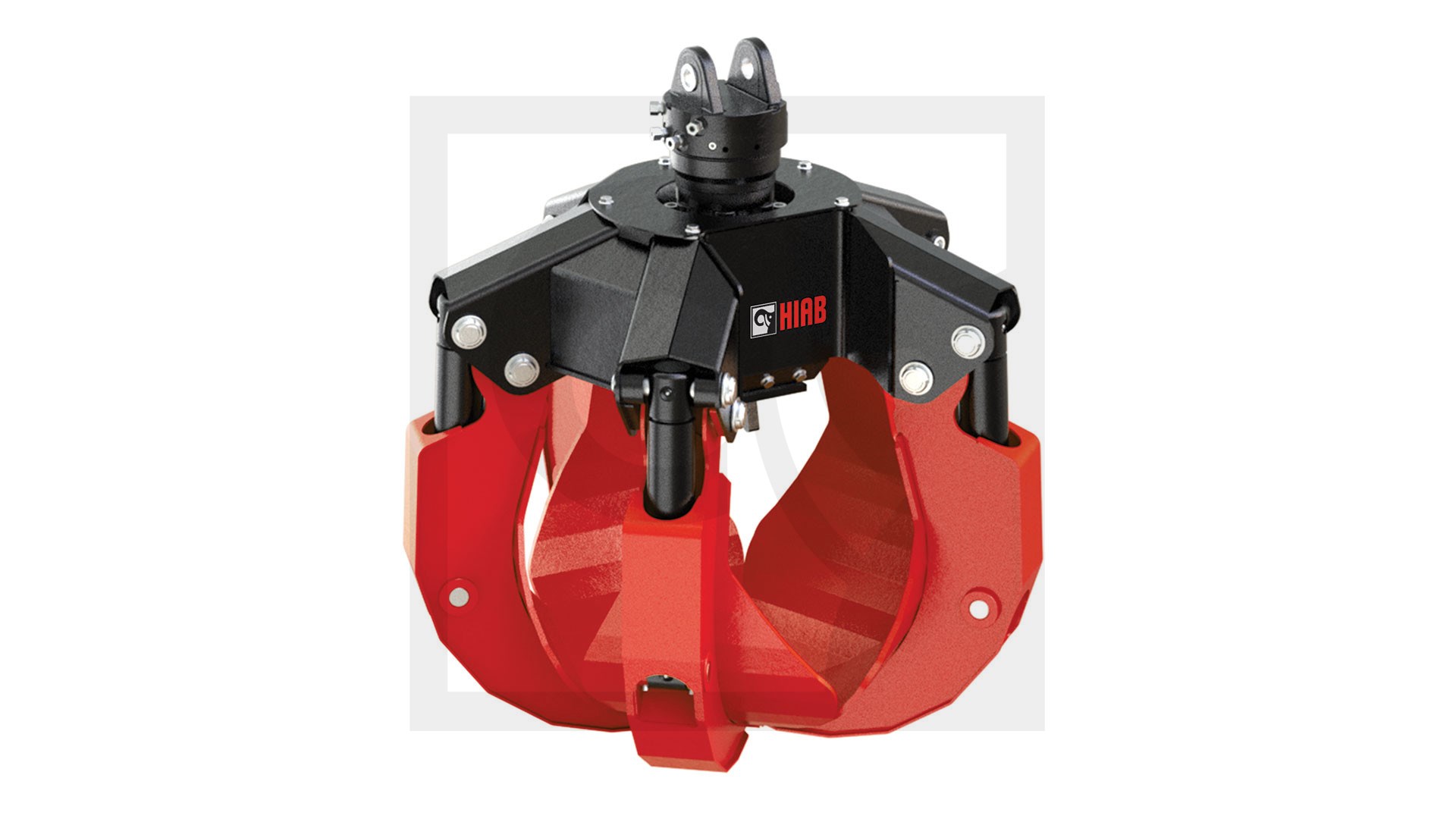

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab accessories are designed to help you to perform your daily job faster and easier.

Attributes

Closing Force: 18
Height (mm): 920
Item Attachment Dimension: o 4 x 140 MM, Ø 6 x 173
Max Load (kg): 2,500
Number Of Teeth: 4
Volume Max (liters): 250
Weight (kg): 425
Width (mm): 1,285

Downloads

KM 652 5-2 ME-MD.pdf

Model specifications

Grapples	KM652 -5-500	KM652 4-250	KM652 4-350	KM652 - 5-250	KM652 - 5-350	KM 652 - 4-500
Item Part No	9849734	9849688	9849696	9849718	9849726	9849700
Closing Force	13	18	16	18	16	13
Height (mm)	1,255	920	1,020	920	1,020	1,255
Item Attachment Dimension	o 4 x 140 MM, Ø 6 x 173	o 4 x 140 MM, Ø 6 x 173	o 4 x 140 MM, Ø 6 x 173	o 4 x 140 MM, Ø 6 x 173	o 4 x 140 MM, Ø 6 x 173	o 4 x 140 MM, Ø 6 x 173
Max Load (kg)	3,000	2,500	3,000	2,500	3,000	3,000
Number Of Teeth	5	4	4	5	5	4
Volume Max (liters)	500	250	350	250	350	500
Weight (kg)	595	425	440	505	520	505
Width (mm)	1,320	1,285	1,260	1,285	1,260	1,320
Detail	Variant detail	Current variant	Variant detail	Variant detail	Variant detail	Variant detail
