BRICK STACK GRAPPLE KM 331 - 1300

Material number
9854495
Product line
Accessories

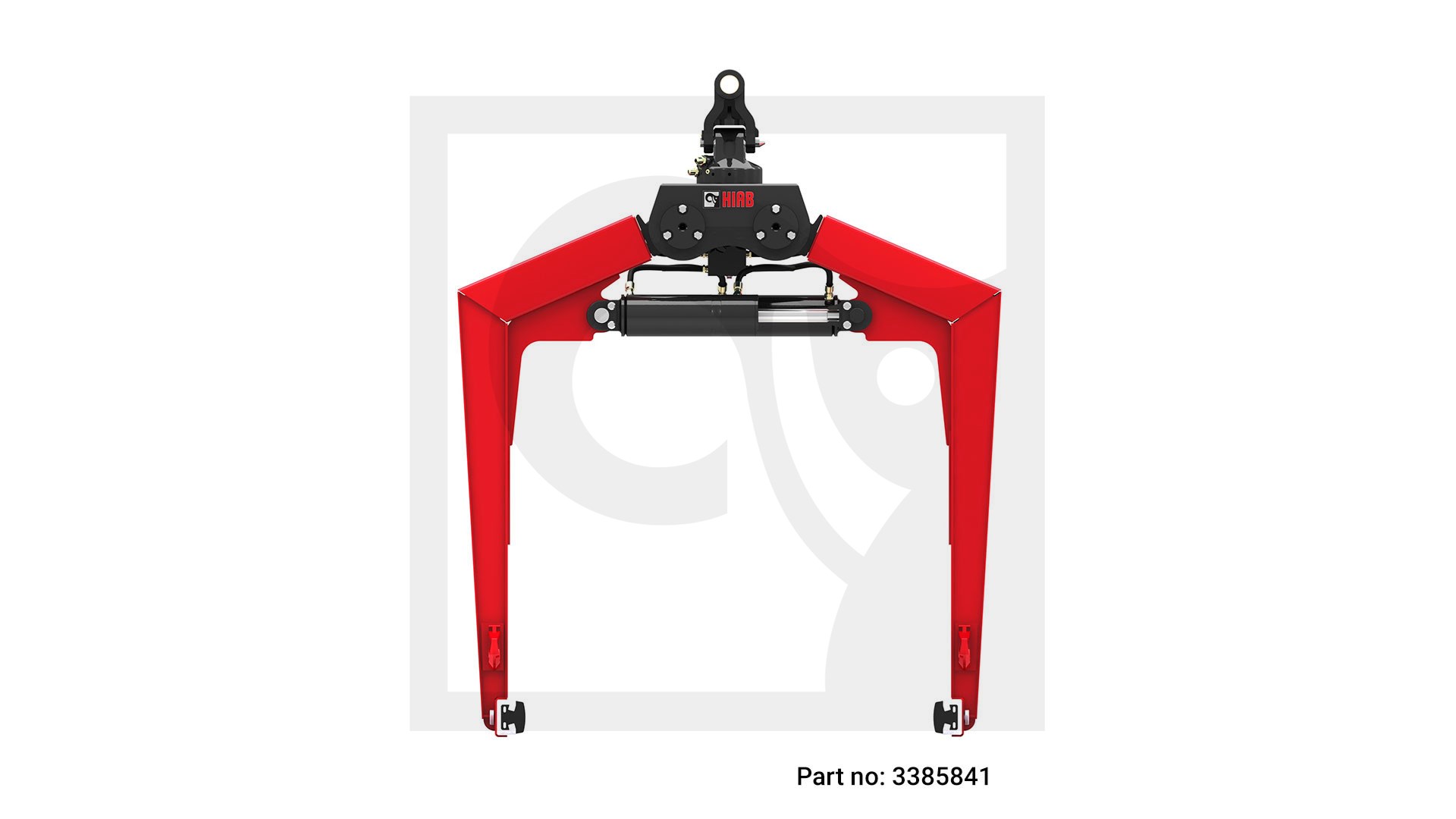

Product images shown are for illustration purpose only. The actual product may vary.

Description

Fixed plunge depth with pivot clamping arms - hydraulically operated.

Versatile tool with opening range of 40 mm to 1500 mm i.e. for handling of single concrete products like curbstones, or handling of palletized brick packs.

Synchronised function of clamping arms due to sturdy gear-toothed quadrants.

Safety through internal pressure relief valve (independent from crane pressure) and holding valve (safe clamping force at pressure drop).

Reduced overall height in comparison to the plunge depth due to lower rotator position.

Compression rails with durable and replaceable rubber inserts.

Attributes

Height (mm)
1,755
Item Attachment Dimension
o 4 x 140 MM
Max Load (kg)
1,600
Opening Max
40 - 1500
Plunge Depth
1,300
Weight (kg)
270
Width (mm)
500

Downloads

Model specifications

Brick grabs

KM331-1000
KM331 - 1100
KM331 - 1200
KM331 - 1300
Item Part No
9854461
9854479
9854487
9854495
Height (mm)
1,455
1,555
1,655
1,755
Item Attachment Dimension
o 4 x 140 MM
o 4 x 140 MM
o 4 x 140 MM
o 4 x 140 MM
Max Load (kg)
2,000
2,000
1,800
1,600
Opening Max
220 - 1420
160 - 1450
100 - 1475
40 - 1500
Plunge Depth
1,000
1,100
1,200
1,300
Weight (kg)
255
260
265
270
Width (mm)
500
500
500
500
Detail
Variant detail
Variant detail
Variant detail
Current variant
