BUCKET KM 602-1000

Model specifications

Buy as package

• Package 1

  Package include clamshell bucket, rotator KM 04 S69-30, hose kit KM 203 01, short link KM 501S-4t, adapter KM 502

  Item Part No
  Closing Force
  Number Of Teeth
  Opening Max
  Volume Max (liters)
  Weight (kg)
  Width (mm)
  Detail

  	KM602-300 WF	KM602-300 WS	KM602-400 WF	KM602-400 WS	KM602-500 WF	KM602-500WS	KM602-650 WF	KM602-650 WS	KM602-1000 WF	KM602-1000 WS
  Item Part No	3380050	3387623	3380068	3387631	3380076	3387640	3380084	3387658	3380092	3387666
  Closing Force	23	23	28	23	28	23	28	23	28	23
  Number Of Teeth	9	9	9	9	9	9	9	9	9	9
  Opening Max	1830	1830	1830	1830	1830	1830	1830	1830	1830	2190
  Volume Max (liters)	300	300	400	400	500	500	650	650	1,000	1,000
  Weight (kg)	455	360	490	425	535	465	595	515	725	585
  Width (mm)	500	500	800	800	1,000	1,000	1,200	1,200	1,200	1,200
  Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail
• Package 8

  Packages included high volume clamshell bucket, wear plates and hook set (2 pcs)

  Item Part No
  Closing Force
  Drive Type
  Load Height Max
  Max Load (kg)
  Number Of Teeth
  Opening Max
  Volume Max (liters)
  Weight (kg)
  Width (mm)
  Detail

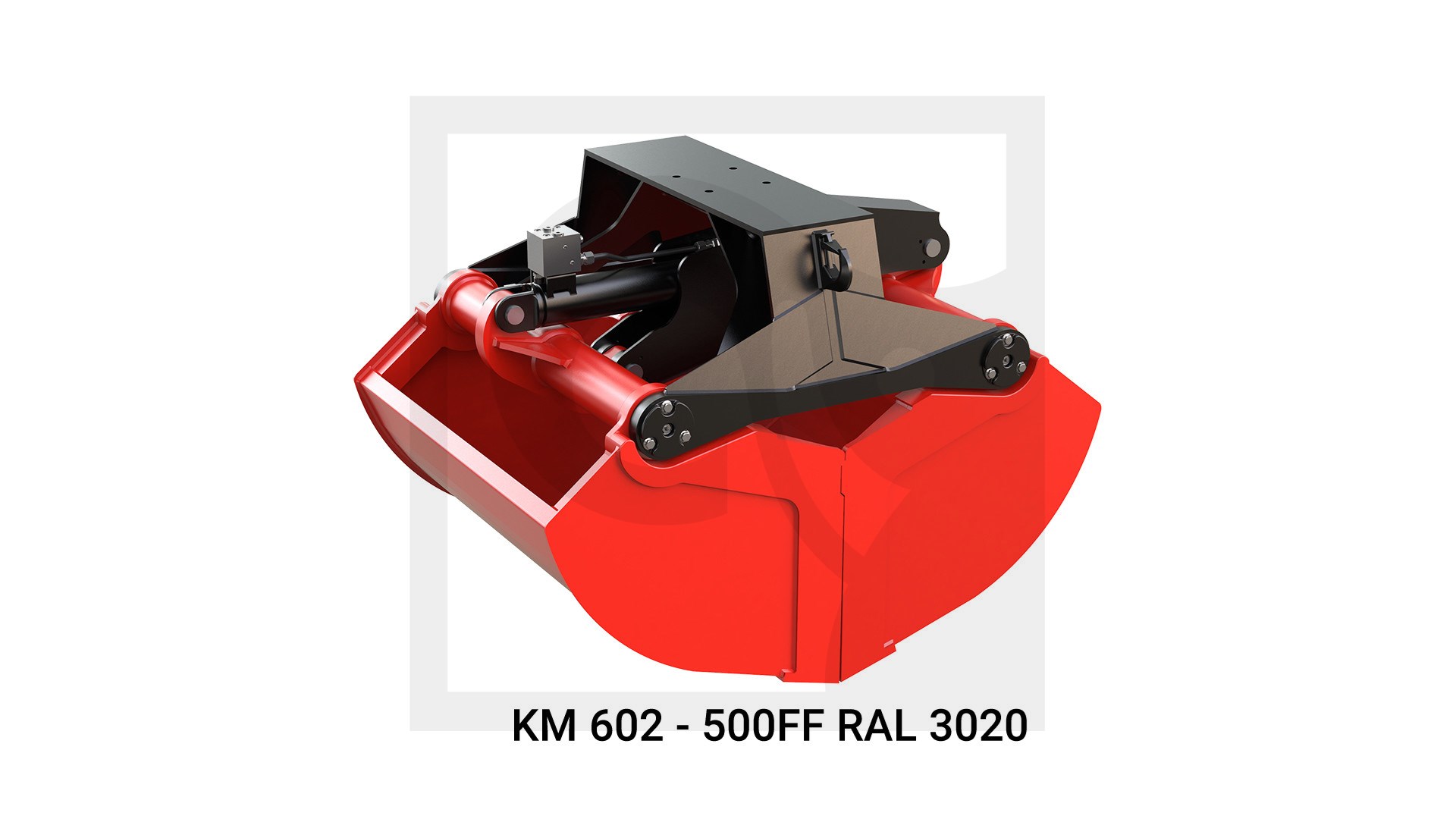

  	KM 602 - 500 FF - RAL3020
  Item Part No	462-1047
  Closing Force	20
  Drive Type	cylinder
  Load Height Max	970
  Max Load (kg)	3,000
  Number Of Teeth	9
  Opening Max	1830
  Volume Max (liters)	500
  Weight (kg)	465
  Width (mm)	1,000
  Detail	Variant detail
