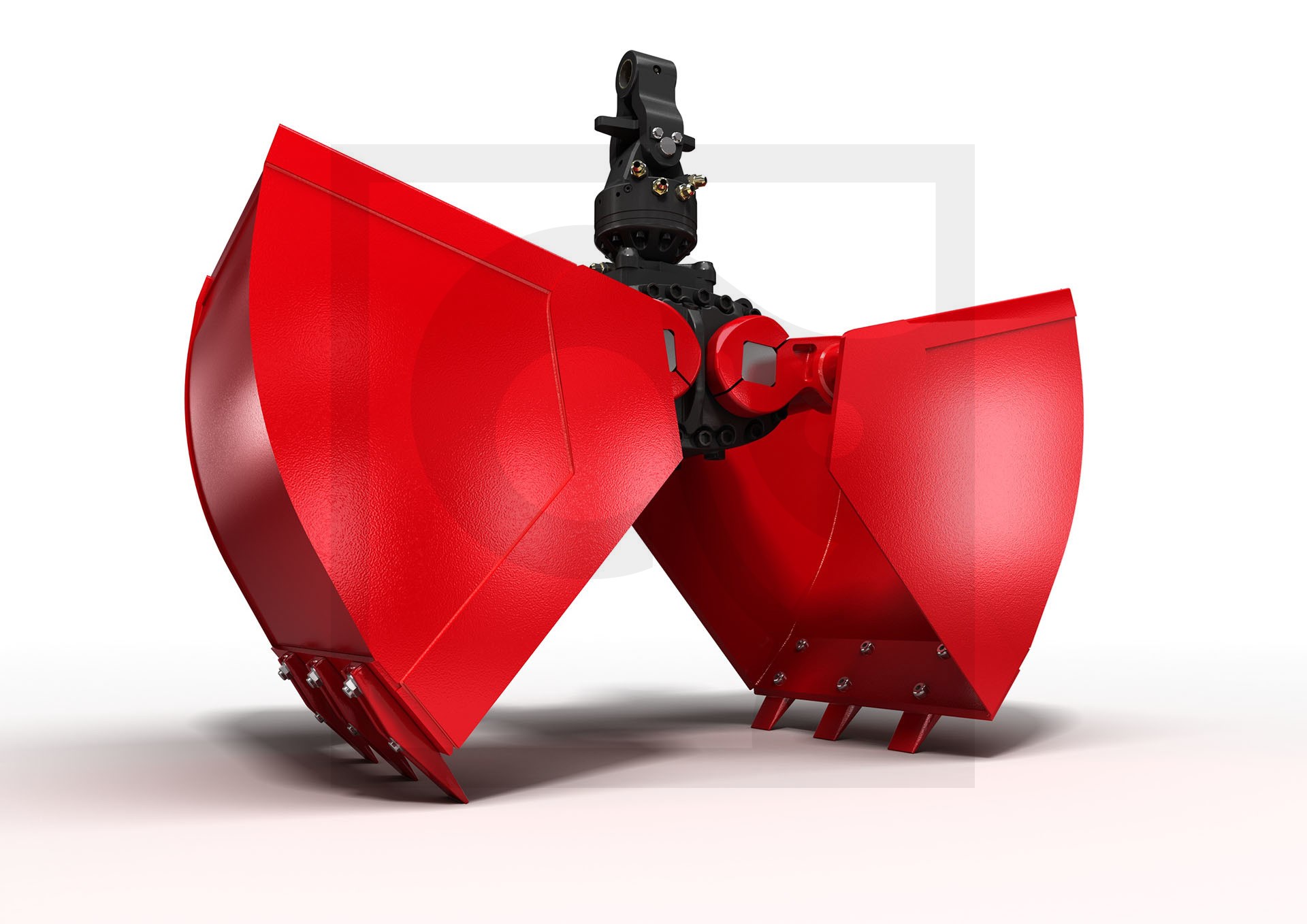

BUCKET KM 604 HPX-450 WF

Buy as package

• Package 3

  Package include clamshell bucket, rotator KM 04 S69-30, hose kit KM 203-01, long link KM 501L-4t, adapter KM 502, plug-kit, HPX drive & teeth

  Item Part No
  Closing Force
  Height (mm)
  Number Of Teeth
  Opening Max
  Volume Max (liters)
  Weight (kg)
  Width (mm)
  Detail

  	KM 604 HPX 200 WS	KM 604 HPX 250 WS	KM 604 HPX 325 WS	KM 604 HPX 350 WS	KM 604 HPX 450 WS
  Item Part No	3381935	3381943	3381951	3381960	3381978
  Closing Force	19	19	19	19	19
  Height (mm)					1,075
  Number Of Teeth	4	4	6	6	6
  Opening Max	1390	1390	1390	1390	1390
  Volume Max (liters)	200	250	325	350	450
  Weight (kg)	295	310	325	330	345
  Width (mm)	400	500	600	650	800
  Detail	Variant detail	Variant detail	Variant detail	Variant detail	Variant detail
• Package 4

  Package include clamshell bucket, rotator KM 04 F140-30V, long link KM 501L-4t, HPX-drive & teeth

  Item Part No
  Closing Force
  Height (mm)
  Number Of Teeth
  Opening Max
  Volume Max (liters)
  Weight (kg)
  Width (mm)
  Detail

  	KM 604 HPX 200 WF	KM 604 HPX 250 WF	KM 604 HPX 325 WF	KM 604 HPX 350 WF	KM 604 HPX 450 WF
  Item Part No	3381803	3381811	3381820	3381838	3381846
  Closing Force	19	19	19	19	19
  Height (mm)		1,020	1,020	1,020	1,020
  Number Of Teeth	4	4	6	6	6
  Opening Max	1390	1390	1390	1390	1390
  Volume Max (liters)	200	250	325	350	450
  Weight (kg)	290	305	320	325	340
  Width (mm)	400	500	600	650	800
  Detail	Variant detail	Variant detail	Variant detail	Variant detail	Current variant
• Package 9

  Packages included high volume clamshell bucket, rotator KM04 F140-30V, link KM501L-4t, hoses KM203 03

  Item Part No
  Closing Force
  Drive Type
  Load Height Max
  Max Load (kg)
  Number Of Teeth
  Opening Max
  Volume Max (liters)
  Weight (kg)
  Width (mm)
  Detail

  	KM 604HPX - 250ZP
  Item Part No	339-6198
  Closing Force	19
  Drive Type	hpx
  Load Height Max	1,240
  Max Load (kg)	3,000
  Number Of Teeth	4
  Opening Max	1390
  Volume Max (liters)	250
  Weight (kg)	295
  Width (mm)	500
  Detail	Variant detail
• Package 10

  Packages included high volume clamshell bucket, rotator KM04 F140-30V, link KM501L-4t, hoses KM203 03, HPX extension 250 MM

  Item Part No
  Closing Force
  Drive Type
  Load Height Max
  Max Load (kg)
  Number Of Teeth
  Opening Max
  Volume Max (liters)
  Weight (kg)
  Width (mm)
  Detail

  	KM 604 HPX - 250 TBS
  Item Part No	339-6199
  Closing Force	19
  Drive Type	hpx
  Load Height Max	1,490
  Max Load (kg)	3,000
  Number Of Teeth	4
  Opening Max	1390
  Volume Max (liters)	250
  Weight (kg)	330
  Width (mm)	500
  Detail	Variant detail
