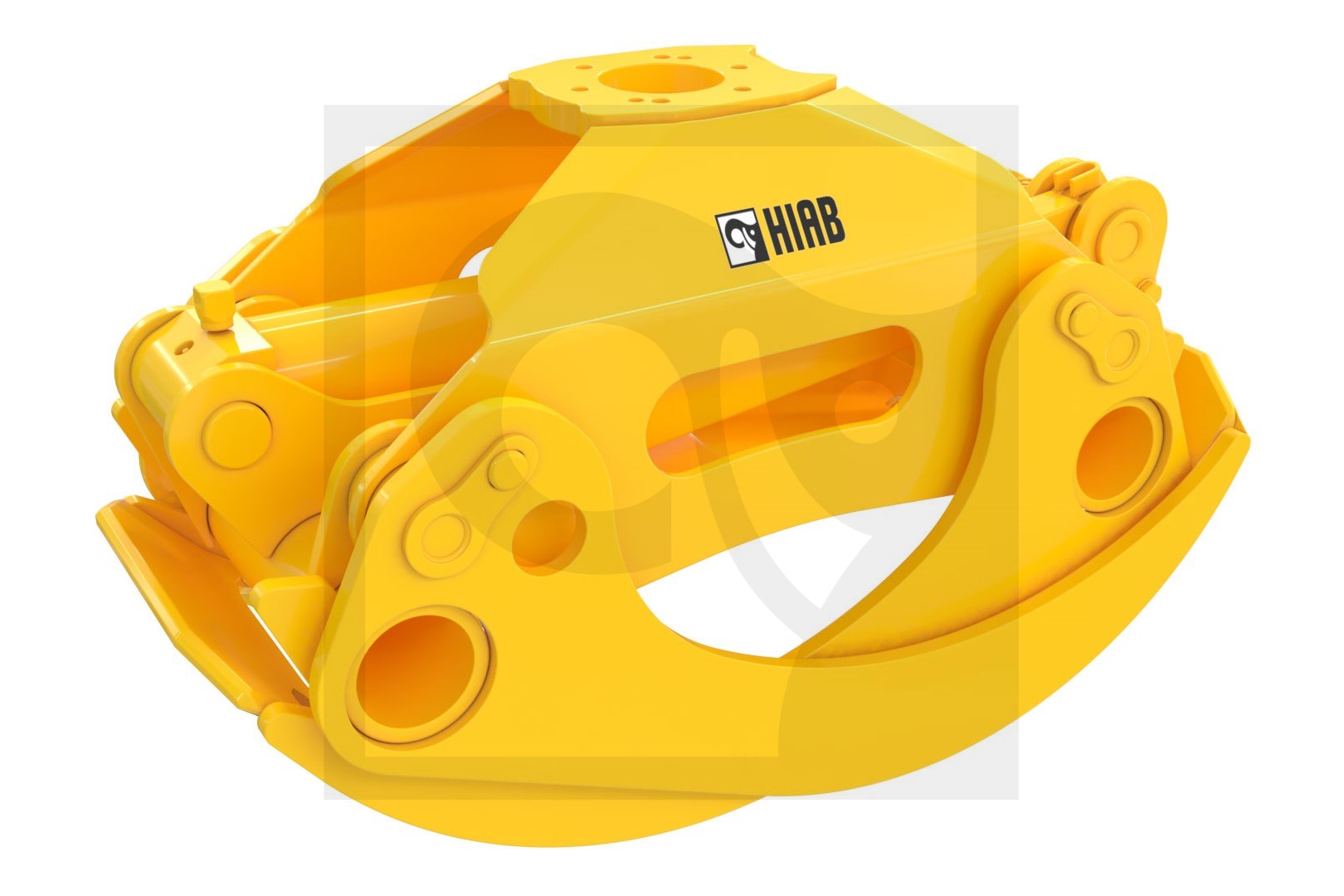

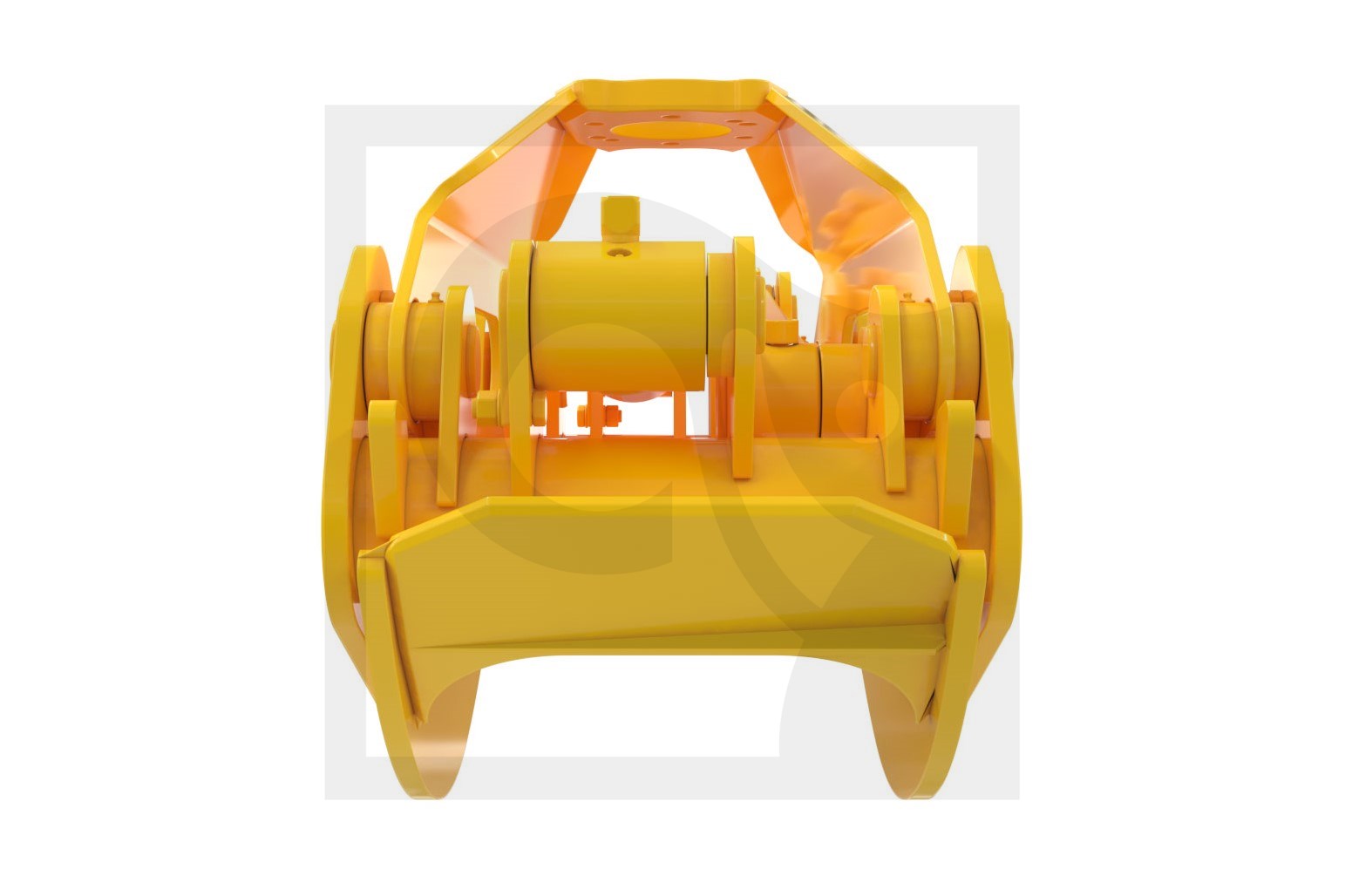

GRAPPLE TX56B

Material number
94290980
Product line
Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

Hiab accessories are designed to help you to perform your daily job faster and easier.

Additional information

Please note that this part is stored in an off-site warehouse and requires special handling. Same-day shipping is available for express orders placed before 1 PM CET.

Attributes

Closing Force
21.7
Max Load (kg)
9,000
Tine Spread (mm)
1975
Volume Max (liters)
0.5
Weight (kg)
345
Width (mm)
558

Model specifications

Log handling grapples

TX 56
TX 56B
TX 56B CV (with lock valve)
TX 56CV (with lock valve)
TX 86B
TX 86B CV (with lock valve)
TX 811B
TX 811B CV (with lock valve)
Item Part No
94290940
94290980
94290978
94290977
94290970
94290979
94290981
94290949
Closing Force
21.7
21.7
21.7
21.7
19.1
19.1
19.1
19.1
Max Load (kg)
9,000
9,000
9,000
9,000
9,000
9,000
9,000
9,000
Tine Spread (mm)
2010
1975
1975
2010
2260
2260
2260
2260
Volume Max (liters)
0.5
0.5
0.5
0.5
0.8
0.8
0.8
0.8
Weight (kg)
340
345
345
340
360
360
455
455
Width (mm)
558
558
558
558
558
558
1,000
1,000
