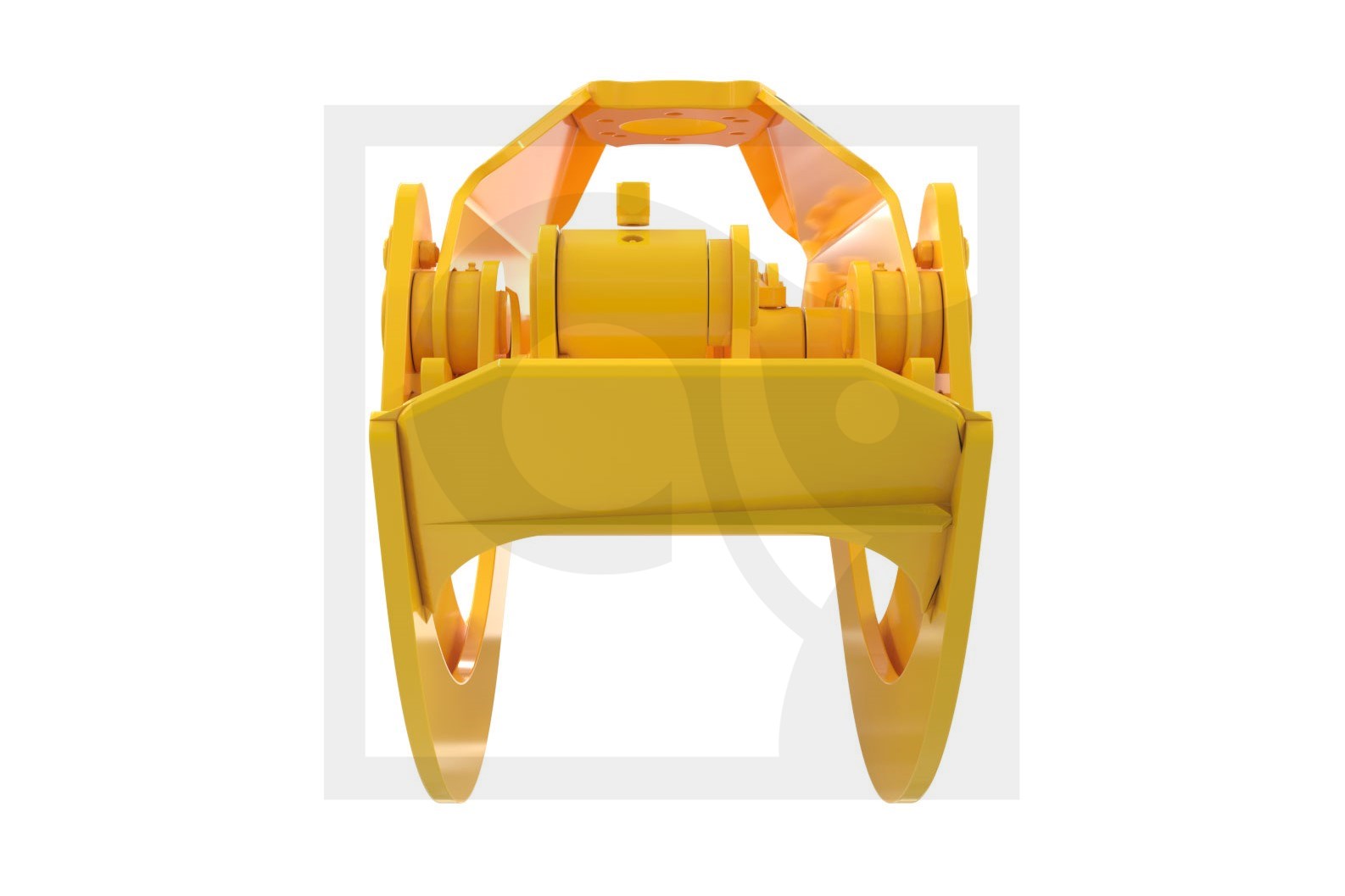

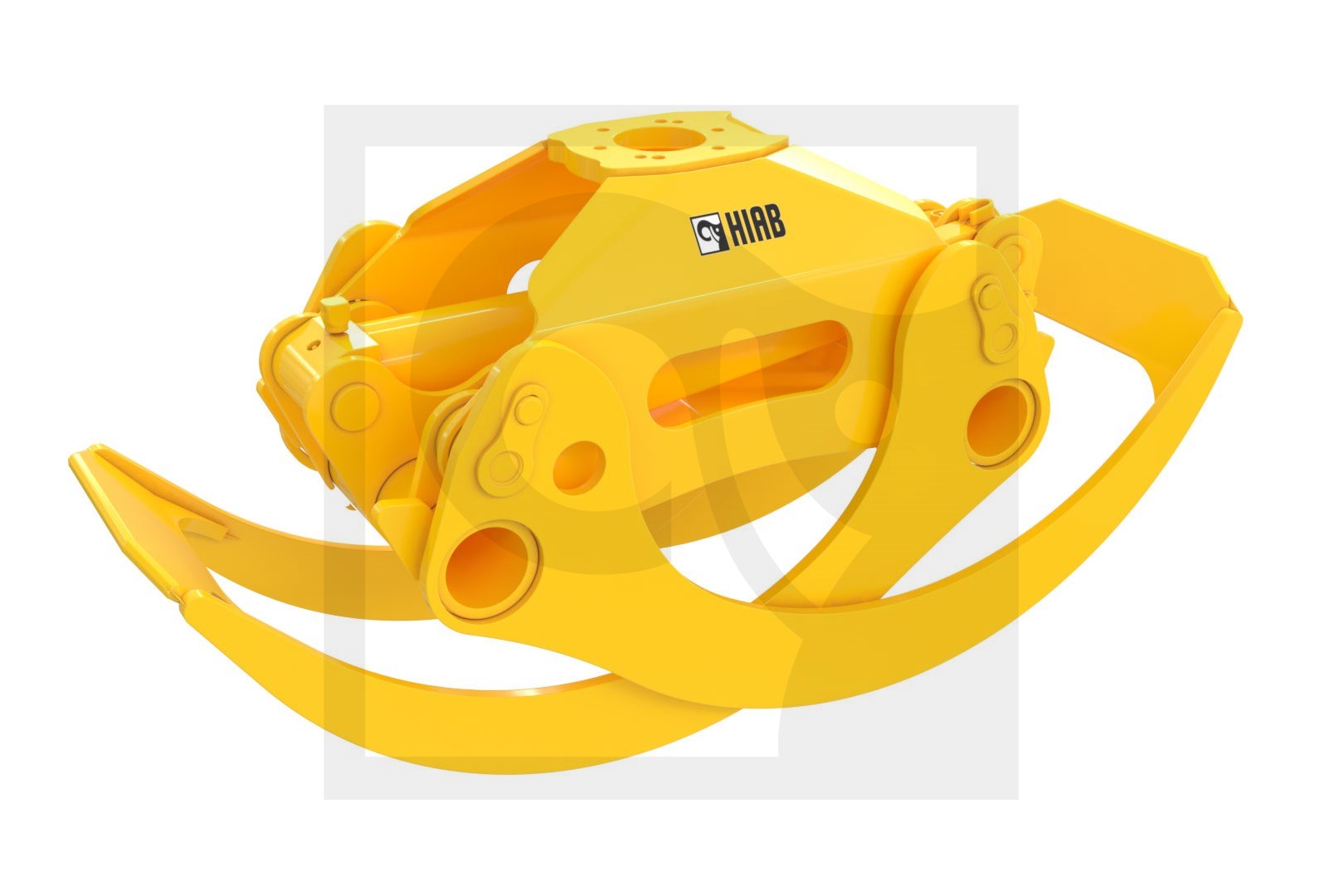

GRAPPLE TX86B

Material number
94290970
Product line
Accessories

Product images shown are for illustration purpose only. The actual product may vary.

Description

The TX56 is optimised for loading raw timber using heavy truck loaders, while the reinforced TX56B is also suitable for use on excavators. The heavy TX86B and the TX811B, with its wider jaws, can be installed on industrial cranes and excavators.

Attributes

Closing Force
19.1
Max Load (kg)
9,000
Tine Spread (mm)
2260
Volume Max (liters)
0.8
Weight (kg)
360
Width (mm)
558

Model specifications

Log handling grapples

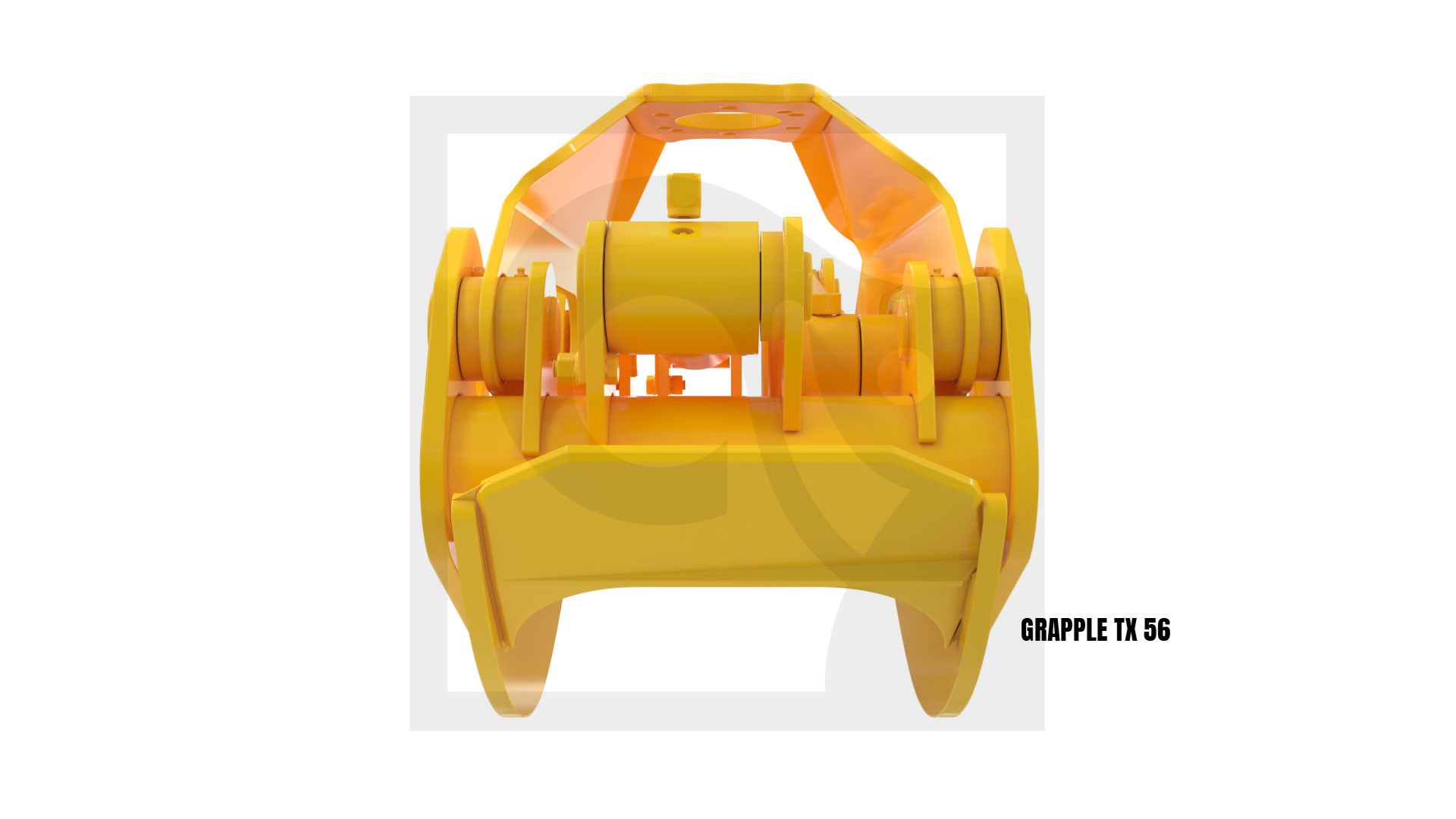

TX 56
TX 56B
TX 56B CV (with lock valve)
TX 56CV (with lock valve)
TX 86B
TX 86B CV (with lock valve)
TX 811B
TX 811B CV (with lock valve)
Item Part No
94290940
94290980
94290978
94290977
94290970
94290979
94290981
94290949
Closing Force
21.7
21.7
21.7
21.7
19.1
19.1
19.1
19.1
Max Load (kg)
9,000
9,000
9,000
9,000
9,000
9,000
9,000
9,000
Tine Spread (mm)
2010
1975
1975
2010
2260
2260
2260
2260
Volume Max (liters)
0.5
0.5
0.5
0.5
0.8
0.8
0.8
0.8
Weight (kg)
340
345
345
340
360
360
455
455
Width (mm)
558
558
558
558
558
558
1,000
1,000
Detail
Variant detail
Variant detail
Variant detail
Variant detail
Current variant
Variant detail
Variant detail
Variant detail
